IRF5801 Series
Manufacturer: INFINEON
Beta
⌘K

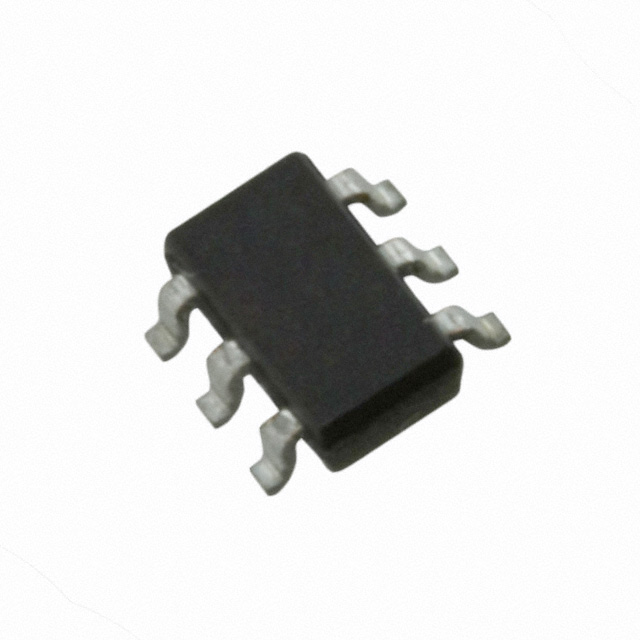

IR MOSFET™ N-CHANNEL SMALL POWER ; TSOP-6 PACKAGE; 2,2 OHM
| Part | Rds On (Max) @ Id, Vgs | Mounting Type | Vgs(th) (Max) @ Id | Drain to Source Voltage (Vdss) | Package / Case | Drive Voltage (Max Rds On, Min Rds On) | Supplier Device Package | Gate Charge (Qg) (Max) @ Vgs | FET Type | Operating Temperature [Max] | Operating Temperature [Min] | Input Capacitance (Ciss) (Max) @ Vds [Max] | Current - Continuous Drain (Id) @ 25°C | Vgs (Max) | Technology | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 2.2 Ohm | Surface Mount | 5.5 V | 200 V | SOT-23-6 Thin TSOT-23-6 | 10 V | Micro6™(TSOP-6) | 3.9 nC | N-Channel | 150 °C | -55 °C | 88 pF | 600 mA | 30 V | MOSFET (Metal Oxide) | 2 W |
