IKFW50 Series

Manufacturer: INFINEON

Catalog

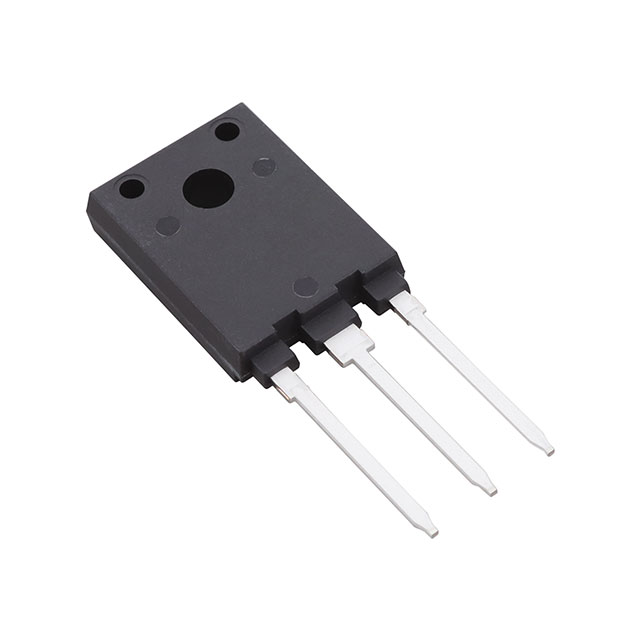

IGBT, 650V, 59A, 124W, HSIP247 ROHS COMPLIANT: YES

Part	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Collector (Ic) (Max) [Max]	IGBT Type	Mounting Type	Test Condition	Voltage - Collector Emitter Breakdown (Max) [Max]	Gate Charge	Switching Energy	Reverse Recovery Time (trr)	Vce(on) (Max) @ Vge, Ic	Td (on/off) @ 25°C	Supplier Device Package	Current - Collector Pulsed (Icm)	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic [Max]
INFINEON IKFW50N65EH5XKSA1	20 ns	138 ns	175 °C	-40 °C	TO-247-3	59 A	Trench Field Stop	Through Hole	15 V 15.1 Ohm 40 A 400 V	650 V	95 nC	1.2 mJ 400 µJ	52 ns	2.1 V
INFINEON IKFW50N60DH3EXKSA1			175 °C	-40 °C	TO-247-3	40 A	Trench Field Stop	Through Hole	8 Ohm 15 V 40 A 400 V	600 V	160 nC	1.28 mJ 560 µJ	64 ns	2.7 V	21 ns 174 ns	PG-TO247-3-AI	120 A	130 W
INFINEON IKFW50N65ES5XKSA1	19 ns	130 ns	175 °C	-40 °C	TO-247-3	74 A	Trench Field Stop	Through Hole	10 Ohm 15 V 40 A 400 V	650 V	95 nC	400 µJ 860 µJ	69 ns					127 W	1.7 V
