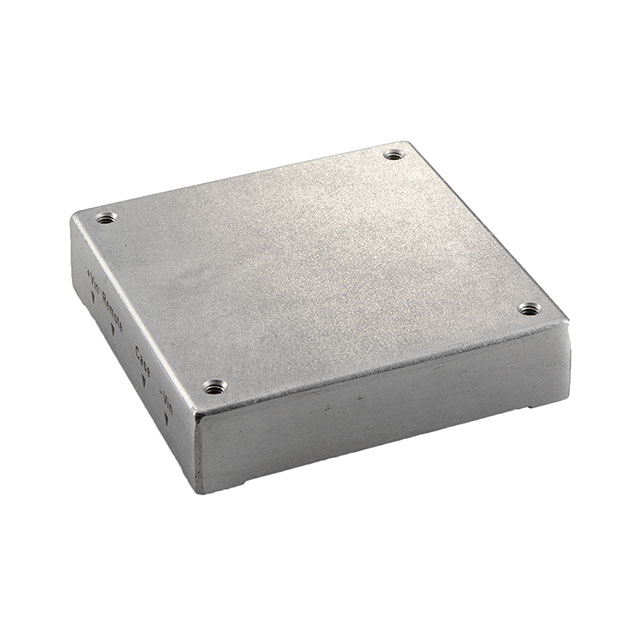

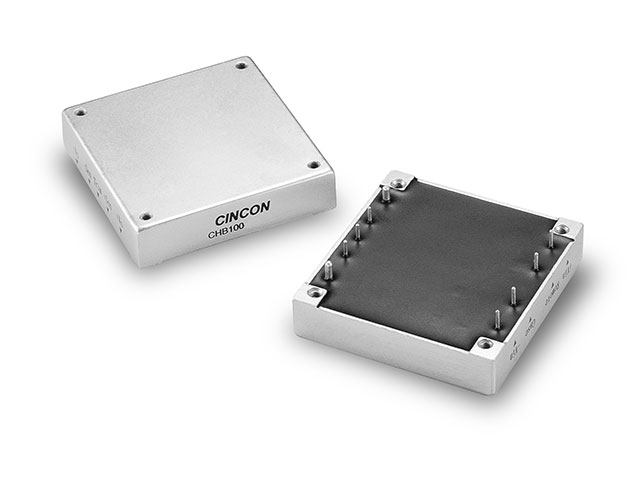

CHB100 Series

Isolated DC/DC Converters - Through Hole

Manufacturer: Cincon Electronics Co. LTD

Catalog

Isolated DC/DC Converters - Through Hole

Catalog

Isolated DC/DC Converters - Through Hole

Part	Voltage - Output 1	Voltage - Input (Max) [Max]	Power (Watts)	Number of Outputs	Voltage - Input (Min) [Min]	Applications	Type	Efficiency	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Current - Output (Max) [Max]	Supplier Device Package	Standard Number	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Features	Control Features	Input Type	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]
Cincon Electronics Co. LTD CHB100W-48S05-CM	5 V	75 V	100 W	1	18 V	ITE (Commercial)	Enclosed	86 %	1.5 kV	1.03 " 26.2 mm	2.54 in 64.6 mm	3.98 in 101.2 mm	Chassis Mount	-40 °C	100 °C	CE cURus	20 A
Cincon Electronics Co. LTD CHB100-24S15	15 V	36 V	101 W	1	18 V	ITE (Commercial)	Isolated Module	88 %	1.5 kV	12.7 mm	57.9 mm	61 mm	Through Hole	-40 °C	100 °C	CE cURus	6.7 A	Half Brick	60950-1	2.28 in	2.4 in	0.5 in	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable
Cincon Electronics Co. LTD CHB100W-48S24N	24 V	75 V	100 W	1	18 V	ITE (Commercial)	Isolated Module	89 %	1.5 kV	12.7 mm	57.9 mm	61 mm	Through Hole	-40 °C	100 °C	CE cURus	4.17 A	Half Brick	60950-1	2.28 in	2.4 in	0.5 in	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable
Cincon Electronics Co. LTD CHB100-48S15N	15 V	75 V	101 W	1	36 V	ITE (Commercial)	Isolated Module	89 %	1.5 kV	12.7 mm	57.9 mm	61 mm	Through Hole	-40 °C	100 °C	CE cURus	6.7 A	Half Brick	60950-1	2.28 in	2.4 in	0.5 in	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable
Cincon Electronics Co. LTD CHB100W-24S24N	24 V	36 V	100 W	1	9 V	ITE (Commercial)	Isolated Module	87.5 %	1.5 kV	12.7 mm	57.9 mm	61 mm	Through Hole	-40 °C	100 °C	CE cURus	4.17 A	Half Brick	60950-1	2.28 in	2.4 in	0.5 in	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable
Cincon Electronics Co. LTD CHB100W-24S24-DIN	24 V		100 W	1		ITE (Commercial)		87.5 %	1.5 kV	1.03 " 26.2 mm	2.54 in 64.6 mm	3.98 in 101.2 mm		-40 °C	100 °C	CE cURus	4.17 A							Adjustable Output Remote On/Off Remote Sense		DC	9 V	36 V
Cincon Electronics Co. LTD CHB100-24S15N	15 V	36 V	101 W	1	18 V	ITE (Commercial)	Isolated Module	88 %	1.5 kV	12.7 mm	57.9 mm	61 mm	Through Hole	-40 °C	100 °C	CE cURus	6.7 A	Half Brick	60950-1	2.28 in	2.4 in	0.5 in	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable
Cincon Electronics Co. LTD CHB100W-24S05N	5 V	36 V	100 W	1	9 V	ITE (Commercial)	Isolated Module	84.5 %	1.5 kV	12.7 mm	57.9 mm	61 mm	Through Hole	-40 °C	100 °C	CE cURus	20 A	Half Brick	60950-1	2.28 in	2.4 in	0.5 in	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable
Cincon Electronics Co. LTD CHB100W-24S05-DIN	5 V		100 W	1		ITE (Commercial)		84.5 %	1.5 kV	1.03 " 26.2 mm	2.54 in 64.6 mm	3.98 in 101.2 mm		-40 °C	100 °C	CE cURus	20 A							Adjustable Output Remote On/Off Remote Sense		DC	9 V	36 V
Cincon Electronics Co. LTD CHB100W-24S24	24 V	36 V	100 W	1	9 V	ITE (Commercial)	Isolated Module	87.5 %	1.5 kV	12.7 mm	57.9 mm	61 mm	Through Hole	-40 °C	100 °C	CE cURus	4.17 A	Half Brick	60950-1	2.28 in	2.4 in	0.5 in	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable
