A61F1C-P Series
Manufacturer: ODU
Beta
⌘K

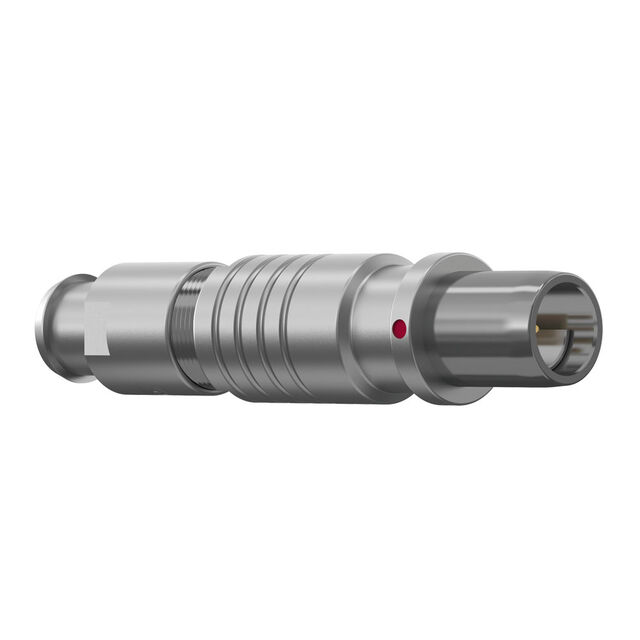

ODU MINI-SNAP BREAK-AWAY PLUG, S
| Part | Backshell Material, Plating | Shell Material | Orientation [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Number of Positions | Features | Applications | Shielding | Ingress Protection | Connector Type | Contact Material | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Shell Size - Insert | Primary Material | Mounting Type | Fastening Type | Shell Finish | Contact Finish - Mating | Material Flammability Rating | Color | Voltage Rating | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass Chrome over Nickel | Brass | 1 | 120 °C | -40 C | 7.5 A | 7 | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | Unshielded | IP68 - Dust Tight Waterproof | Plug Male Pins | Brass | 0.256 in | 0.276 " | 7 mm | 6.5 mm | 1 | Metal | Free Hanging (In-Line) | Push-Pull | Chrome over Nickel | Gold | UL94 V-0 | Silver | 333 V | Polyetheretherketone (PEEK) |
