MPXV4006 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
GAGE, PEIZORESISTIVE PRESSURE SENSOR, 0-0.87PSI, 5%, 0.26-4.86V, SQUARE, SURFACE MOUNT
| Part | Port Style | Voltage - Supply [Min] | Voltage - Supply [Max] | Output Type | Pressure Type | Maximum Pressure | Maximum Pressure | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Port Size | Port Size | Features | Mounting Type | Applications | Operating Pressure | Operating Pressure | Termination Style | Package / Case [x] | Package / Case [x] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Freescale Semiconductor - NXP | Barbless | 4.75 V | 5.25 V | Analog Voltage | Vented Gauge | 24 kPa | 3.48 PSI | 8-SMD Gull Wing Top Port | -10 °C | 60 °C | 3.17 mm | 0.13 " | Temperature Compensated | Surface Mount | Board Mount | 6 kPa | 0.87 PSI | Gull Wing | |||

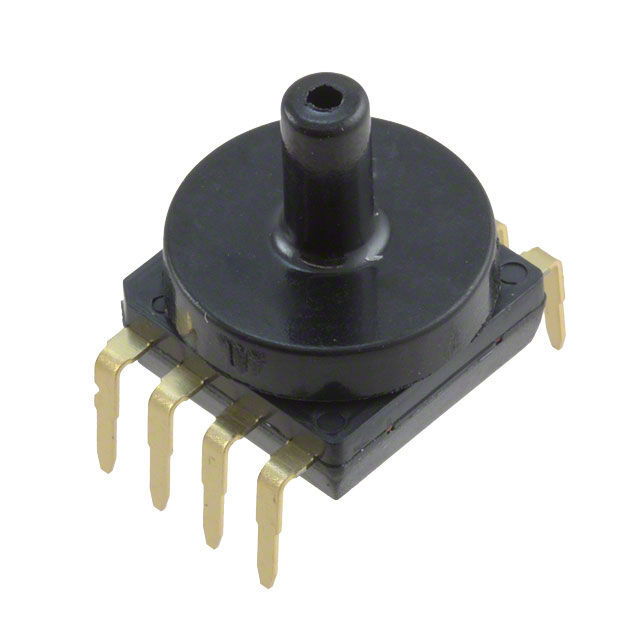

 Freescale Semiconductor - NXP | Barbless | 4.75 V | 5.25 V | Analog Voltage | Vented Gauge | 24 kPa | 3.48 PSI | 8-DIP Top Port | -10 °C | 60 °C | 3.17 mm | 0.13 " | Temperature Compensated | Through Hole | Board Mount | 6 kPa | 0.87 PSI | PC Pin | 0.55 in | 13.97 mm | 8-DIP |
