SS-74800 Series

Catalog

JACK MID-PLANE NO LED 1G

Part	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	LED Color	Contact Finish	Connector Type	Number of Positions/Contacts	Tab Direction	Termination	Mounting Type	Number of Ports	Contact Material	Orientation	Ratings	Shielding	Number of Rows
Bel Fuse Inc. SS-74800-145	Thermoplastic	85 °C	-40 C	50 µin	1.27 µm	Does Not Contain LED	Gold	Jack	8p8c (RJ45 Ethernet)	Up	Solder	Mid Mount Through Hole	1	Copper Alloy	90 °	Cat5e	EMI Finger Shielded	1

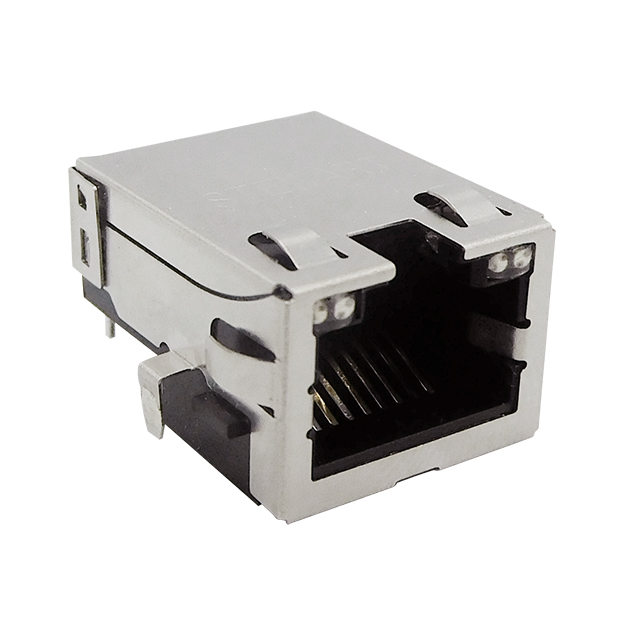

Bel Fuse Inc. SS-74800-146	Thermoplastic	85 °C	-40 C	50 µin	1.27 µm	Green Yellow	Gold	Jack	8p8c (RJ45 Ethernet)	Up	Solder	Mid Mount Through Hole	1	Copper Alloy	90 °	Cat5e	EMI Finger Shielded	1

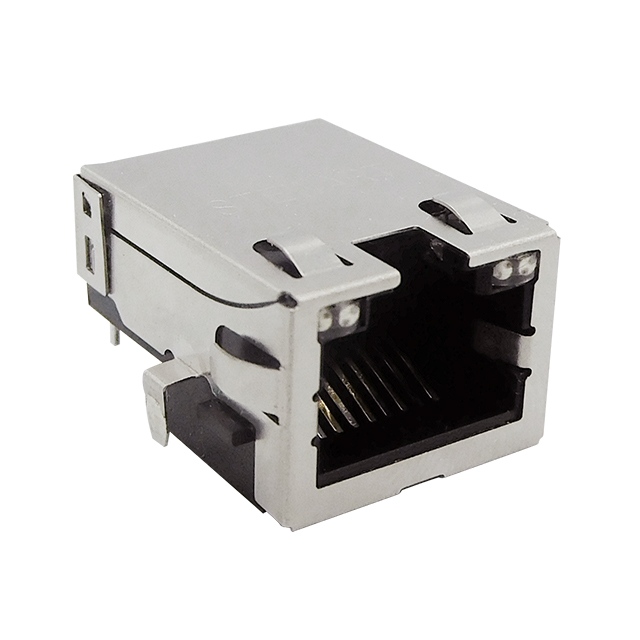

Bel Fuse Inc. SS-74800-143	Thermoplastic	85 °C	-40 C	50 µin	1.27 µm	Does Not Contain LED	Gold	Jack	8p8c (RJ45 Ethernet)	Up	Solder	Mid Mount Through Hole	1	Copper Alloy	90 °	Cat5e	EMI Finger Shielded	1

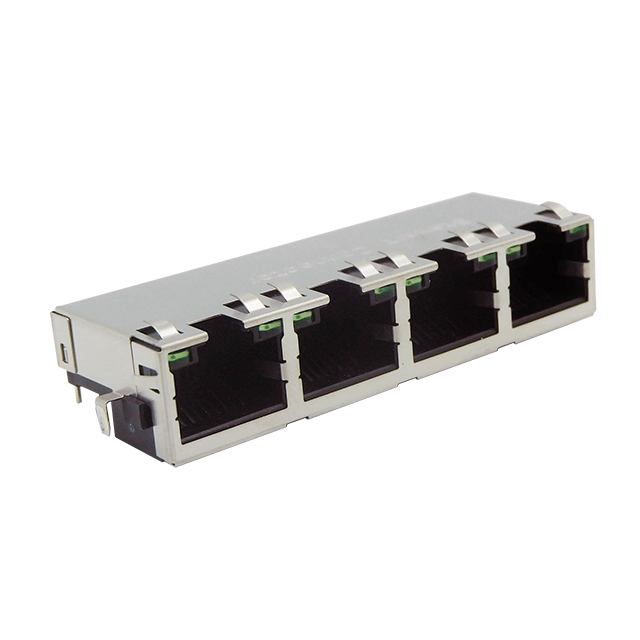

Bel Fuse Inc. SS-74800-125	Thermoplastic	85 °C	-40 C	30 Áin	0.76 Ám	Green - Green	Gold	Jack	8p8c (RJ45 Ethernet)	Up	Solder	Mid Mount Through Hole	4	Copper Alloy	90 °	Cat5e	EMI Finger Shielded	1

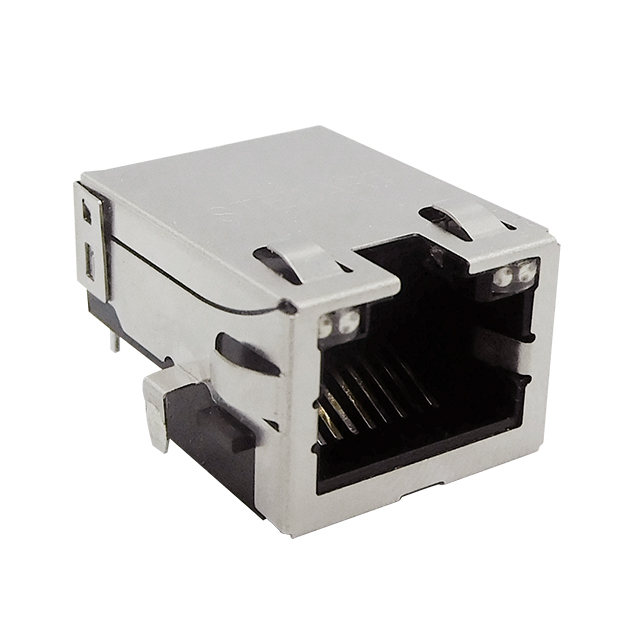

Bel Fuse Inc. SS-74800-139	Thermoplastic	85 °C	-40 C	50 µin	1.27 µm	Yellow - Green	Gold	Jack	8p8c (RJ45 Ethernet)	Up	Solder	Mid Mount Through Hole	1	Copper Alloy	90 °	Cat5e	EMI Finger Shielded	1

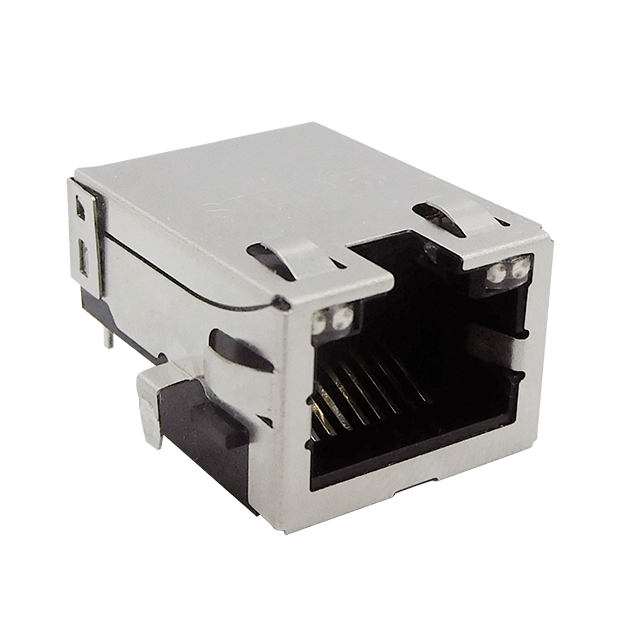

Bel Fuse Inc. SS-74800-142	Thermoplastic	85 °C	-40 C	50 µin	1.27 µm	Green Yellow	Gold	Jack	8p8c (RJ45 Ethernet)	Up	Solder	Mid Mount Through Hole	1	Copper Alloy	90 °	Cat5e	EMI Finger Shielded	1

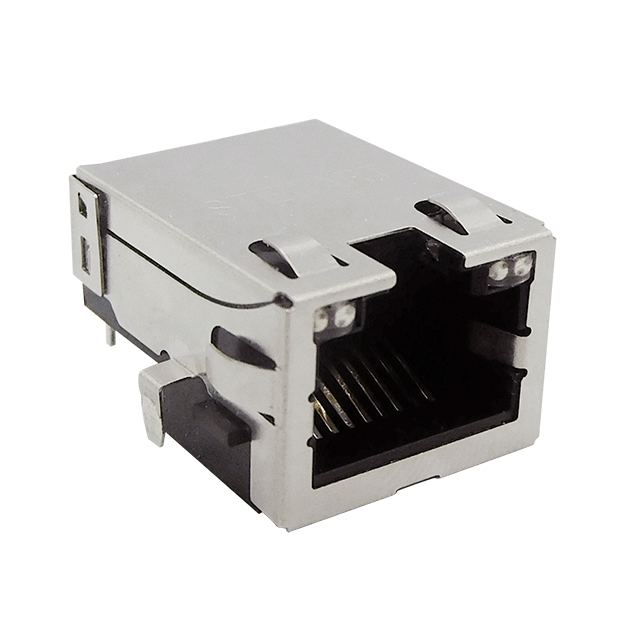

Bel Fuse Inc. SS-74800-144	Thermoplastic	85 °C	-40 C	50 µin	1.27 µm	Yellow - Green	Gold	Jack	8p8c (RJ45 Ethernet)	Up	Solder	Mid Mount Through Hole	1	Copper Alloy	90 °	Cat5e	EMI Finger Shielded	1
