TPS61054 Series

Catalog

IC LED DRV RGLTR PWM 10VSON

Part	Voltage - Output	Frequency	Applications	Voltage - Supply (Max) [Max]	Number of Outputs	Type	Topology	Voltage - Supply (Min) [Min]	Mounting Type	Dimming	Package / Case	Current - Output / Channel	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Supplied Contents	Features	Utilized IC / Part
Texas Instruments TPS61054DRCR	5.5 V	2 MHz	Camera Flash Lighting	6 V	1	DC DC Regulator	Step-Up (Boost)	2.5 V	Surface Mount	PWM	10-VFDFN Exposed Pad	700 mA	10-VSON (3x3)	85 °C	-40 °C
Texas Instruments TPS61054DRCT	5.5 V	2 MHz	Camera Flash Lighting	6 V	1	DC DC Regulator	Step-Up (Boost)	2.5 V	Surface Mount	PWM	10-VFDFN Exposed Pad	700 mA	10-VSON (3x3)	85 °C	-40 °C
Texas Instruments TPS61054YZGT	5.5 V	2 MHz	Camera Flash Lighting	6 V	1	DC DC Regulator	Step-Up (Boost)	2.5 V	Surface Mount	PWM	12-UFBGA DSBGA	700 mA	12-DSBGA	85 °C	-40 °C

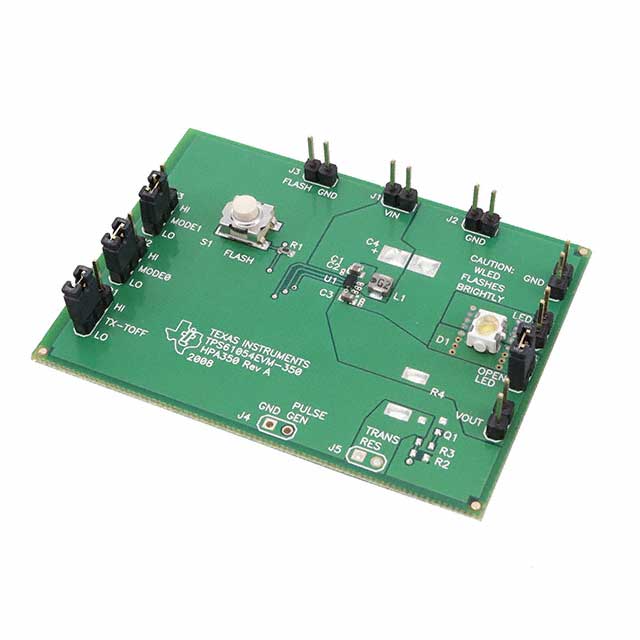

Texas Instruments TPS61054EVM-350	5.5 V											75 mA				6 V	2.5 V	1 Non-Isolated Output	Board(s)	Dimmable	TPS61054
