TSM9409 Series
Manufacturer: Taiwan Semiconductor Corporation
Beta
⌘K

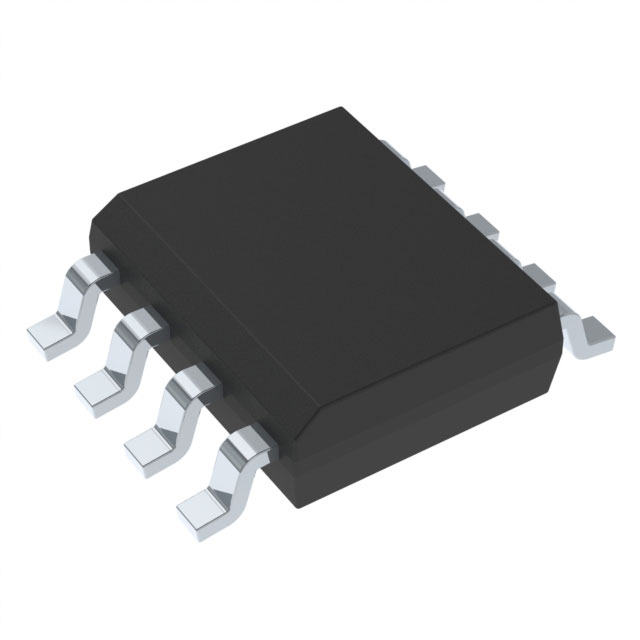

TRANS MOSFET P-CH 60V 3A 8-PIN SOP T/R
| Part | Vgs(th) (Max) @ Id | Mounting Type | Drain to Source Voltage (Vdss) | Technology | Supplier Device Package | Rds On (Max) @ Id, Vgs | Drive Voltage (Max Rds On, Min Rds On) | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Package / Case | Package / Case | Package / Case | Input Capacitance (Ciss) (Max) @ Vds | Current - Continuous Drain (Id) @ 25°C | FET Type | Operating Temperature [Max] | Operating Temperature [Min] | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Taiwan Semiconductor Corporation | 1 V | Surface Mount | 60 V | MOSFET (Metal Oxide) | 8-SOP | 155 mOhm | 4.5 V 10 V | 6 nC | 20 V | 0.154 in | 8-SOIC | 3.9 mm | 540 pF | 3.5 A | P-Channel | 150 °C | -55 °C | 3 W |
