726-050 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 50POS 0.125

Part	Material - Insulation	Termination Rows	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions	Gender	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Number of Positions/Bay/Row	Read Out	Termination	Color	Card Type	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 726-050-527-101	Polyester Thermoplastic	1	1	30 Áin	0.76 Ám	Gold	Through Hole	-40 C	105 ░C	Copper Alloy	50	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	50	Single	Press-Fit	Black	Non Specified - Single Edge

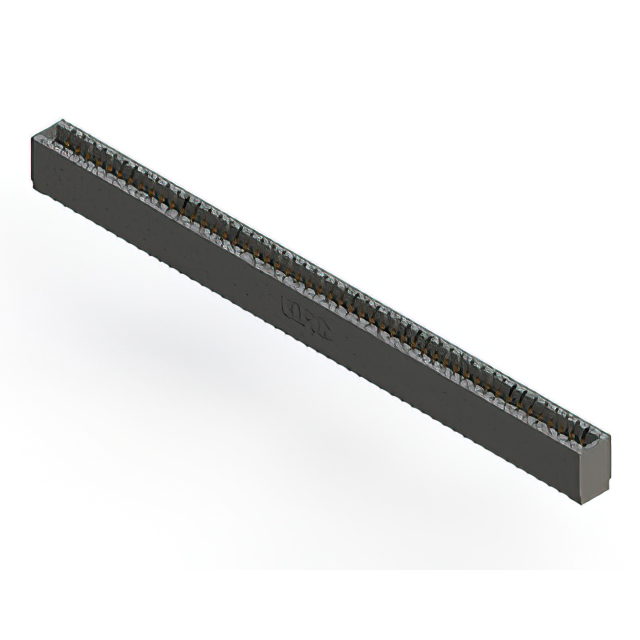

EDAC Inc. 726-050-520-101	Polyester Thermoplastic	1	1	30 Áin	0.76 Ám	Gold	Through Hole	-40 C	105 ░C	Copper Alloy	50	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	50	Single	Press-Fit	Black	Non Specified - Single Edge
EDAC Inc. 726-050-540-201	Polyester Thermoplastic			30 Áin	0.76 Ám	Gold	Through Hole	-40 C	105 ░C	Copper Alloy	50	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	25	Dual	Press-Fit Wire Wrap	Black	Non Specified - Dual Edge	2	2

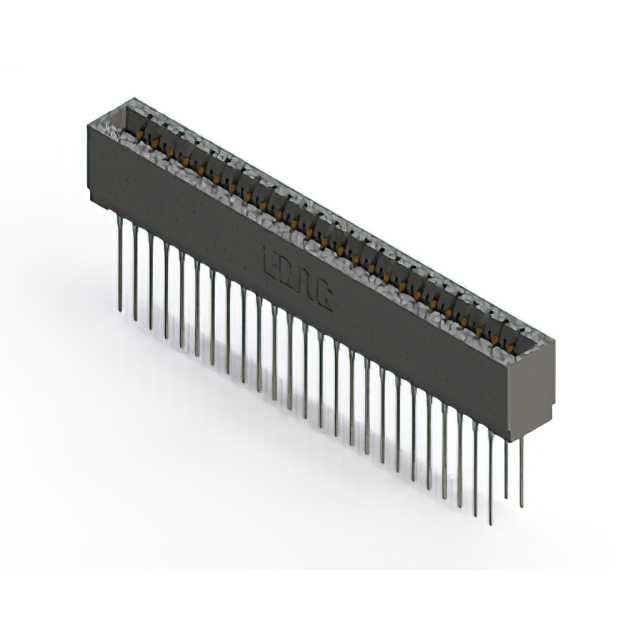

EDAC Inc. 726-050-553-201	Polyester Thermoplastic			30 Áin	0.76 Ám	Gold	Through Hole	-40 C	105 ░C	Copper Alloy	50	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	25	Dual	Press-Fit Wire Wrap	Black	Non Specified - Dual Edge	2	2
EDAC Inc. 726-050-520-201	Polyester Thermoplastic			30 Áin	0.76 Ám	Gold	Through Hole	-40 C	105 ░C	Copper Alloy	50	Female	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	25	Dual	Press-Fit	Black	Non Specified - Dual Edge	2	2
