D4S12H Series
Manufacturer: Rosenberger
Beta
⌘K
CONN HSD FAKRA PLUG STR 100OHM
| Part | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Finish | Mating Cycles | Body Material | Voltage Rating | Frequency - Max [Max] | Shield Termination | Mounting Type | Center Contact Material | Fastening Type | Connector Style | Contact Termination | Number of Ports | Housing Color | Connector Type | Impedance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Gold | -40 C | 105 ░C | Liquid Crystal Polymer (LCP) | Nickel | 25 | Brass | 100 V | 2 GHz | Solder | Through Hole | Brass | Latch Lock | Fakra HSD® Quadraxial | Solder | 1 | Black | Plug Male Pin | 100 Ohms | Code A |

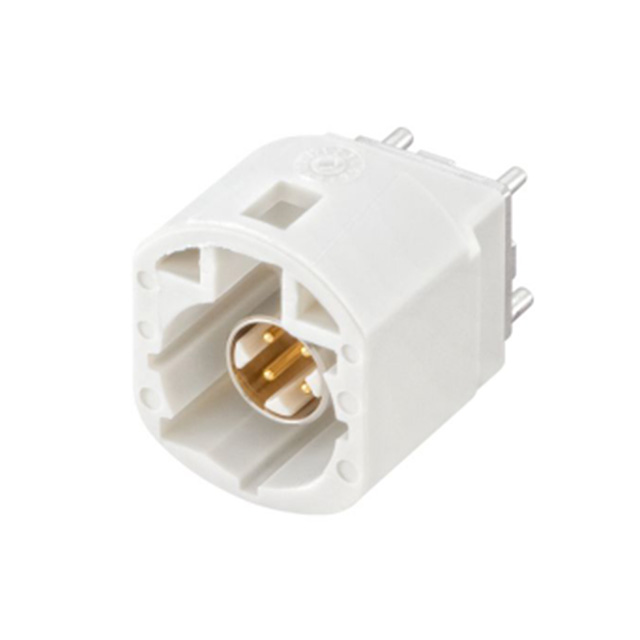

 Rosenberger | Gold | -40 C | 105 ░C | Liquid Crystal Polymer (LCP) | Nickel | 25 | Brass | 100 V | 2 GHz | Solder | Through Hole | Brass | Latch Lock | Fakra HSD® Quadraxial | Solder | 1 | White | Plug Male Pin | 100 Ohms | Code B |
