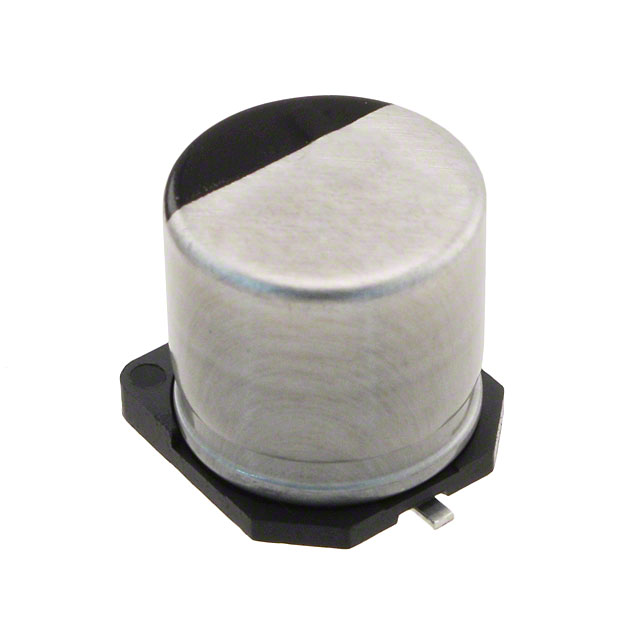

EEE-TP Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 680UF 20% 70V SMD

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Voltage - Rated	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Applications	Capacitance	Mounting Type	Package / Case	Ratings	Lifetime @ Temp.	Tolerance
Panasonic Industrial Automation Sales EEE-TP70681M	17 mm	0.669 in	95 mOhm	70 V	1.5 A	-55 °C	125 °C	2 A	0.709 "	18 mm	Polar	0.748 in	19 mm	19 mm	0.748 in	Automotive High Temperature Reflow	680 µF	Surface Mount	Radial Can - SMD	AEC-Q200	3000 Hrs	20 %
Panasonic Industrial Automation Sales EEE-TP1H751M	17 mm	0.669 in	80 mOhm	50 VDC	1.5 A	-55 °C	125 °C	2 A	0.63 in	16 mm	Polar	0.669 in	17 mm	17 mm	0.669 in	Automotive High Temperature Reflow	750 µF	Surface Mount	Radial Can - SMD	AEC-Q200	3000 Hrs	20 %
Panasonic Industrial Automation Sales EEE-TP1A471AP	10.2 mm	0.402 "		10 V	325 mA	-40 °C	125 °C	500 mA	0.394 in	10 mm	Polar	0.406 in	10.3 mm	10.3 mm	0.406 "	Automotive High Temperature Reflow	470 µF	Surface Mount	Radial Can - SMD	AEC-Q200	3000 Hrs	20 %
Panasonic Industrial Automation Sales EEE-TP1E272V	17 mm	0.669 in	45 mOhm	25 VDC	1.95 A	-55 °C	125 °C	2.6 A	0.709 "	18 mm	Polar	0.748 in	19 mm	19 mm	0.748 in	Automotive High Temperature Reflow	2700 µF	Surface Mount	Radial Can - SMD	AEC-Q200	3000 Hrs	20 %
Panasonic Industrial Automation Sales EEE-TP1H751V	17 mm	0.669 in	80 mOhm	50 VDC	1.5 A	-55 °C	125 °C	2 A	0.63 in	16 mm	Polar	0.669 in	17 mm	17 mm	0.669 in	Automotive High Temperature Reflow	750 µF	Surface Mount	Radial Can - SMD	AEC-Q200	3000 Hrs	20 %
Panasonic Industrial Automation Sales EEE-TP1E332M	22 mm	0.866 in	32 mOhm	25 VDC	2.4375 A	-55 °C	125 °C	3.25 A	0.709 "	18 mm	Polar	0.748 in	19 mm	19 mm	0.748 in	Automotive High Temperature Reflow	3.3 mF	Surface Mount	Radial Can - SMD	AEC-Q200	4000 Hrs	20 %
Panasonic Industrial Automation Sales EEE-TP1H132V	22 mm	0.866 in	60 mOhm	50 VDC	2.175 A	-55 °C	125 °C	2.9 A	0.709 "	18 mm	Polar	0.748 in	19 mm	19 mm	0.748 in	Automotive High Temperature Reflow	1300 µF	Surface Mount	Radial Can - SMD	AEC-Q200	4000 Hrs	20 %
Panasonic Industrial Automation Sales EEE-TP1J102M	22 mm	0.866 in	68 mOhm	63 V	1.95 A	-55 °C	125 °C	2.6 A	0.709 "	18 mm	Polar	0.748 in	19 mm	19 mm	0.748 in	Automotive High Temperature Reflow	1000 µF	Surface Mount	Radial Can - SMD	AEC-Q200	4000 Hrs	20 %
Panasonic Industrial Automation Sales EEE-TP1V182M	17 mm	0.669 in	45 mOhm	35 V	1.95 A	-55 °C	125 °C	2.6 A	0.709 "	18 mm	Polar	0.748 in	19 mm	19 mm	0.748 in	Automotive High Temperature Reflow	1800 µF	Surface Mount	Radial Can - SMD	AEC-Q200	3000 Hrs	20 %

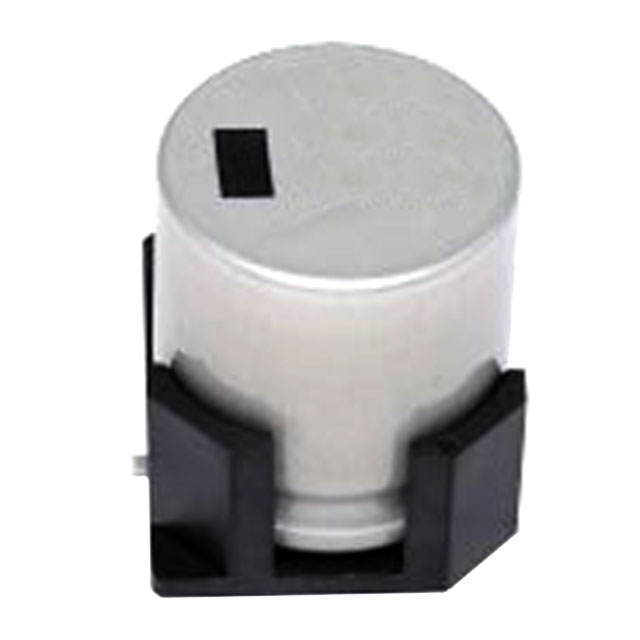

Panasonic Industrial Automation Sales EEE-TP1J102V	22 mm	0.866 in	68 mOhm	63 V	1.95 A	-55 °C	125 °C	2.6 A	0.709 "	18 mm	Polar	0.748 in	19 mm	19 mm	0.748 in	Automotive High Temperature Reflow	1000 µF	Surface Mount	Radial Can - SMD	AEC-Q200	4000 Hrs	20 %
