EHB1548 Series
Manufacturer: Delta Electronics
Beta
⌘K

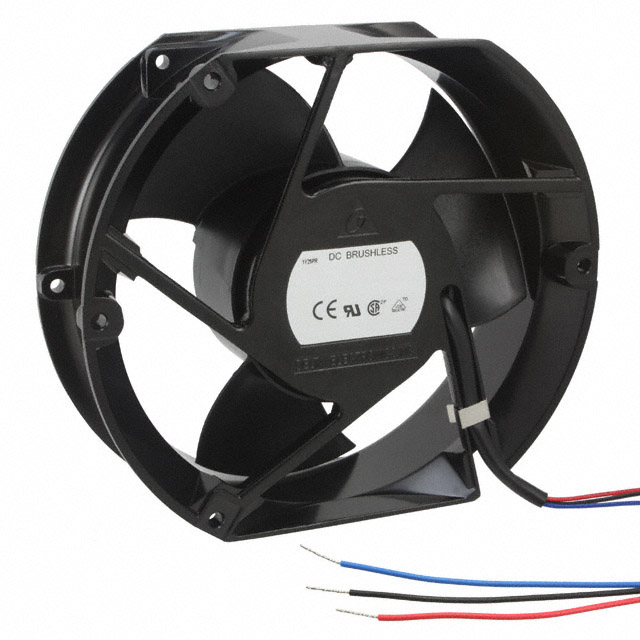

FAN AXIAL 172X50.8MM 48VDC WIRE
| Part | Material - Frame | Material - Blade | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Bearing Type | Size / Dimension | Size / Dimension [y] | Size / Dimension [x] | Features | Voltage - Rated | Fan Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Static Pressure | Static Pressure | Ingress Protection | Power (Watts) | Noise | Approval Agency | Air Flow | Air Flow | Weight | Weight | Width [y] | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Aluminum | Plastic | 880 mA | 80 VDC | 32 VDC | 100000 Hrs | Ball | Rectangular/Rounded | 150 mm | 172 mm | Locked Rotor Protection Speed Sensor (Tach) | 48 VDC | Tubeaxial | 80 °C | -40 C | 3 Wire Leads | 1.492 in H2O | 371.6 Pa | IP55 - Dust Protected Water Resistant | 42.24 W | 66.5 dB(A) | CE CSA UL VDE | 347.1 CFM | 9.72 m³/min | 1.8 lbs | 816.5 g | 50.8 mm | 4900 RPM |
