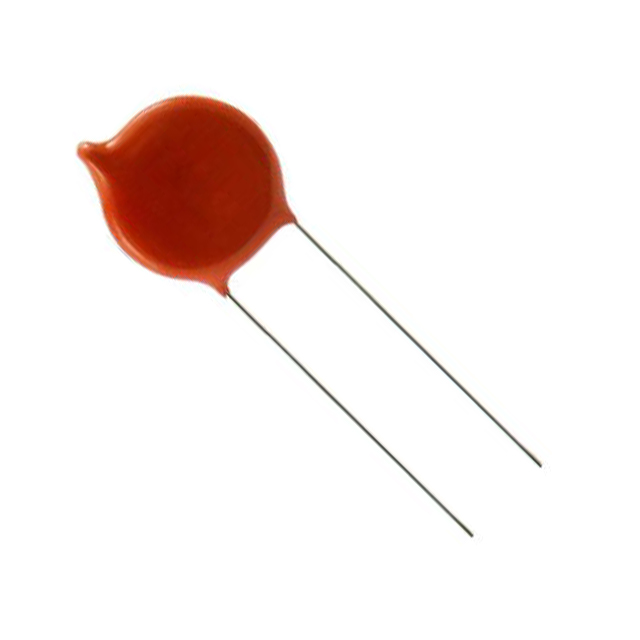

564R Series

Catalog

CAP CERAMIC 150PF 3000V X7R 20%( 8.4 X 4.8MM) RADIAL DISC 6.4MM 105°C BULK

Part	Voltage - Rated	Operating Temperature (Max)	Operating Temperature (Min)	Capacitance	Lead Spacing	Applications	Mounting Type	Tolerance	Size / Dimension Diameter	Lead Style	Height - Seated (Max)	Temperature Coefficient	Package / Case	Features
Vishay Dale 564R30GAT15	3000 V	105 °C	-25 °C	150 pF	0.252 in	General Purpose	Through Hole	20 %	0.331 in	Straight	0.52 in	X7R	Disc Radial
Vishay Dale 564RX5SAA602EV552M	6000 V	105 °C	-25 °C	5500 pF		General Purpose	Through Hole	20 %		Straight		X5S	Disc Radial	Low Dissipation Factor
Vishay Dale 564RC0GAA302EK560J	3000 V	105 °C	-25 °C	56 pF		General Purpose	Through Hole	5 %		Straight		C0G NP0	Disc Radial	Low Dissipation Factor
Vishay Dale 564R20TST22	2000 VAC	105 °C	-25 °C	220 pF	0.252 in	General Purpose	Through Hole	10 %	0.461 in	Straight	16.51 mm	X7R	Disc Radial
Vishay Dale 564R2DF0Q82	2000 VAC	105 °C	-25 °C	82 pF	0.252 in	General Purpose	Through Hole	5 %	0.291 in	Straight	0.48 in	N2000	Disc Radial	Low Dissipation Factor
Vishay Dale 564R20TSD39	2000 VAC	105 °C	-25 °C	3900 pF	0.252 in	General Purpose	Through Hole	10 %	0.681 in	Straight	0.87 in	X7R	Disc Radial
Vishay Dale 564R30GAD18	3000 V	105 °C	-25 °C	1800 pF	0.252 in	General Purpose	Through Hole	20 %	0.402 in	Straight	0.591 in	Z5U	Disc Radial
Vishay Dale 564RX5SAA302EJ222M	3000 V	105 °C	-25 °C	2200 pF		General Purpose	Through Hole	20 %		Straight		X5S	Disc Radial	Low Dissipation Factor
Vishay Dale 564R3DF0T10	3000 V	105 °C	-25 °C	100 pF	0.252 in	General Purpose	Through Hole	10 %	0.291 in	Straight	0.48 in	N2500	Disc Radial
Vishay Dale 564R30TSSD39	3000 V	105 °C	-25 °C	3900 pF	0.374 in	General Purpose	Through Hole	20 %	0.681 in	Straight	0.87 in	Y5S	Disc Radial
