XB24CA Series

Catalog

RF TXRX MOD 802.15.4 TH SMD

Part	Utilized IC / Part	Antenna Type	Current - Transmitting	Power - Output	Data Rate	Serial Interfaces	Current - Receiving	Mounting Type	Package / Case	RF Family/Standard	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity

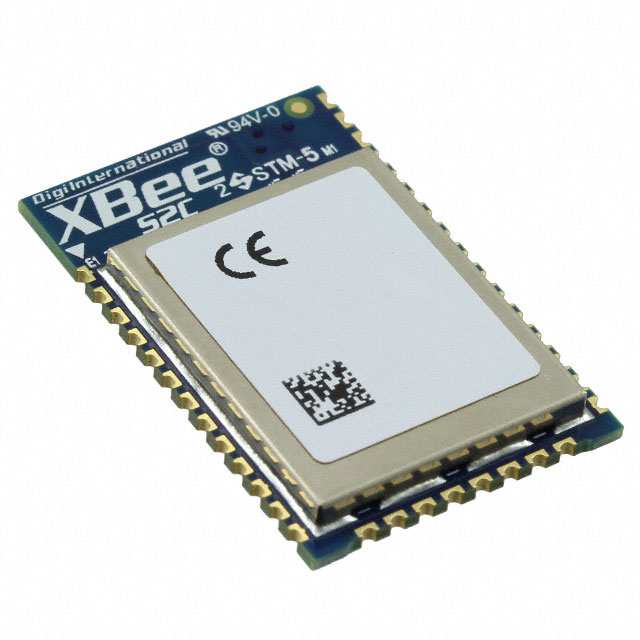

Digi International XB24CAPIS-001	EM357	Integrated Trace	45 mA	8 dBm	250 KBd	SPI UART	31 mA	Surface Mount	Module	802.15.4	2.4 GHz	85 °C	-40 C	3.6 V	2.1 V	-102 dBm

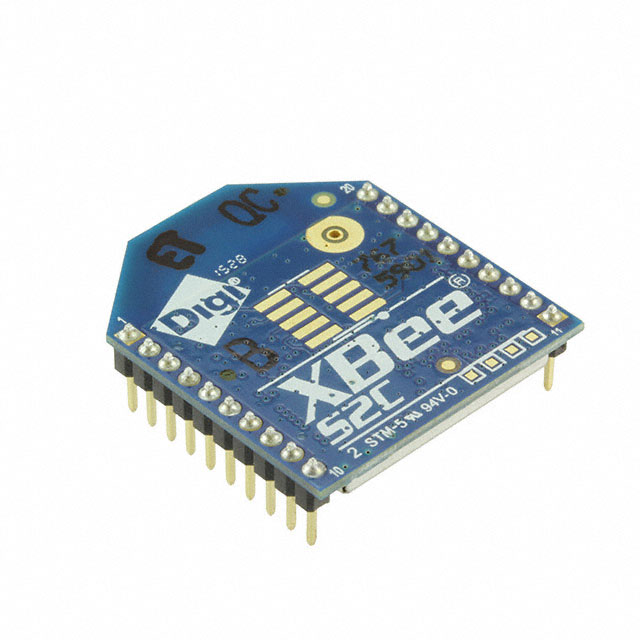

Digi International XB24CAPIT-001	EM357	Integrated Trace	45 mA	8 dBm	1 Mbps	SPI UART	31 mA	Through Hole	Module	802.15.4	2.4 GHz	85 °C	-40 C	3.6 V	2.1 V	-102 dBm
Digi International XB24CARIS-001	EM357	Antenna Not Included	120 mA	8 dBm	250 KBd	SPI UART	31 mA	Surface Mount	20-SMD Module	802.15.4	2.4 GHz	85 °C	-40 C	3.6 V	2.7 V	-102 dBm
Digi International XB24CASIT-001	EM357	RP-SMA	45 mA	8 dBm	1 Mbps	SPI UART	31 mA	Through Hole	Module	802.15.4	2.4 GHz	85 °C	-40 C	3.6 V	2.1 V	-102 dBm
Digi International XB24CAUIS-001	EM357	Antenna Not Included U.FL	45 mA	8 dBm	250 KBd	SPI UART	31 mA	Surface Mount	20-SMD Module	802.15.4	2.4 GHz	85 °C	-40 C	3.6 V	2.1 V	-102 dBm

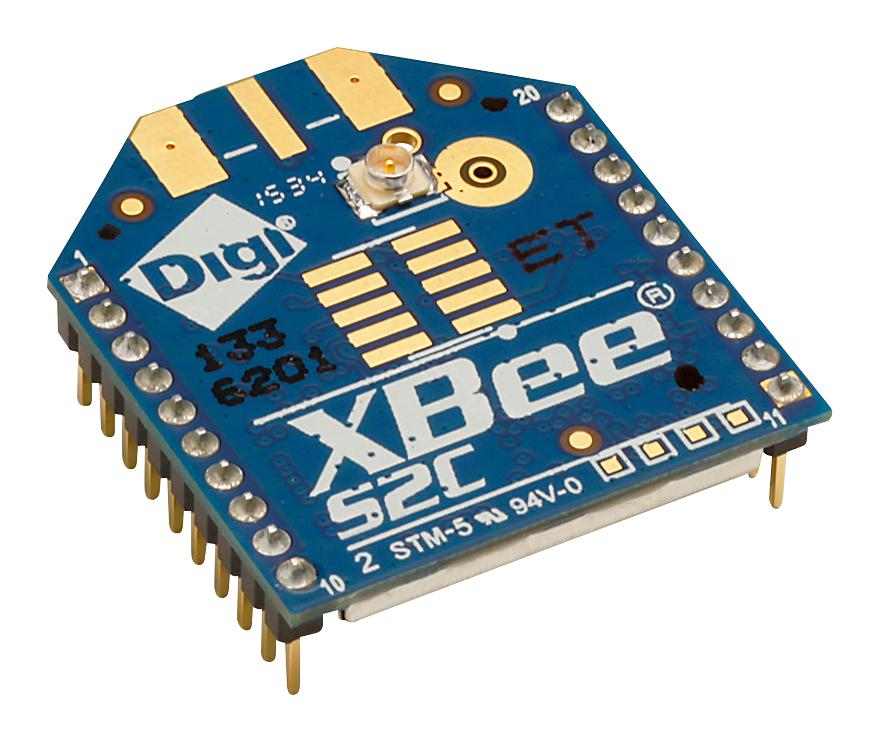

Digi International XB24CAUIT-001	EM357	Antenna Not Included U.FL	45 mA	8 dBm	1 Mbps	SPI UART	31 mA	Through Hole	Module	802.15.4	2.4 GHz	85 °C	-40 C	3.6 V	2.1 V	-102 dBm
Digi International XB24CAWIT-001	EM357	Integrated Wire Antenna	45 mA	8 dBm	1 Mbps	SPI UART	31 mA	Through Hole	Module	802.15.4	2.4 GHz	85 °C	-40 C	3.6 V	2.1 V	-102 dBm
