MCS 19 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

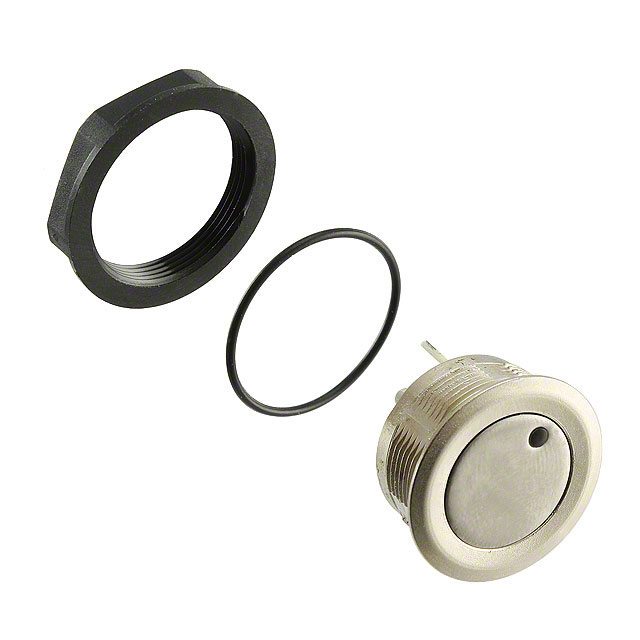

PUSHBUTTON SWITCHES 19MM RED SPOT ILLUM MECHANICAL N.O. ZINC
| Part | Electrical Life | Mechanical Life | Actuator Type | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Illumination Type, Color | Color - Actuator/Cap | Actuator Marking | Switch Function | Features | Ingress Protection | Circuit | Illumination Voltage (Nominal) | Termination Style | Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 1000000 Cycles | 1000000 Cycles | Button Flush Round | 48 V | 19 mm | 125 mA | LED Red | Silver | No Marking | Off-Mom | Tactile Feedback | IP65 - Dust Tight Water Resistant | SPST-NO | 1.9 VDC | Solder Lug | Anti-Vandal Illuminated | -25 °C | 60 °C | Panel Mount Front |
