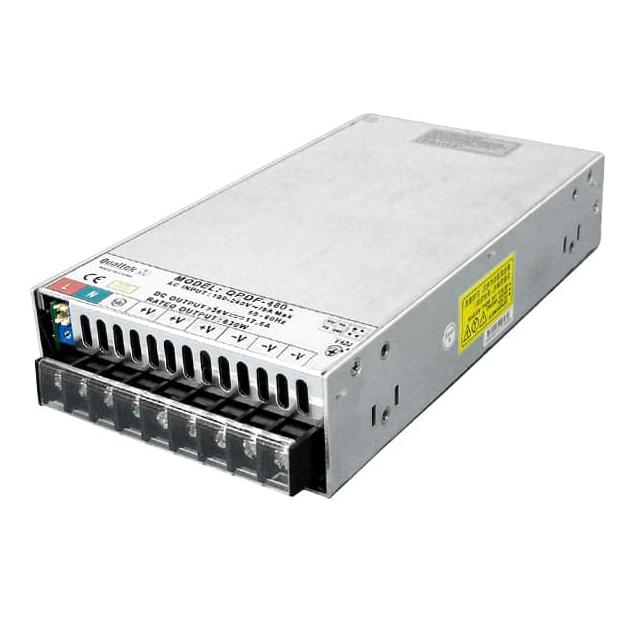

QPDF-480 Series
Manufacturer: Qualtek
Beta
⌘K
AC/DC CONVERTER 48V 480W
| Part | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage - Output 1 | Current - Output 1 | Features | Approval Agency | Number of Outputs | Applications | Efficiency | Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Isolation | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 480 W | -30 °C | 70 °C | Chassis Mount | 48 V | 11 A | Adjustable Output DC Input Capable PFC Remote Sense Universal Input | CB CE cURus | 1 | ITE (Commercial) | 90 % | Enclosed | 116.5 mm | 4.59 " | 42.5 mm | 218 mm | 8.58 in | 1.67 in | 3000 V | 264 VAC | 90 VAC |
