R1142220 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

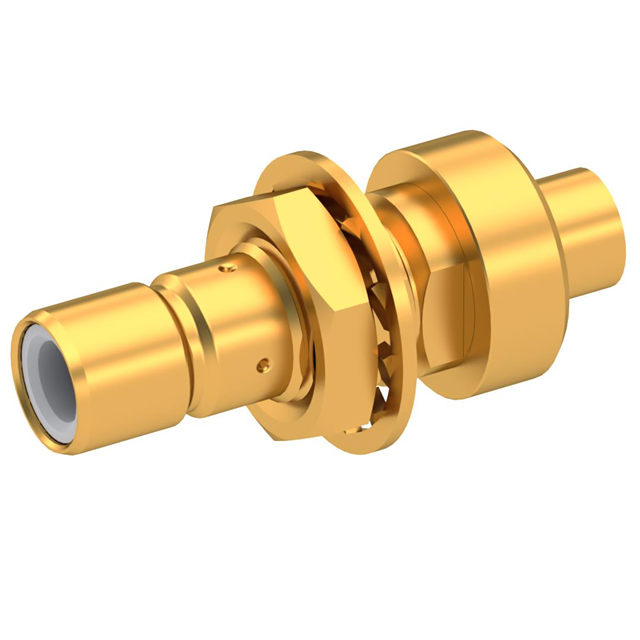

SMB M STR M BHD .085 C100
| Part | Dielectric Material | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Body Finish | Mating Cycles | Center Contact Plating | Body Material | Contact Termination | Number of Ports | Housing Color | Connector Style | Center Contact Material | Shield Termination | Frequency - Max [Max] | Mounting Feature | Fastening Type | Connector Type | Impedance | Cable Group | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Lockwasher 1 Nut | 105 ░C | -65 ░C | 335 V | Gold | 500 | Gold | Brass | Solder | 1 | Gold | SMB | Brass | Solder | 4 GHz | Bulkhead - Front Side Nut | Snap-On | Jack Male Pin | 50 Ohms | RG-405 (.085" Semi Rigid) | Panel Mount |
