GRACE INERTIA 1.5 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SGI 1.5 HDR, 10P, RA, KEY A, NATURAL
| Part | Mounting Type | Number of Positions Loaded | Current Rating (Amps) | Features | Number of Rows | Connector Type | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Contact Shape | Termination | Material Flammability Rating | Fastening Type | Number of Positions | Contact Type | Contact Finish - Post | Shrouding | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Voltage Rating | Contact Material | Insulation Material | Color | Contact Termination | Pitch | Pitch | Accessory Type | For Use With/Related Products | Style | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Right Angle Surface Mount | All | Varies by Wire Gauge | Solder Retention | 1 | Header | Natural | -40 C | 105 ░C | 4.9 mm | 0.193 " | Square | Solder | UL94 V-0 | Push-Pull | 10 | Outer Shroud Contact | Tin | Shrouded - 4 Wall | 39.4 µin | 1 µm | 50 VAC | Brass | Nylon 4T Polyamide (PA4T) | ||||||||
 TE Connectivity AMP Connectors | Right Angle Surface Mount | All | Varies by Wire Gauge | Solder Retention | 1 | Header | Black | -40 C | 105 ░C | 4.9 mm | 0.193 " | Square | Solder | UL94 V-0 | Push-Pull | 2 | Outer Shroud Contact | Tin | Shrouded - 4 Wall | 39.4 µin | 1 µm | 50 VAC | Brass | Nylon 4T Polyamide (PA4T) | ||||||||
TE Connectivity AMP Connectors | Free Hanging (In-Line) | 1 | Plug | -40 C | 105 ░C | Latch Lock | 2 | Female Socket | Nylon Polyamide (PA) | Black | Crimp | 0.059 in | 1.5 mm | |||||||||||||||||||
 TE Connectivity AMP Connectors | 7 | Terminal Position Assurance (TPA) | SGI Series | |||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Free Hanging (In-Line) | 1 | Plug | -40 C | 105 ░C | Latch Lock | 10 | Female Socket | Nylon Polyamide (PA) | Natural | Crimp | 0.059 in | 1.5 mm | |||||||||||||||||||
TE Connectivity AMP Connectors | Free Hanging (In-Line) | 1 | Plug | -40 C | 105 ░C | Latch Lock | Female Socket | Nylon Polyamide (PA) | Black | Crimp | 0.059 in | 1.5 mm | ||||||||||||||||||||
 TE Connectivity AMP Connectors | Free Hanging (In-Line) | 1 | Plug | -40 C | 105 ░C | Latch Lock | 8 | Female Socket | Nylon Polyamide (PA) | Black | Crimp | 0.059 in | 1.5 mm | |||||||||||||||||||
TE Connectivity AMP Connectors | Surface Mount | All | Solder Retention | 1 | Header | Black | -40 C | 105 ░C | 5.9 mm | 0.232 in | Rectangular | Solder | UL94 V-0 | Push-Pull | 11 | Male Pin | Shrouded - 4 Wall | 39.4 µin | 1 µm | 50 VAC | Brass | Nylon 4T Polyamide (PA4T) | Board to Cable/Wire | 2 A | ||||||||
 TE Connectivity AMP Connectors | Free Hanging (In-Line) | 1 | Plug | -40 C | 105 ░C | Latch Lock | 2 | Female Socket | Nylon Polyamide (PA) | Natural | Crimp | 0.059 in | 1.5 mm | |||||||||||||||||||

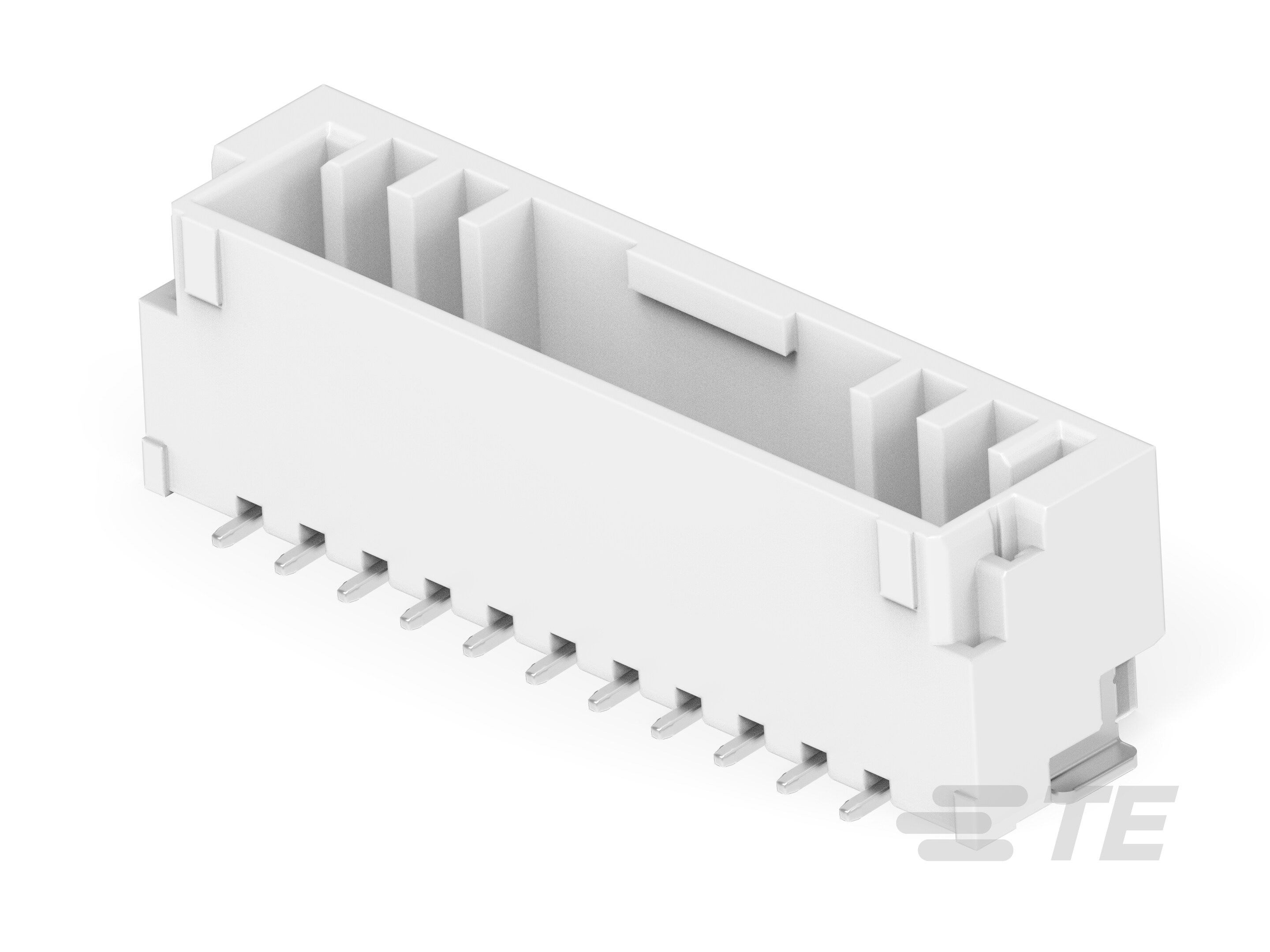

 TE Connectivity AMP Connectors | Surface Mount | All | Solder Retention | 1 | Header | Natural | -40 C | 105 ░C | 5.9 mm | 0.232 in | Rectangular | Solder | UL94 V-0 | Push-Pull | 11 | Male Pin | Shrouded - 4 Wall | 39.4 µin | 1 µm | 50 VAC | Brass | Nylon 4T Polyamide (PA4T) | Board to Cable/Wire | 2 A |
