PMR-4 Series
Manufacturer: Delta Electronics
Beta
⌘K
AC/DC ENCLOSED POWER SUPPLY (PSU), 3.78V TO 4.62V, ITE, 1 OUTPUTS, 252 W, 4.2 V, 60 A
| Part | Features | Mounting Type | Power (Watts) | Voltage - Isolation | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Current - Output 1 | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Applications | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

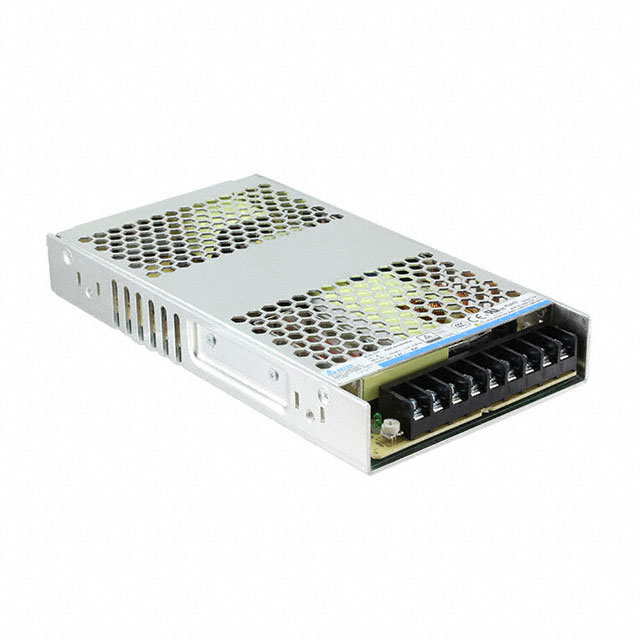

 Delta Electronics | Adjustable Output PFC Universal Input | Chassis Mount | 320 W | 3000 V | 264 VAC | 88 VAC | 83.5 % | 60 A | 1 | 70 °C | -10 °C | CB CCC CE cURus TUV | ITE (Commercial) | 4.2 V | 215 mm | 30 mm | 1.18 in | 4.53 in | 115 mm | 8.46 in | Enclosed |

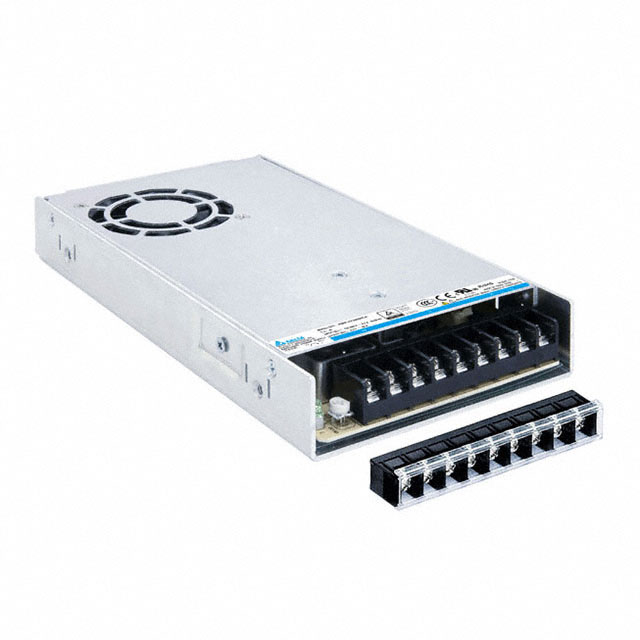

 Delta Electronics | Adjustable Output PFC Universal Input | Chassis Mount | 320 W | 3000 V | 264 VAC | 88 VAC | 84 % | 60 A | 1 | 70 °C | -20 °C | CB CCC CE cURus TUVgs | ITE (Commercial) | 4.2 V | 215 mm | 30 mm | 1.18 in | 4.53 in | 115 mm | 8.46 in | Conformal Coated Enclosed |
