902-0156 Series
Manufacturer: ROBOTIS
Beta
⌘K

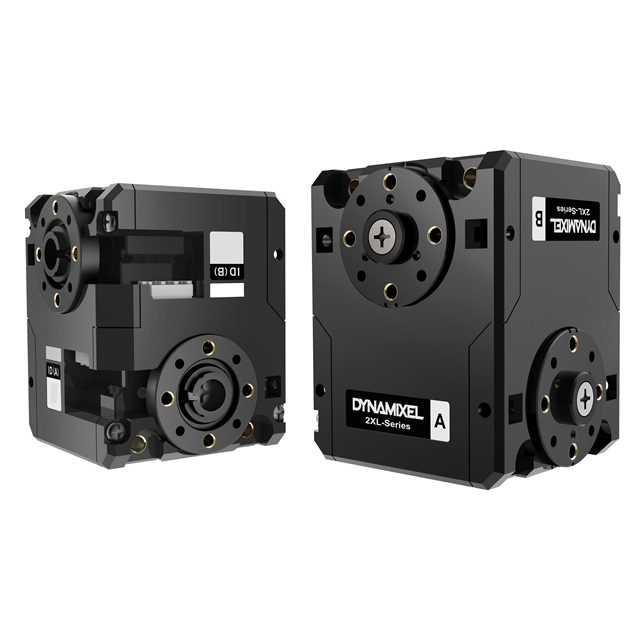

2XL430-W250-T DYNAMIXEL SERVO
| Part | Weight [custom] | Weight [custom] | Type | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Motor Type | Features | Encoder Type | Gear Reduction Ratio | Function | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Termination Style | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ROBOTIS | 98.2 g | 0.216 lb | DC Motor | 57 RPM | -5 °C | 72 °C | 1.417 " | 46.5 mm | 1.83 in | 36 mm | Brushed | Integrated Controller | Absolute | 257.4 | Servomotor | 198.3 oz-in | 1400 mNm | Connector | 11.1 V |
