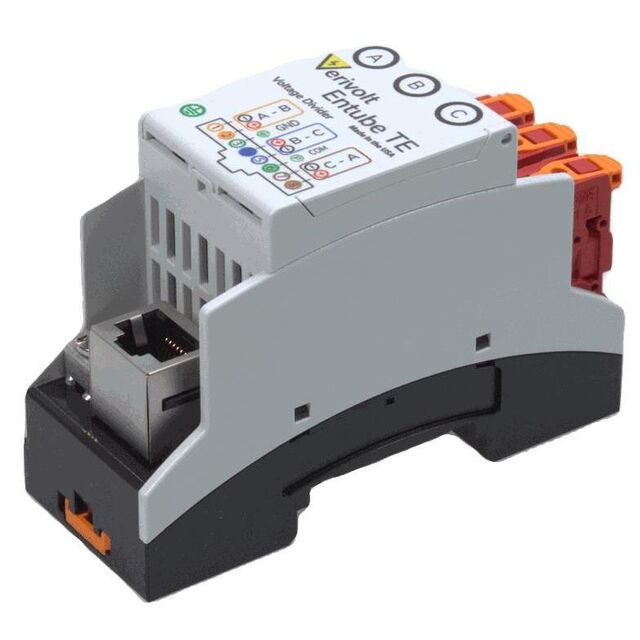

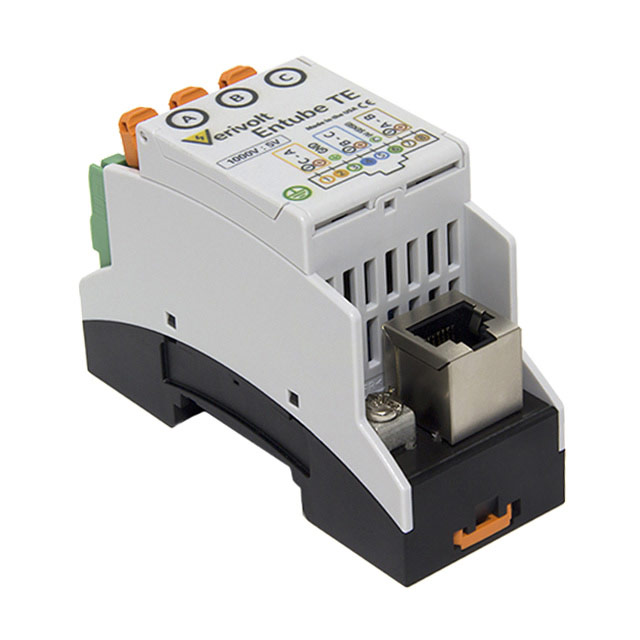

ENTUBE TE Series
Manufacturer: Verivolt LLC
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
TRANSDUCER VOLTAGE DIVIDER 3PH
| Part | Type | Mounting Type | Termination Style | Input Voltage (Min) | Input Voltage (Max) | Operating Temperature (Max) | Operating Temperature (Min) | Output Current (Min) | Output Voltage Tolerance | Output Current (Max) | Accuracy | Output Voltage (Max) | Output Voltage (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Verivolt LLC | Voltage Transducer | DIN Rail | RJ45 Spring Terminal | -750 V | 750 V | 70 °C | -25 °C | -5 V | 5 V | 5 V | 0.2 % | ||
 Verivolt LLC | Voltage Transducer | DIN Rail | RJ45 Spring Terminal | -1500 V | 1500 V | 70 °C | -25 °C | -10 V | 10 V | 0.2 % | 10 V | -10 V | |
Verivolt LLC | Voltage Transducer | DIN Rail | RJ45 Spring Terminal | -300 V | 300 V | 70 °C | -25 °C | -10 V | 10 V | 0.2 % | 10 V | -10 V | |
Verivolt LLC | Voltage Transducer | DIN Rail | RJ45 Spring Terminal | 0 mV | 150 V | 70 °C | -25 °C | 0.2 % | 7 V | 0 V | |||
Verivolt LLC | Voltage Transducer | DIN Rail | RJ45 Spring Terminal | 0 mV | 250 VAC | 70 °C | -25 °C | 0.2 % | 7 V | 0 V |
