1713 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

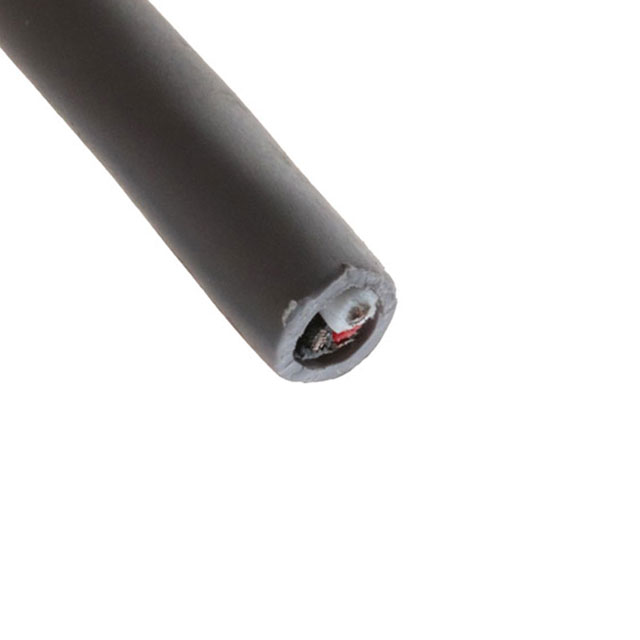

CABLE 3COND 20AWG SHLD 1000'
| Part | Shield Coverage | Shield Material | Shield Type | Voltage | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Usage | Conductor Material | Conductor Insulation | Cable Type | Jacket (Insulation) Material | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | Braid | 600 V | 20 AWG | 0.035 in | 0.889 mm | 3 | Communication Control | Copper Tinned | Polyethylene (PE) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 0.248 " | 6.3 mm | -20 ░C | 60 °C | 26 | 34 AWG | Slate |
