FI1D024 Series
Manufacturer: Belden Inc.
Beta
⌘K

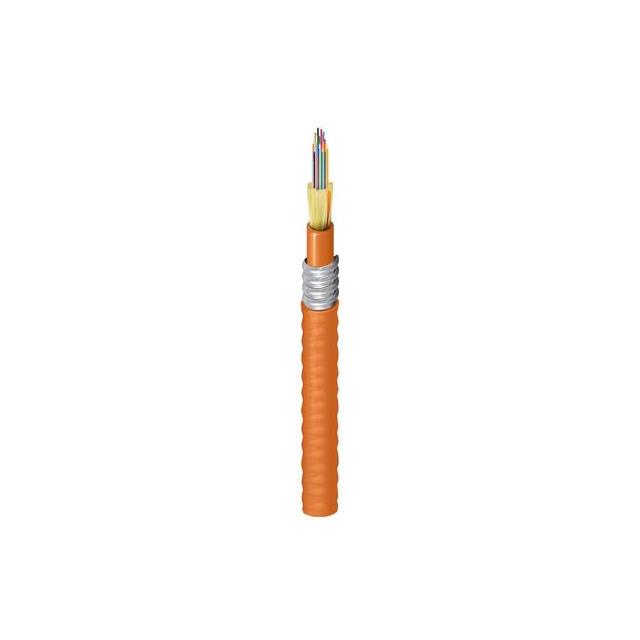

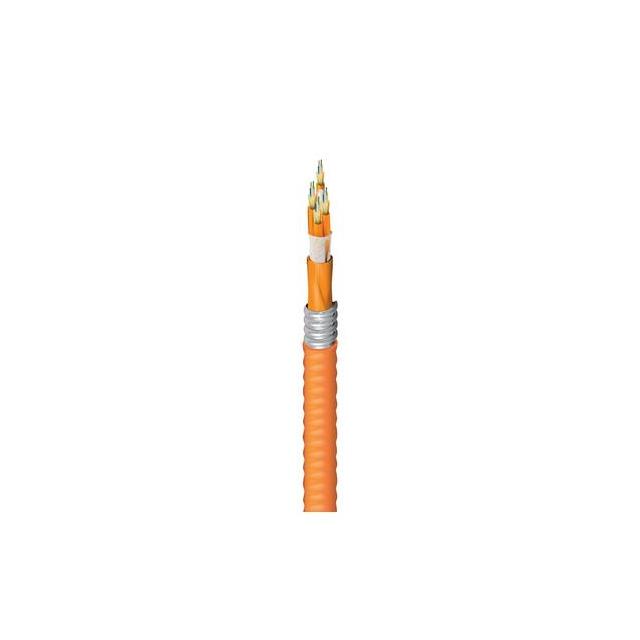

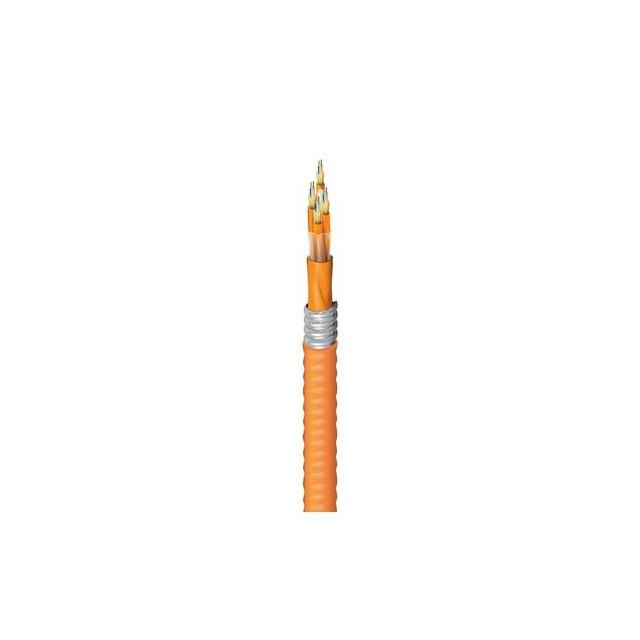

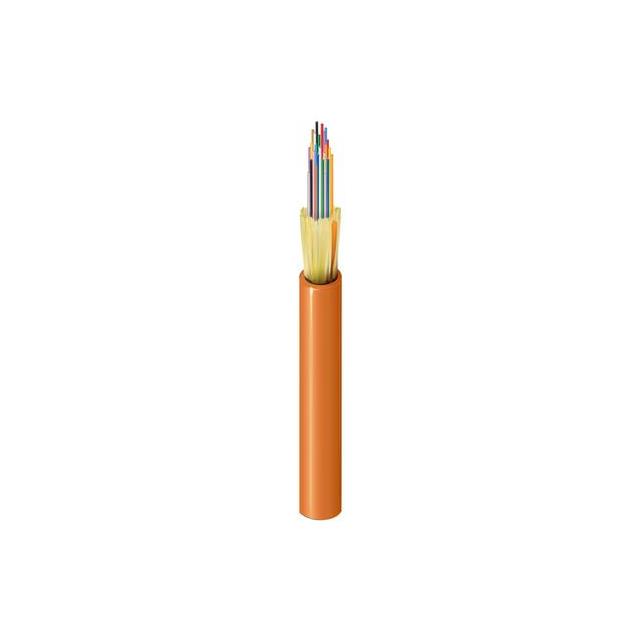

CBL FIBER OPTIC 125UM MULTIMODE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Core Diameter [diameter] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Style | Cladding Diameter [diameter] | Ratings | Tensile Strength | Type | Features | Features | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | -20 ░C | 70 °C | 62.5 µm | Orange | 23.62 mm | 0.93 " | Poly-Vinyl Chloride (PVC) | Multiple Fibers | 125 µm | OFCR | 40.8 kg | Multimode | 24 | Armored | |
 Belden Inc. | 0 °C | 70 °C | 62.5 µm | Orange | 14.22 mm | Poly-Vinyl Chloride (PVC) | Multiple Fibers | 125 µm | OFNP | 40.8 kg | Multimode | 24 Fibers Rip Cord | 0.56 in | ||
 Belden Inc. | 0 °C | 70 °C | 62.5 µm | Orange | 8.38 mm | Poly-Vinyl Chloride (PVC) | Multiple Fibers | 125 µm | OFNP | 40.8 kg | Multimode | 24 Fibers Rip Cord | 0.33 in | ||
 Belden Inc. | 0 °C | 70 °C | 62.5 µm | Orange | 21.36 mm | Poly-Vinyl Chloride (PVC) | Multiple Fibers | 125 µm | OFCP | 40.8 kg | Multimode | 24 | Armored | 0.841 in | |
 Belden Inc. | -20 ░C | 70 °C | 62.5 µm | Orange | 15.24 mm | Poly-Vinyl Chloride (PVC) | Multiple Fibers | 125 µm | OFCR | 40.8 kg | Multimode | 24 | Armored | 0.6 in | |
Belden Inc. | 0 °C | 70 °C | 62.5 µm | Orange | 14.73 mm | Poly-Vinyl Chloride (PVC) | Multiple Fibers | 125 µm | OFCP | 40.8 kg | Multimode | 24 | Armored | 0.58 in |
