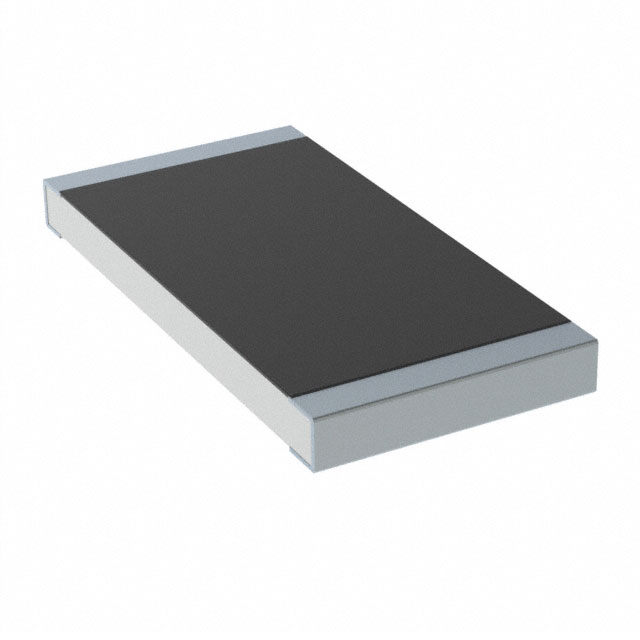

SR73W3A Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

Catalog

CURRENT SENSE RESISTOR

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Temperature Coefficient	Composition	Power (Watts)	Features	Number of Terminations [custom]	Package / Case
KOA Speer Electronics, Inc. SR73W3ATTE1R15F	-55 C	150 °C	2512	0.122 in	0.248 in	3.1 mm	6.3 mm	1.15 Ohms	AEC-Q200	0.7 mm	0.028 "	1 %	100 ppm/°C	Thick Film	1 W	Automotive AEC-Q200 Current Sense Moisture Resistant	2	2512 (6432 Metric)
KOA Speer Electronics, Inc. SR73W3ATTE2R15F	-55 C	150 °C	2512	0.122 in	0.248 in	3.1 mm	6.3 mm	2.15 Ohms	AEC-Q200	0.7 mm	0.028 "	1 %	100 ppm/°C	Thick Film	1 W	Automotive AEC-Q200 Current Sense Moisture Resistant	2	2512 (6432 Metric)
KOA Speer Electronics, Inc. SR73W3ATTE1R27F	-55 C	150 °C	2512	0.122 in	0.248 in	3.1 mm	6.3 mm	1.27 Ohms	AEC-Q200	0.7 mm	0.028 "	1 %	100 ppm/°C	Thick Film	1 W	Automotive AEC-Q200 Current Sense Moisture Resistant	2	2512 (6432 Metric)
KOA Speer Electronics, Inc. SR73W3ATTER340F	-55 C	150 °C	2512	0.122 in	0.248 in	3.1 mm	6.3 mm	340 mOhms	AEC-Q200	0.7 mm	0.028 "	1 %	100 ppm/°C	Thick Film	1 W	Automotive AEC-Q200 Current Sense Moisture Resistant	2	2512 (6432 Metric)
KOA Speer Electronics, Inc. SR73W3ATTER91G	-55 C	150 °C	2512	0.122 in	0.248 in	3.1 mm	6.3 mm	910 mOhms	AEC-Q200	0.7 mm	0.028 "	2 %	200 ppm/°C	Thick Film	1 W	Automotive AEC-Q200 Current Sense Moisture Resistant	2	2512 (6432 Metric)
KOA Speer Electronics, Inc. SR73W3ATTE1R50F	-55 C	150 °C	2512	0.122 in	0.248 in	3.1 mm	6.3 mm	1.5 Ohms	AEC-Q200	0.7 mm	0.028 "	1 %	100 ppm/°C	Thick Film	1 W	Automotive AEC-Q200 Current Sense Moisture Resistant	2	2512 (6432 Metric)
KOA Speer Electronics, Inc. SR73W3ATTE2R87F	-55 C	150 °C	2512	0.122 in	0.248 in	3.1 mm	6.3 mm	2.87 Ohms	AEC-Q200	0.7 mm	0.028 "	1 %	100 ppm/°C	Thick Film	1 W	Automotive AEC-Q200 Current Sense Moisture Resistant	2	2512 (6432 Metric)
KOA Speer Electronics, Inc. SR73W3ATTER13J	-55 C	150 °C	2512	0.122 in	0.248 in	3.1 mm	6.3 mm	0.13 Ohms	AEC-Q200	0.7 mm	0.028 "	5 %	200 ppm/°C	Thick Film	1 W	Automotive AEC-Q200 Current Sense Moisture Resistant	2	2512 (6432 Metric)
KOA Speer Electronics, Inc. SR73W3ATTE4R70F	-55 C	150 °C	2512	0.122 in	0.248 in	3.1 mm	6.3 mm	4.7 Ohms	AEC-Q200	0.7 mm	0.028 "	1 %	100 ppm/°C	Thick Film	1 W	Automotive AEC-Q200 Current Sense Moisture Resistant	2	2512 (6432 Metric)
KOA Speer Electronics, Inc. SR73W3ATTE5R62F	-55 C	150 °C	2512	0.122 in	0.248 in	3.1 mm	6.3 mm	5.62 Ohms	AEC-Q200	0.7 mm	0.028 "	1 %	100 ppm/°C	Thick Film	1 W	Automotive AEC-Q200 Current Sense Moisture Resistant	2	2512 (6432 Metric)
