MPQ4322 Series

Catalog

42V LOAD DUMP TOLERANT, 2A, ULTR

Part	Output Type	Function	Output Configuration	Voltage - Input (Max) [Max]	Frequency - Switching [Max]	Frequency - Switching [Min]	Mounting Type	Topology	Current - Output	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Package / Case	Supplier Device Package	Contents	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Regulator Topology	Utilized IC / Part	Main Purpose	Frequency - Switching

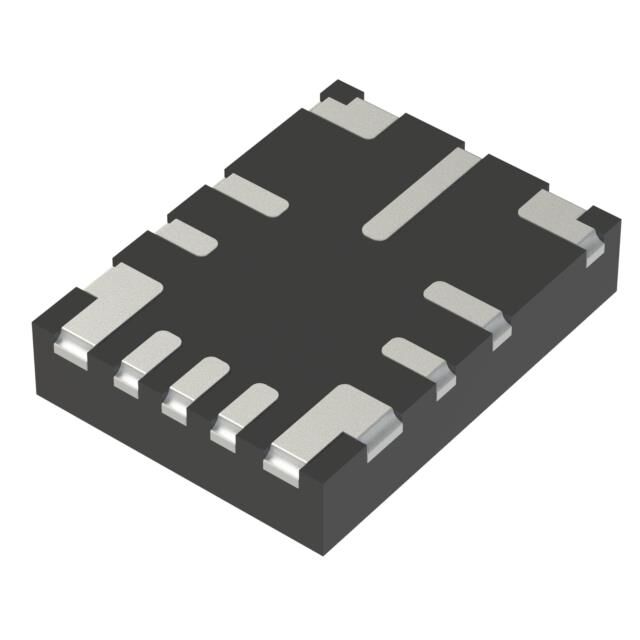

Monolithic Power Systems Inc. MPQ4322GLE-AEC1-Z	Adjustable	Step-Down	Positive	36 V	2.5 MHz	350 kHz	Surface Mount Wettable Flank	Buck	2 A	0.8 V	34.2 V	-40 °C	150 °C	1	12-PowerVFQFN	12-QFN (3x4)

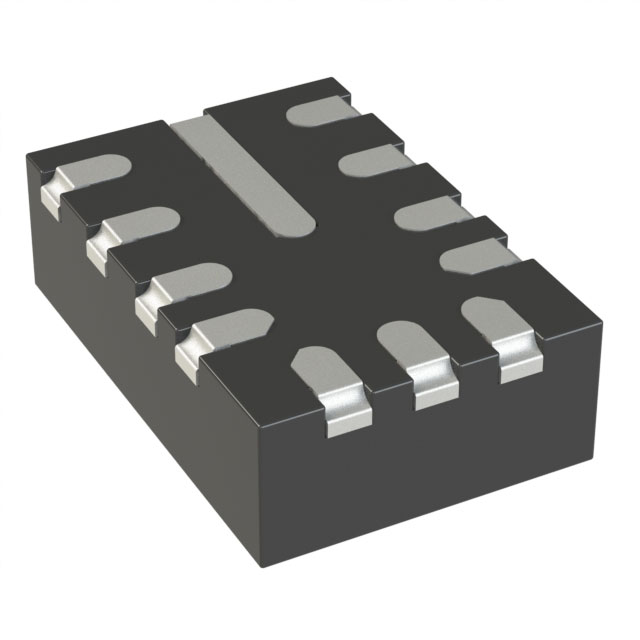

Monolithic Power Systems Inc. MPQ4322GDE-AEC1-P	Adjustable	Step-Down	Positive	36 V	2.5 MHz	350 kHz	Surface Mount Wettable Flank	Buck	2 A	0.8 V	34.2 V	-40 °C	150 °C	1	12-PowerVFQFN	12-QFN (2x3)
Monolithic Power Systems Inc. MPQ4322GDE-AEC1-Z	Adjustable	Step-Down	Positive	36 V	2.5 MHz	350 kHz	Surface Mount Wettable Flank	Buck	2 A	0.8 V	34.2 V	-40 °C	150 °C	1	12-PowerVFQFN	12-QFN (2x3)
Monolithic Power Systems Inc. MPQ4322GLE-AEC1-P	Adjustable	Step-Down	Positive	36 V	2.5 MHz	350 kHz	Surface Mount Wettable Flank	Buck	2 A	0.8 V	34.2 V	-40 °C	150 °C	1	12-PowerVFQFN	12-QFN (3x4)
Monolithic Power Systems Inc. EVQ4322-D-00A									2 A								Board(s)	5 V	3.3 V	36 V	1 Non-Isolated Output	Buck	MPQ4322	DC/DC Step Down	2.2 MHz
