2001-130 Series
Manufacturer: WAGO Corporation
Beta
⌘K

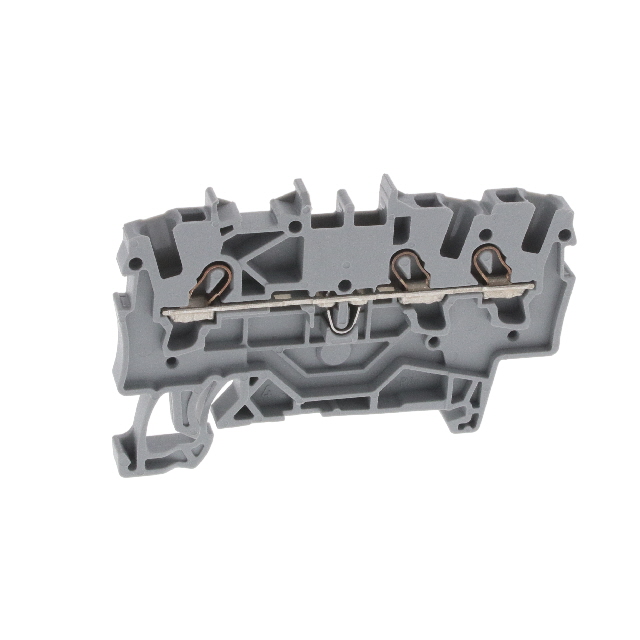

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 22 AWG, 14 AWG, 2.5 MM², CLAMP, 18 A
| Part | Stripping Length [Max] | Stripping Length [Min] | Material - Insulation | Termination Style | Current - IEC | Voltage - IEC | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Terminal - Width [y] | Type | Voltage - UL | Number of Levels | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WAGO Corporation | 11 mm | 9 mm | Nylon 6/6 Polyamide (PA66) | Push In Spring | 24 A | 800 V | 14 AWG | 18 AWG | 2.5 mm² | 0.75 mm² | 4.2 mm | Feed Through | 600 V | 1 | Gray |
