UT Series

Thermoelectric Peltier Modules UT11,12,F2,3030,TA RT,W6, 30x34x2.4mm

Manufacturer: Phoenix Contact

Catalog

Thermoelectric Peltier Modules UT11,12,F2,3030,TA RT,W6, 30x34x2.4mm

Catalog

Thermoelectric Peltier Modules UT11,12,F2,3030,TA RT,W6, 30x34x2.4mm

Part	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Terminal - Width [y]	Voltage - IEC	Current - IEC	Color	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Number of Levels	Number of Positions	Termination Style	Material Flammability Rating	Material - Insulation	Stripping Length	Voltage - UL	Current - UL	Disconnect Type	Housing Color	Mounting Type	Length [x]	Length [x]	Height (Max) [z]	Height (Max) [z]
Phoenix Contact 3214291	0.14 mm²	4 mm²	5.2 mm	500 V	20 A	Gray	12 AWG	26 AWG	Feed Through	3	6	Screw

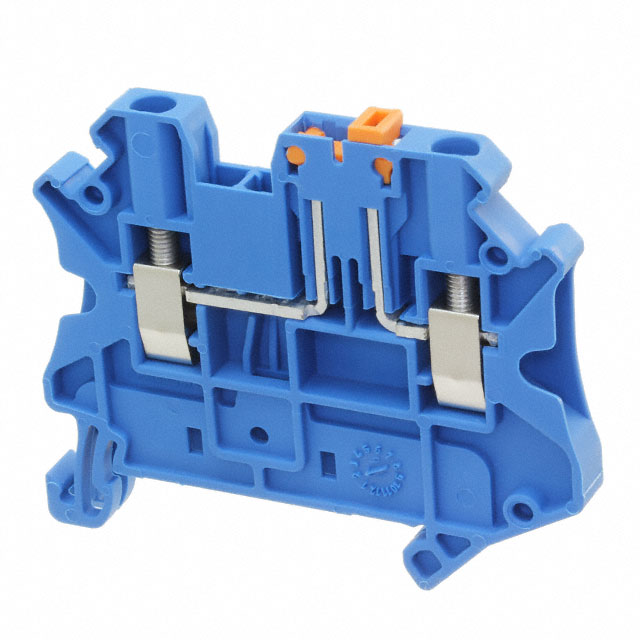

Phoenix Contact 3046553	0.14 mm²	4 mm²	5.2 mm	400 V	20 A	Blue	12 AWG	26 AWG	Disconnect	1	2	Screw	UL94 V-0	Nylon Polyamide (PA)	9 mm	300 V	20 A	Knife Switch
Phoenix Contact 3060568	0.2 mm²	10 mm²	8.2 mm	1 kV	41 A		8 AWG	24 AWG	Plug Connection	1	4	Plug Receptacles Screw					40 A		Gray	DIN Rail

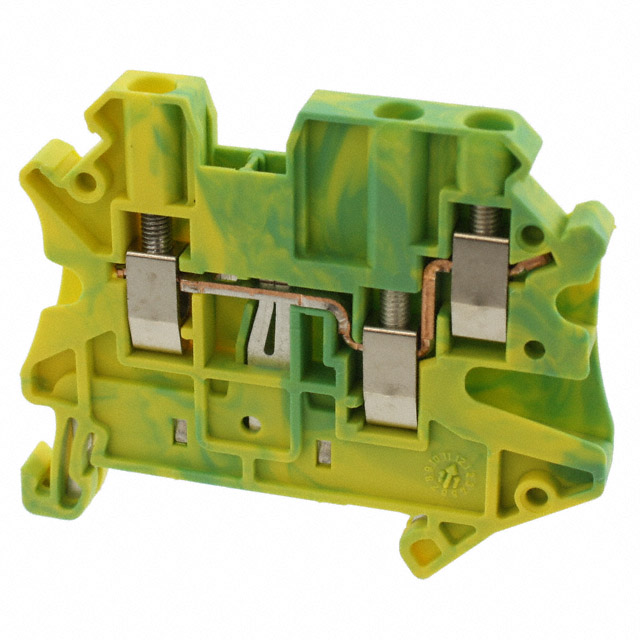

Phoenix Contact 3044539	0.14 mm²	4 mm²	5.2 mm			Green Yellow	12 AWG	26 AWG	Ground Earth	1		Screw	UL94 V-0	Nylon Polyamide (PA)	9 mm
Phoenix Contact 3064056	0.14 mm²	6 mm²	6.2 mm	500 V	20 A	Gray	10 AWG	26 AWG	Disconnect	1	4	Screw				300 V	20 A	Knife Switch
Phoenix Contact 3046320	0.5 mm²	16 mm²	10.2 mm	1 kV	57 A	Black	6 AWG	20 AWG	Feed Through	1	2	Screw				600 V	65 A
Phoenix Contact 3047714	0.14 mm²	6 mm²	6.2 mm	800 V	41 A	Brown	10 AWG	26 AWG	Feed Through	1	2	Screw				600 V	30 A
Phoenix Contact 3048836	0.14 mm²	6 mm²	6.2 mm	1 kV	32 A	Blue			Feed Through	1	4	Screw

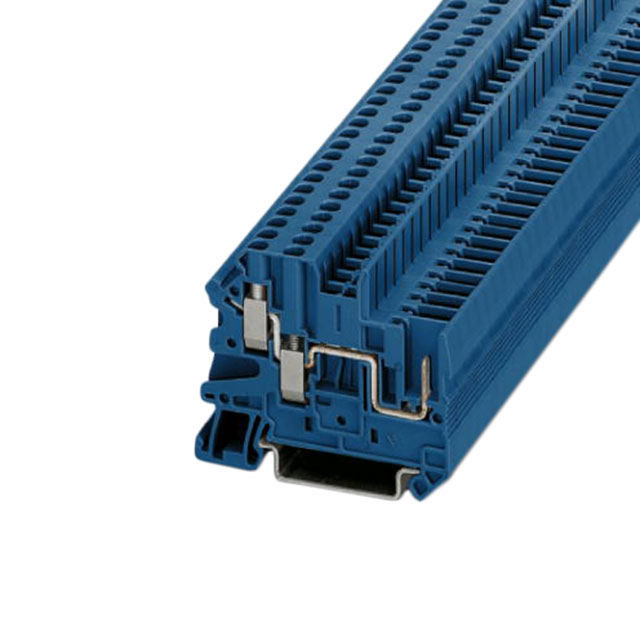

Phoenix Contact 3060500	0.14 mm²	4 mm²	5.2 mm	500 V	24 A		12 AWG	26 AWG	Plug Connection	1		Plug Receptacles Screw	UL94 V-0	Nylon Polyamide (PA)	9 mm	300 V	20 A		Blue	DIN Rail	55.7 mm	2.193 in	2.165 in	55 mm
Phoenix Contact 3046362	0.14 mm²	4 mm²	5.2 mm	400 V	20 A	Gray	12 AWG	26 AWG	Disconnect	1	2	Screw				300 V	20 A	Knife Switch
