ko Series

Manufacturer: E-Switch

Catalog

SWITCH: KEY SWITCH; STABL.POS: 2; SWITCH.METHOD: OFF-ON; ON PANEL

Part	Contact Finish	Contact Timing	Mounting Type	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Panel Cutout Dimensions [diameter]	Number of Positions	Circuit	Actuator Type	Termination Style	Contact Material	Key Removable Positions	Angle of Throw	Depth Behind Flange [z]	Depth Behind Flange	Key Removable Positions
E-Switch KO107A1097	Silver	Not Specified	Panel Mount	1 A	125 V	Off-On	12 mm	2	SPST	Tubular Key	Solder Lug	Copper Alloy	All	90 °
E-Switch KO132A1097	Silver	Not Specified	Panel Mount	1 A	125 V	Off-On	12 mm	2	SPST	Tubular Key	Solder Lug	Copper Alloy	All	90 °

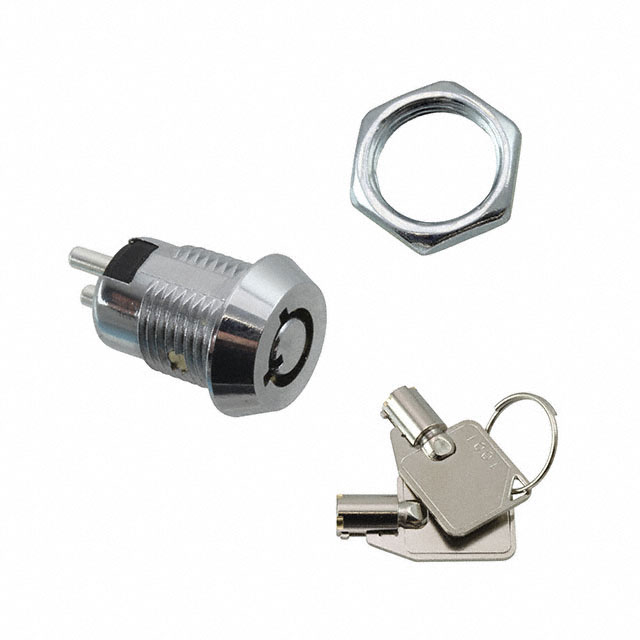

E-Switch KO105A1001	Silver	Not Specified	Panel Mount	1 A	125 V	Off-On	12 mm	2	SPST	Tubular Key	Solder Lug	Copper Alloy	All	90 °	19 mm

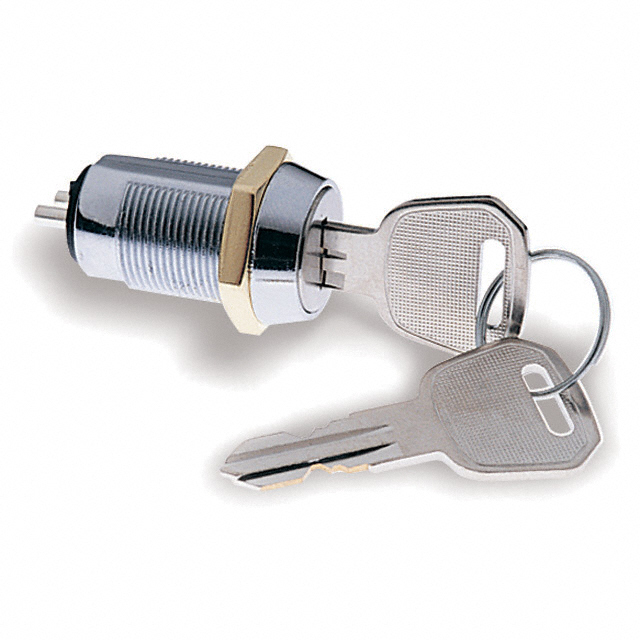

E-Switch KO117A125	Silver	Not Specified	Panel Mount	4 A	125 V	Off-On	19 mm	2	SPST	Flat Key	Solder Lug	Copper Alloy	All	90 °		33.3 mm
E-Switch KO132B1501	Silver	Not Specified	Panel Mount	1 A	125 V	On-On	12 mm	2	SPDT	Tubular Key	Solder Lug	Copper Alloy	All	90 °		18.3 mm
E-Switch KO130Z4A126	Silver	Not Specified	Panel Mount	4 A	125 V	On-On-On	19 mm		SP3T	Flat Key	Solder Lug	Copper Alloy	All	90 °
E-Switch KO130JA126	Silver	Not Specified	Panel Mount	4 A	125 V	On-On-On	19 mm		DP3T	Flat Key	Solder Lug	Copper Alloy	All	45 °
E-Switch KO113A10001	Silver	Not Specified	Panel Mount	4 A	125 V	Off-On	19 mm	2	SPST	Tubular Key	Solder Lug	Copper Alloy		90 °			1

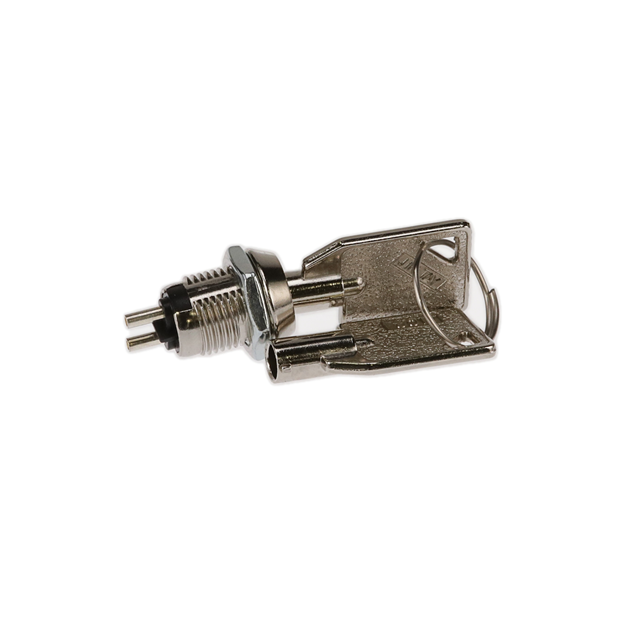

E-Switch KO131A102	Silver	Not Specified	Panel Mount	1 A	125 V	Off-On	12 mm	2	SPST	Tubular Key	Solder Lug	Copper Alloy	All	90 °	19 mm
E-Switch KO132D1506HT	Silver	Not Specified	Panel Mount	1 A	125 V	On-Off-On	12 mm		SPDT	Tubular Key	PC Pin	Copper Alloy		45 °			2
