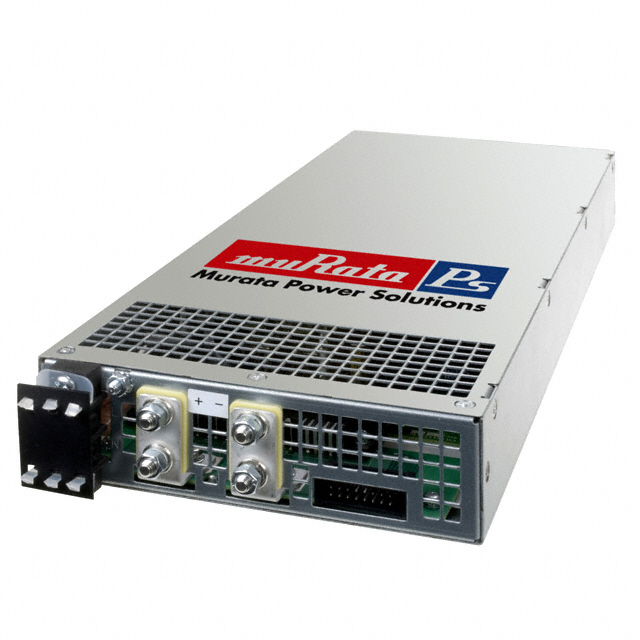

C1U-W Series

Catalog

AC/DC CONVERTER 12V 1200W

Part	Applications	Approval Agency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Voltage - Isolation	Mounting Type	Type	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Features	Power (Watts)	Voltage - Output 1	Current - Output 1	Efficiency
Murata Electronics C1U-W-1200-12-TC2C	ITE (Commercial)	cCSAus TUV	360.7 mm	14.2 in	139.7 mm	42.4 mm	5.5 in	1.67 in	1	3000 V	Rack Mount	Front End	50 °C	264 VAC	90 VAC	Load Sharing PFC Remote Sense Standby Output Universal Input	1200 W	12 V	98.3 A	90.6 %

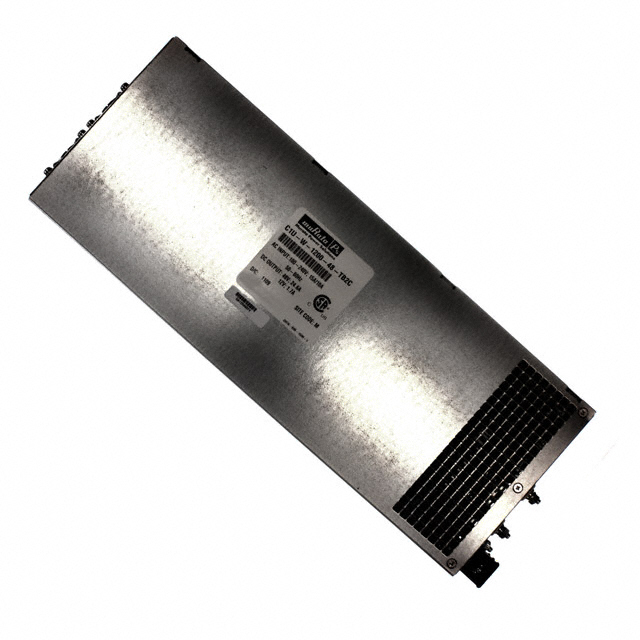

Murata Electronics C1U-W-1200-48-TB2C	ITE (Commercial)	cCSAus TUV	360.7 mm	14.2 in	139.7 mm	42.4 mm	5.5 in	1.67 in	1	3000 V	Rack Mount	Front End	50 °C	264 VAC	90 VAC	Load Sharing Remote On/Off Remote Sense Standby Output Universal Input	1200 W	48 V	24.6 A	91 %
Murata Electronics C1U-W-1200-12-TC1C	ITE (Commercial)	cCSAus TUV	360.7 mm	14.2 in	139.7 mm	42.4 mm	5.5 in	1.67 in	1	3000 V	Rack Mount	Front End	50 °C	264 VAC	90 VAC	Load Sharing PFC Remote Sense Standby Output Universal Input	1200 W	12 V	98.3 A	90.6 %
