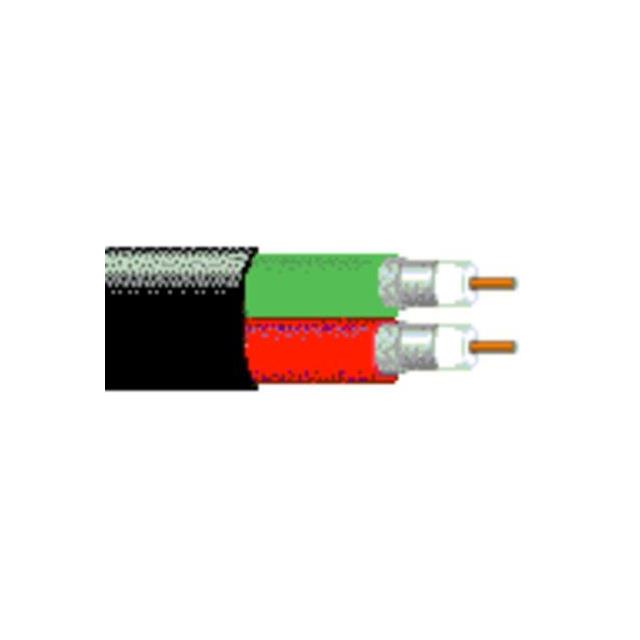

1694D Series
Manufacturer: Belden Inc.
Beta
⌘K
2 #18 PE SH PVC FR PARA
| Part | Shield Coverage | VoP, Velocity of Propagation | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Shield Type | Cable Type | Jacket (Insulation) Material | Length [x] | Length [x] | Jacket Color | Conductor Strand | Wire Gauge | Cable Group | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 95 % 100 % | 82 | Copper Bare | 0.18 in | 4.57 mm | -40 C | 75 ░C | Aluminum Polyester Copper Tinned | Braid Foil | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Black | Solid | 18 AWG | RG-6 | 0.618 in | 15.7 mm | 75 Ohms |
