MA203 Series

Catalog

RF ANT 850MHZ/900MHZ MOD SMA ADH

Part	Applications	Features	Gain	VSWR	Frequency (Center/Band)	Return Loss	Frequency Range [Min]	Frequency Range [Max]	RF Family/Standard	Mounting Type	Ingress Protection	Number of Bands	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Termination	Antenna Type

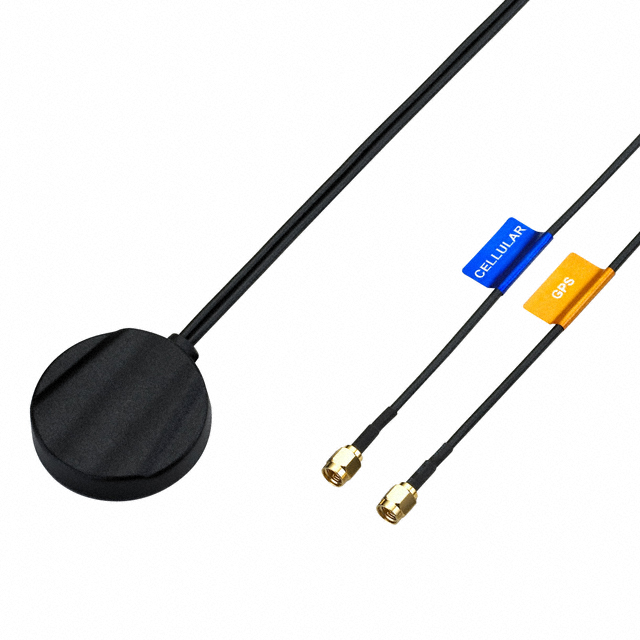

Taoglas Limited MA203W.AB.002	CDMA DCS EDGE GPRS GPS GSM HSPA PCS UMTS	Cable - 3m LNA	-3 dBi	1.92	1.575 GHz 1.8 GHz 1.9 GHz 850 MHz 900 MHz	-10 dB	1.71 GHz 824 MHz	2.17 GHz 960 MHz	Cellular Navigation	Adhesive	IP67	5	11.8 mm	0.465 in	SMA Male (2)	Module
