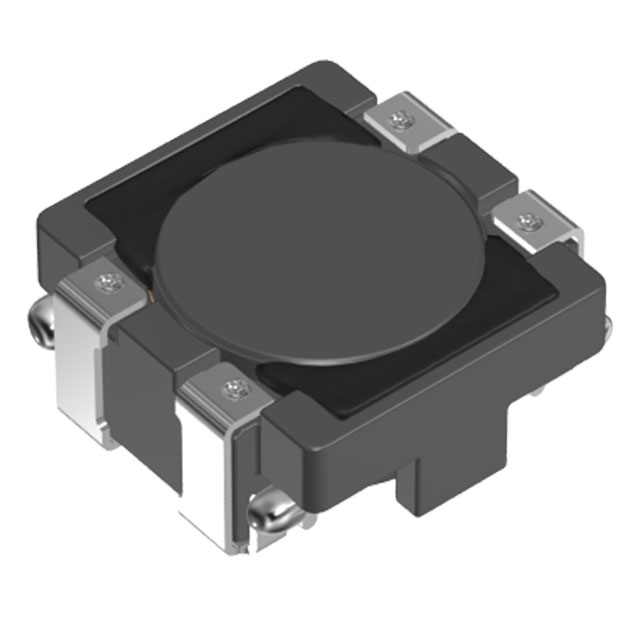

ACM-V Series
Manufacturer: TDK Corporation
Beta
⌘K
COMMON MODE FILTER, 420 OHM, 4.7X4.5X2MM ROHS COMPLIANT: YES
| Part | Package / Case | Number of Lines | Ratings | Current Rating (Max) [Max] | Mounting Type | Impedance @ Frequency | Height (Max) [z] | DC Resistance (DCR) (Max) [Max] | Voltage Rating - DC | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | Horizontal 4 PC Pad | 2 | AEC-Q200 | 1.4 A | Surface Mount | 420 Ohms | 0.079 in 2 mm | 55 mOhm | 50 VDC | 0.177 " | 4.7 mm | 4.5 mm | 0.185 in | 125 °C | -40 C | Power Line |
