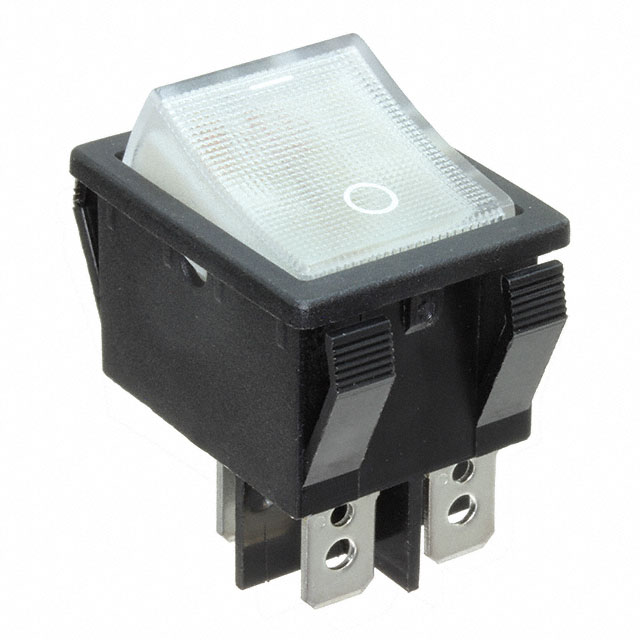

R5BBLKCL Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER DPST 20A 125V
| Part | Electrical Life | Mechanical Life | Actuator Type | Color - Actuator/Cap | Voltage Rating - AC | Switch Function | Actuator Marking | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Current Rating (Amps) | Illumination Type, Color | Illumination Voltage (Nominal) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Approval Agency | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | 30000 Steps | Concave (Curved) - Illuminated | Clear | 125 V | On-Off | O I | Panel Mount Snap-In | 55 °C | -20 ░C | DPST | 20 A | Clear Neon | 125 VAC | 30 mm | 22.2 mm | CSA UL | Quick Connect - 0.250" (6.3mm) |
