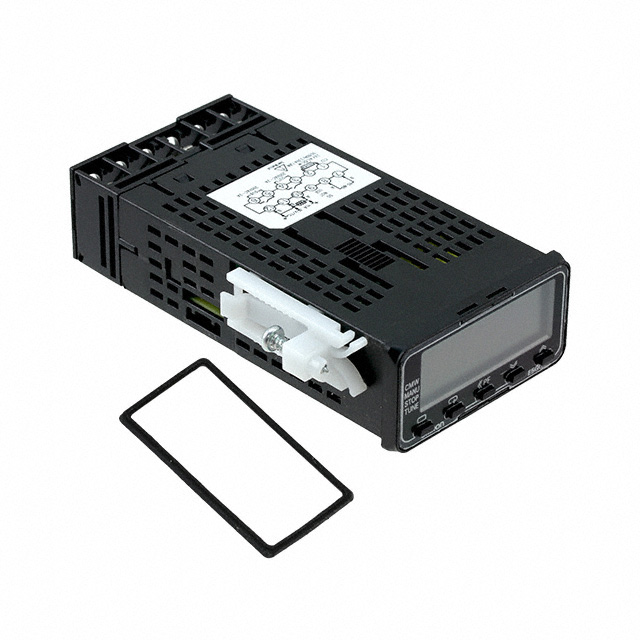

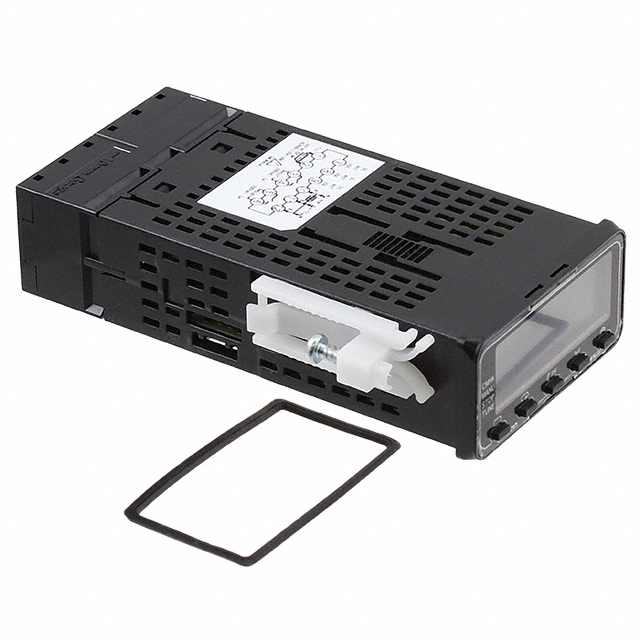

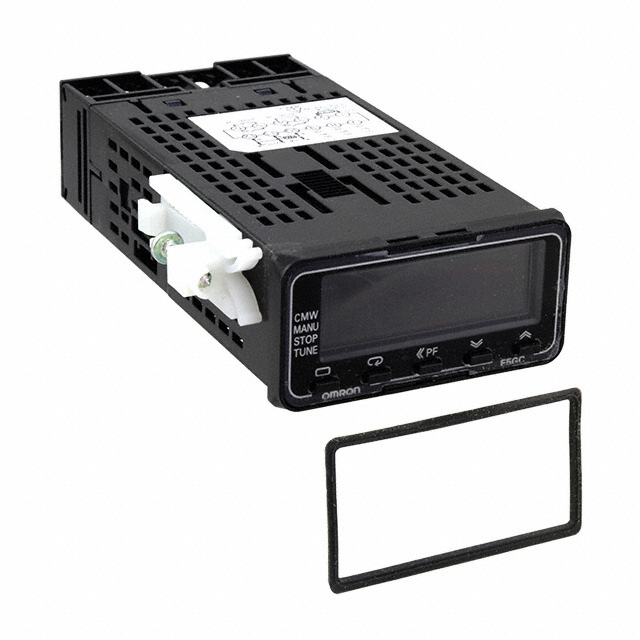

E5GC-RX Series

Manufacturer: Omron Automation and Safety

Catalog

CONTROL TEMP/PROC RELAY OUT 24V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Weight [custom]	Weight [custom]	Type	Voltage - Supply	Number of Characters Per Row	Number of Characters Per Row	Termination Style	Ingress Protection	Display Type	Output Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Control Method	Input Range [Min]	Input Range [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Communications
Omron Automation and Safety E5GC-RX2D6M-000	55 °C	-10 °C	79.83 g	0.176 lb	Process Temperature Controller (Type B E J K L N PLII R S T U W)	24 VAC	4	4	Screw Terminal	IP66 - Dust Tight Water Resistant	Backlight LCD - Dual Color Characters	Relay (3)	45 mm	22.2 mm	Panel Mount	On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C
Omron Automation and Safety E5GC-RX2DCM-000
Omron Automation and Safety E5GC-RX2A6M-000	55 °C	-10 °C	79.83 g	0.176 lb	Process Temperature Controller (Type B E J K L N PLII R S T U W)		4	4	Screw Terminal	IP66 - Dust Tight Water Resistant	Backlight LCD - Dual Color Characters	Relay (3)	45 mm	22.2 mm	Panel Mount	On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	240 VAC	100 VAC
Omron Automation and Safety E5GC-RX2A6M-023
Omron Automation and Safety E5GC-RX1D6M-600	55 °C	-10 °C			Process Temperature Controller (Type B E J K L N PLII R S T U W)	24 VAC	4	4	Screw Terminal	IP66 - Dust Tight Water Resistant	Backlight LCD - Dual Color Characters	Relay (2)	45 mm	22.2 mm	Panel Mount	On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C			Limit Function
Omron Automation and Safety E5GC-RX1D6M-015	55 °C	-10 °C	79.83 g	0.176 lb	Process Temperature Controller (Type B E J K L N PLII R S T U W)	24 VAC	4	4	Screw Terminal	IP66 - Dust Tight Water Resistant	Backlight LCD - Dual Color Characters	Relay (2)	45 mm	22.2 mm	Panel Mount	On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C				RS-485 (CompoWay/F Modbus)
Omron Automation and Safety E5GC-RX2D6M-023
Omron Automation and Safety E5GC-RX1D6M-000	55 °C	-10 °C	79.83 g	0.176 lb	Process Temperature Controller (Type B E J K L N PLII R S T U W)	24 VAC	4	4	Screw Terminal	IP66 - Dust Tight Water Resistant	Backlight LCD - Dual Color Characters	Relay (2)	45 mm	22.2 mm	Panel Mount	On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C
Omron Automation and Safety E5GC-RX1A6M-015	55 °C	-10 °C	79.83 g	0.176 lb	Process Temperature Controller (Type B E J K L N PLII R S T U W)		4	4	Screw Terminal	IP66 - Dust Tight Water Resistant	Backlight LCD - Dual Color Characters	Relay (2)	45 mm	22.2 mm	Panel Mount	On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	240 VAC	100 VAC		RS-485 (CompoWay/F Modbus)
Omron Automation and Safety E5GC-RX1DCM-000	55 °C	-10 °C	79.83 g	0.176 lb	Process Temperature Controller (Type B E J K L N PLII R S T U W)	24 VAC	4	4	Spring Terminal	IP66 - Dust Tight Water Resistant	Backlight LCD - Dual Color Characters	Relay (2)	45 mm	22.2 mm	Panel Mount	On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C
