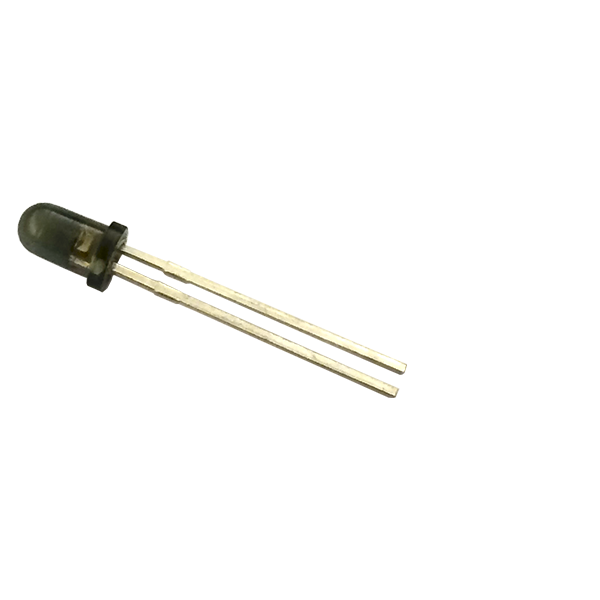

OP505 Series

Catalog

PHOTOTRANSISTORS NARROW RCVNG ANGLE 935NM

Part	Wavelength	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Orientation	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Package / Case	Current - Dark (Id) (Max) [Max]
TT Electronics/BI OP505B	935 nm	30 V	-40 C	100 °C	Through Hole	Top View	5.95 mA	100 mW	T-1	100 nA
TT Electronics/BI OP505W	935 nm	30 V	-40 C	100 °C	Through Hole	Top View	100 µA	100 mW	T-1	100 nA
