245655 Series

Catalog

HARD METRIC CONNECTORS .5MM REC FLOXY 30P H 6MM

Part	Mated Stacking Heights	Number of Positions	Pitch	Pitch	Connector Type	Number of Rows [custom]	Mounting Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Features	Height Above Board	Height Above Board
KYOCERA AVX 245655030600829+T	6 mm	30	0.02 "	0.5 mm	Receptacle Floating	2	Surface Mount	4.75 mm	0.187 in	Gold	Board Guide Solder Retention

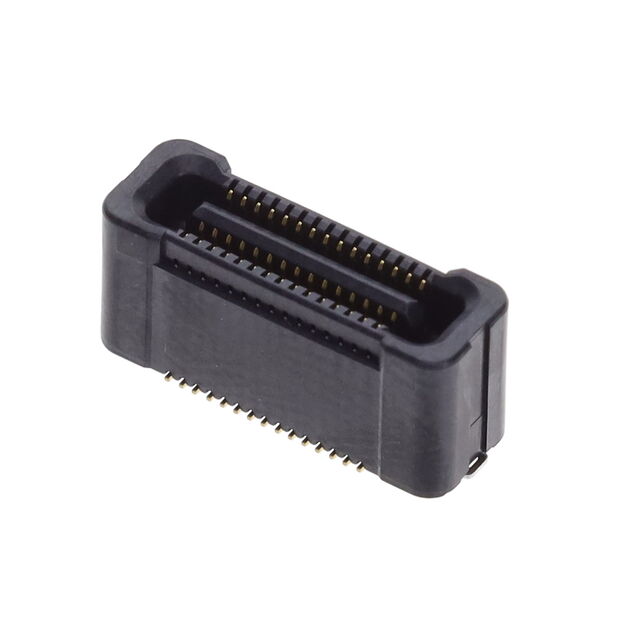

KYOCERA AVX 245655030700829+T	7 mm	30	0.02 "	0.5 mm	Receptacle Floating	2	Surface Mount	5.74 mm	0.226 "	Gold	Board Guide Solder Retention

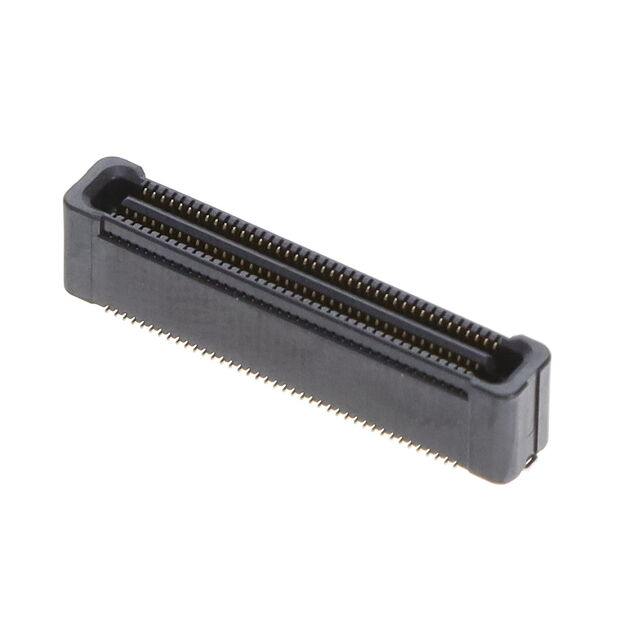

KYOCERA AVX 245655080700829+T	7 mm	80	0.02 "	0.5 mm	Receptacle Floating	2	Surface Mount	5.74 mm	0.226 "	Gold	Board Guide Solder Retention
KYOCERA AVX 245655100700829+T	7 mm	100	0.02 "	0.5 mm	Receptacle Floating	2	Surface Mount	5.74 mm	0.226 "	Gold	Board Guide Solder Retention

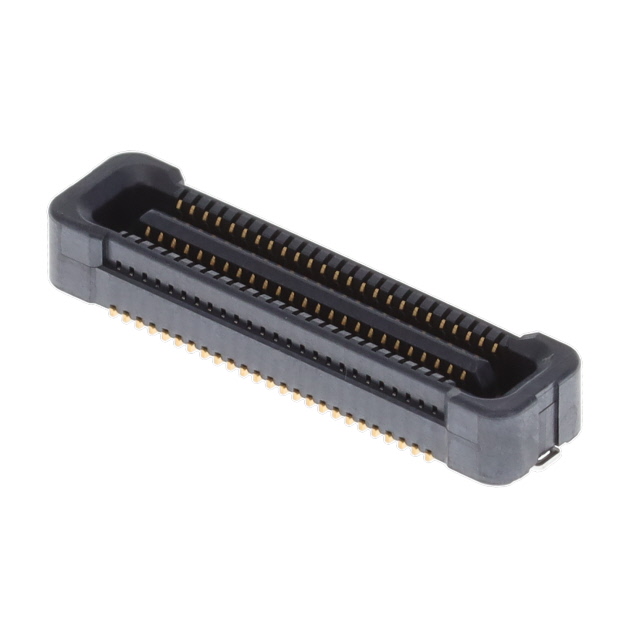

KYOCERA AVX 245655050400829+T	4 mm	50	0.02 "	0.5 mm	Receptacle Floating	2	Surface Mount			Gold	Board Guide Solder Retention	2.75 mm	0.108 in

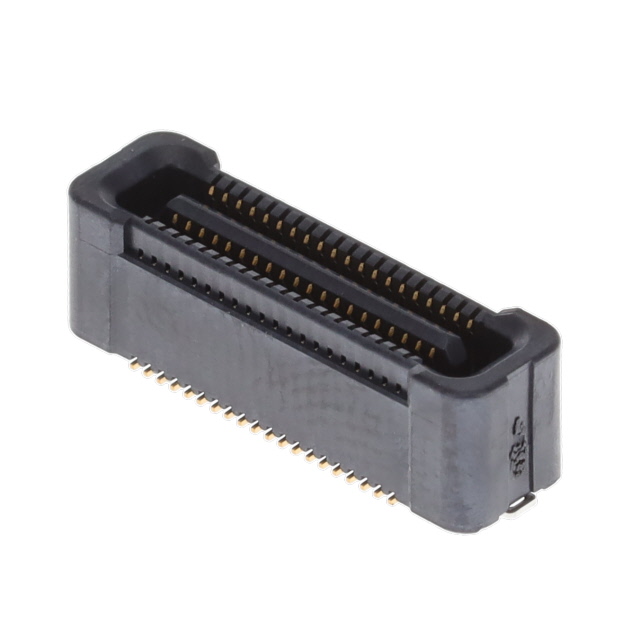

KYOCERA AVX 245655040600829+T	6 mm	40	0.02 "	0.5 mm	Receptacle Floating	2	Surface Mount	4.75 mm	0.187 in	Gold	Board Guide Solder Retention

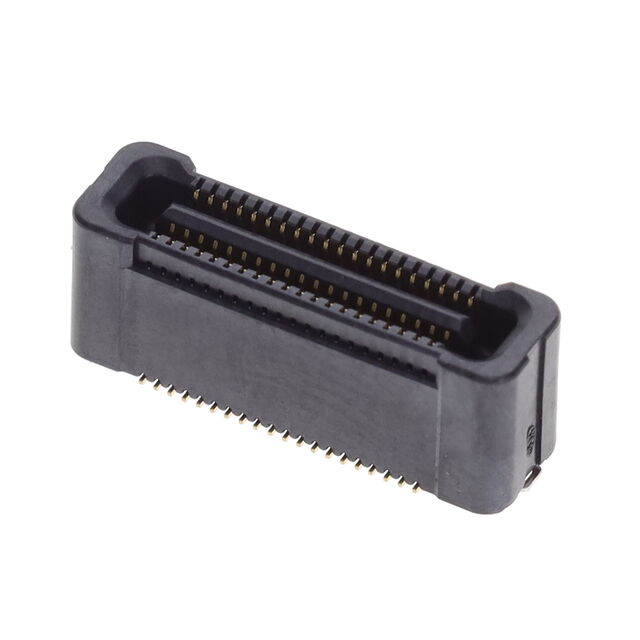

KYOCERA AVX 245655040700829+T	7 mm	40	0.02 "	0.5 mm	Receptacle Floating	2	Surface Mount	5.74 mm	0.226 "	Gold	Board Guide Solder Retention
KYOCERA AVX 245655060400829+T	4 mm	60	0.02 "	0.5 mm	Receptacle Floating	2	Surface Mount				Solder Retention	2.75 mm	0.108 in
KYOCERA AVX 245655050600829+T	6 mm	50	0.02 "	0.5 mm	Receptacle Floating	2	Surface Mount	4.75 mm	0.187 in	Gold	Board Guide Solder Retention

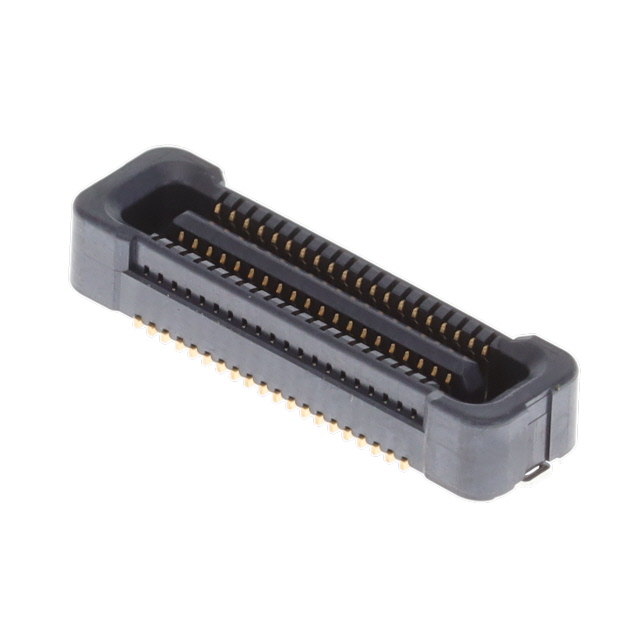

KYOCERA AVX 245655040400829+T	4 mm	40	0.02 "	0.5 mm	Receptacle Floating	2	Surface Mount			Gold	Board Guide Solder Retention	2.75 mm	0.108 in
