LX-101 Series

Catalog

SENSOR REFLECTIVE 10MM PNP

Part	Sensing Method	Connection Method	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Adjustment Type	Sensing Distance	Sensing Distance	Ingress Protection	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Configuration	Response Time	Cable Length	Cable Length

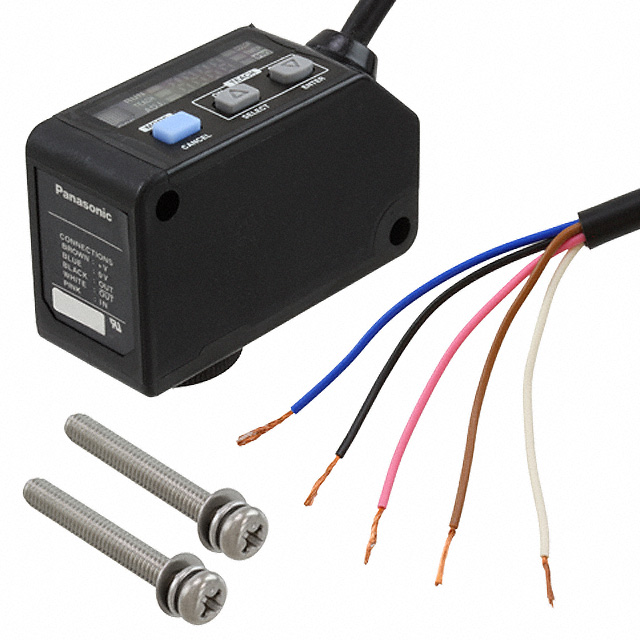

Panasonic Industrial Automation Sales LX-101-P	Reflective	Connector	55 °C	-10 °C	Adjustable	0.394 in	10 mm	IP67	12 V	24 V	PNP - Open Collector	150 µs
Panasonic Industrial Automation Sales LX-101-P-Z	Reflective	Cable	55 °C	-10 °C	Adjustable	0.394 in	10 mm	IP67	12 V	24 V	PNP - Open Collector	150 µs	78.74 in	2 m

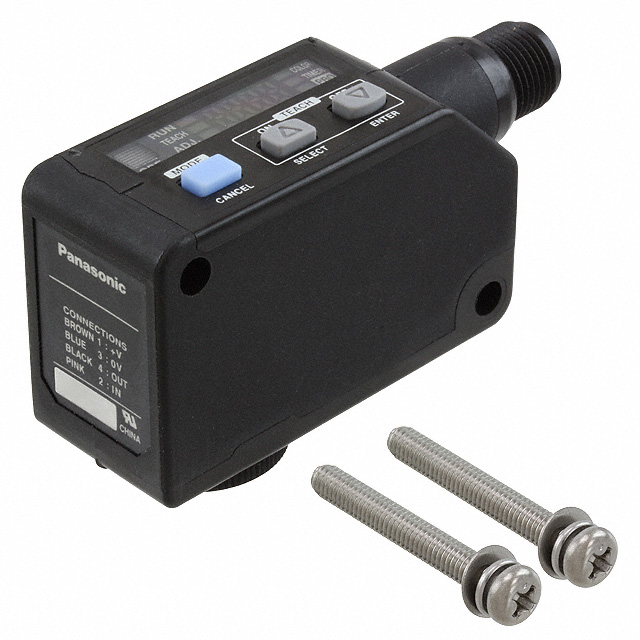

Panasonic Industrial Automation Sales LX-101-Z	Reflective	Cable	55 °C	-10 °C	Adjustable	0.394 in	10 mm	IP67	12 V	24 V	NPN - Open Collector	150 µs	78.74 in	2 m
