316-035 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 70POS 0.156

Part	Material - Insulation	Termination Rows	Card Type	Mounting Type	Contact Type	Contact Finish	Color	Termination	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Features	Read Out	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Number of Rows [custom]	Number of Positions	Gender	Flange Feature	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]

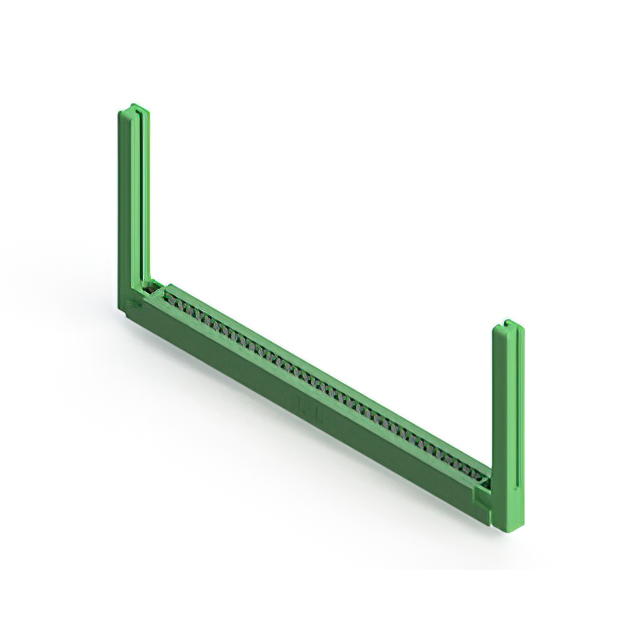

EDAC Inc. 316-035-421-158	Polyester Thermoplastic	1	Non Specified - Dual Edge	Panel Mount Through Hole	Cantilever	Tin	Green	Solder	3.96 mm	0.156 in	-40 C	105 ░C	Card Guides	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	2	70	Female	4-40 Flush Mount Threaded Insert Top Opening	35

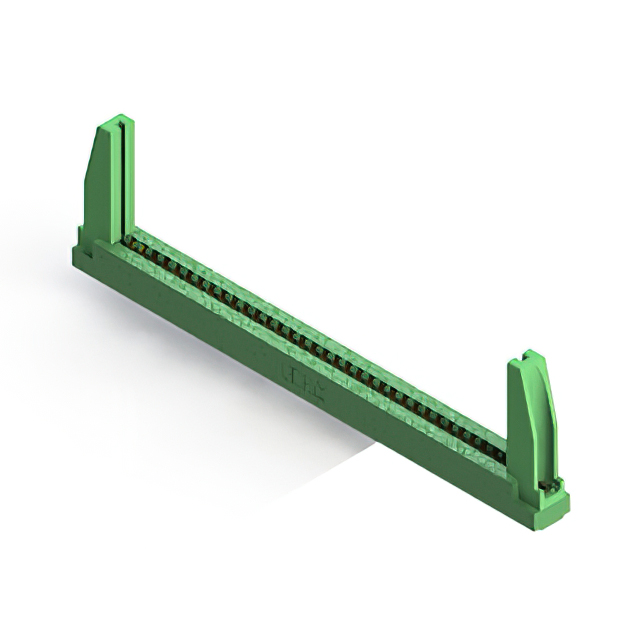

EDAC Inc. 316-035-521-178	Polyester Thermoplastic	1	Non Specified - Dual Edge	Through Hole	Cantilever	Gold	Green	Solder	3.96 mm	0.156 in	-40 C	105 ░C	Card Guides	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	2	35	Female	4-40 Flush Mount Threaded Insert Top Opening	35	0.25 Ám	10 Áin

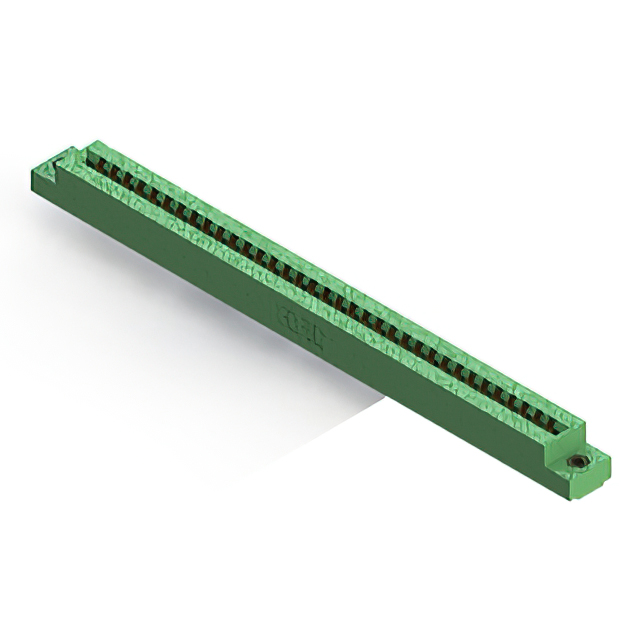

EDAC Inc. 316-035-521-107	Polyester Thermoplastic	1	Non Specified - Dual Edge	Through Hole	Cantilever	Gold	Green	Solder	3.96 mm	0.156 in	-40 C	105 ░C		Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	2	35	Female	Flush Mount M3 Threaded Insert Top Opening	35	0.25 Ám	10 Áin

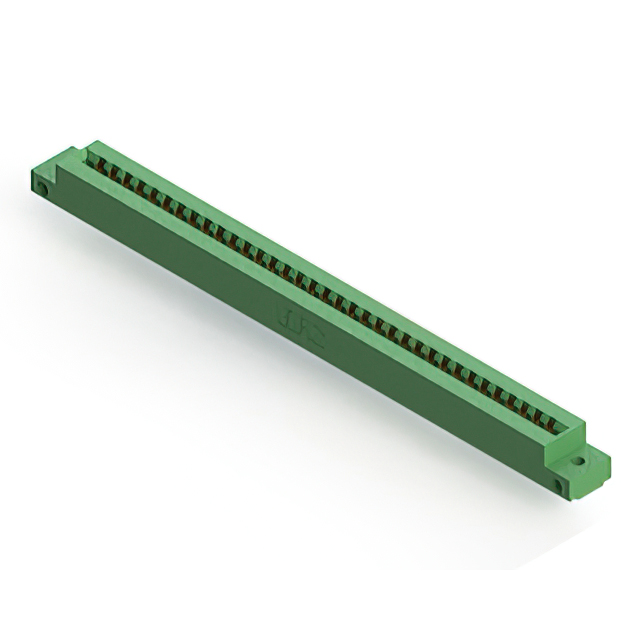

EDAC Inc. 316-035-521-112	Polyester Thermoplastic	1	Non Specified - Dual Edge	Panel Mount Through Hole	Cantilever	Gold	Green	Solder	3.96 mm	0.156 in	-40 C	105 ░C		Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	2	70	Female	Flush Mount Side Opening Unthreaded	35	0.25 Ám	10 Áin	0.128 "	3.25 mm

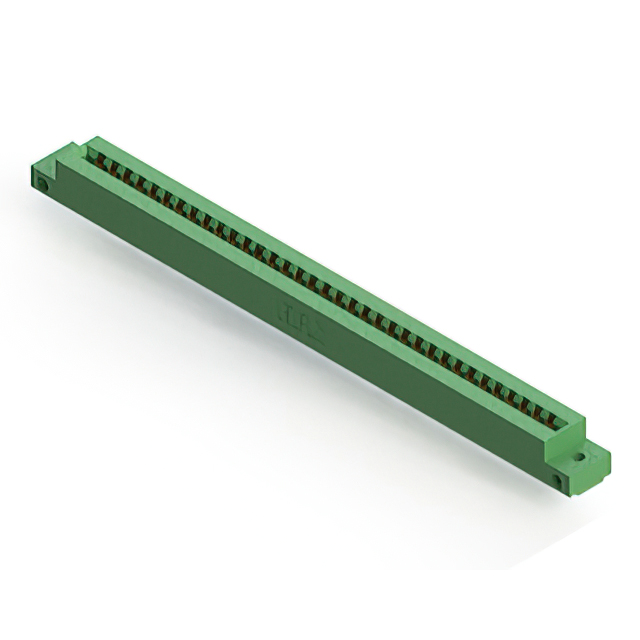

EDAC Inc. 316-035-520-112	Polyester Thermoplastic	1	Non Specified - Dual Edge	Panel Mount Through Hole	Cantilever	Gold	Green	Solder	3.96 mm	0.156 in	-40 C	105 ░C		Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	2	70	Female	Flush Mount Side Opening Unthreaded	35	0.25 Ám	10 Áin	0.128 "	3.25 mm
EDAC Inc. 316-035-500-102	Polyester Thermoplastic	1	Non Specified - Dual Edge	Panel Mount	Cantilever	Gold	Green	Solder Eyelet(s)	3.96 mm	0.156 in	-40 C	105 ░C		Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	2	35	Female	Flush Mount Top Opening Unthreaded	35	0.25 Ám	10 Áin	0.128 "	3.25 mm
EDAC Inc. 316-035-421-108	Polyester Thermoplastic	1	Non Specified - Dual Edge	Panel Mount Through Hole	Cantilever	Tin	Green	Solder	3.96 mm	0.156 in	-40 C	105 ░C		Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	2	70	Female	4-40 Flush Mount Threaded Insert Top Opening	35

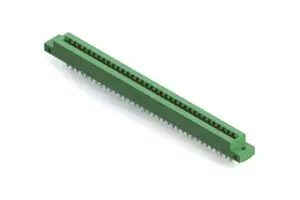

EDAC Inc. 316-035-500-112	Polyester Thermoplastic	1	Non Specified - Dual Edge	Panel Mount	Cantilever	Gold	Green	Solder Eyelet(s)	3.96 mm	0.156 in	-40 C	105 ░C		Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	2	70	Female	Flush Mount Side Opening Unthreaded	35	0.25 Ám	10 Áin	0.128 "	3.25 mm
EDAC Inc. 316-035-421-104	Polyester Thermoplastic	1	Non Specified - Dual Edge	Panel Mount Through Hole	Cantilever	Tin	Green	Solder	3.96 mm	0.156 in	-40 C	105 ░C		Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	2	70	Female	Flush Mount Top Opening Unthreaded	35			0.156 "	3.96 mm

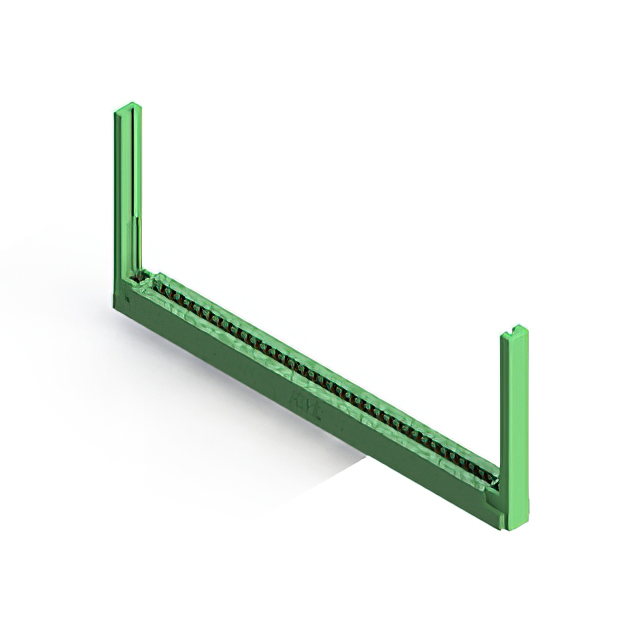

EDAC Inc. 316-035-521-168	Polyester Thermoplastic	1	Non Specified - Dual Edge	Through Hole	Cantilever	Gold	Green	Solder	3.96 mm	0.156 in	-40 C	105 ░C	Card Guides	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	2	35	Female	4-40 Flush Mount Threaded Insert Top Opening	35	0.25 Ám	10 Áin
