C3P0406 Series
Manufacturer: Electroswitch
Beta
⌘K

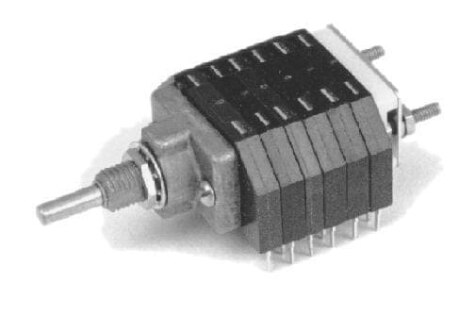

ROTARY SWITCHES 02-06 POS/4P/2 DECKS
| Part | Panel Cutout Dimensions [diameter] | Contact Finish | Termination Style | Angle of Throw | Actuator Length [x] | Number of Decks | Index Stops | Current Rating (Amps) | Number of Positions [Min] | Number of Positions [Max] | Depth Behind Panel [custom] | Mounting Type | Contact Timing | Voltage Rating - AC | Circuit per Deck | Voltage Rating - DC | Number of Poles per Deck | Actuator Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 6.76 mm | Silver | PC Pin | 30 ° | 9.52 mm | 2 | Adjustable | 100 mA 250 mA | 2 | 6 | 30 mm | Panel Mount Right Angle Through Hole | Non-Shorting (BBM) | 125 V | DP6T | 28 V | 2 | Flatted (3.17mm Dia) | Brass |
