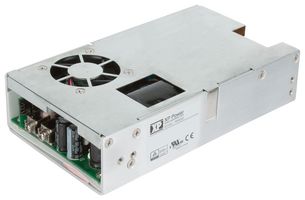

PBR500 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 12V 350W
| Part | Minimum Load Required | Approval Agency | Applications | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Features | Power (Watts) | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Standard Number | Voltage - Isolation | Type | Current - Output 1 | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | CB TUV UL | ITE (Commercial) Medical | Chassis Mount | 80 VAC | 264 VAC | Remote Sense Standby Output Universal Input | 350 W 450 W | 90 % | 70 °C | -10 °C | 1 | 12 V | 101.6 mm | 7 " | 42.7 mm | 177.8 mm | 4 " | 1.68 " | 62368-1 | 4000 V | Open Frame | 29.17 A | ||
XP Power | CB TUV UL | ITE (Commercial) Medical | Chassis Mount | 80 VAC | 264 VAC | Remote Sense Standby Output Universal Input | 400 W 500 W | 90 % | 70 °C | -10 °C | 1 | 24 V | 101.6 mm | 7 " | 42.7 mm | 177.8 mm | 4 " | 1.68 " | 62368-1 | 4000 V | Open Frame | 16.67 A | ||
XP Power | CB TUV UL | ITE (Commercial) Medical | Chassis Mount | 80 VAC | 264 VAC | Remote Sense Standby Output Universal Input | 400 W 500 W | 90 % | 70 °C | -10 °C | 1 | 48 V | 101.6 mm | 7 " | 42.7 mm | 177.8 mm | 4 " | 1.68 " | 62368-1 | 4000 V | Open Frame | 8.34 A | ||
 XP Power | CB TUV UL | ITE (Commercial) Medical | Chassis Mount | 80 VAC | 264 VAC | Remote Sense Standby Output Universal Input | 400 W 500 W | 90 % | 70 °C | -10 °C | 1 | 24 V | 101.6 mm | 7 " | 43.2 mm | 177.8 mm | 4 " | 1.7 " | 62368-1 | 4000 V | Enclosed | 16.67 A | ||
 XP Power | CB TUV UL | ITE (Commercial) Medical | Chassis Mount | 80 VAC | 264 VAC | Remote Sense Standby Output Universal Input | 400 W 500 W | 90 % | 70 °C | -10 °C | 1 | 101.6 mm | 7 " | 42.7 mm | 177.8 mm | 4 " | 1.68 " | 62368-1 | 4000 V | Open Frame | 11.12 A | 36 V | ||
 XP Power | CB TUV UL | ITE (Commercial) Medical | Chassis Mount | 80 VAC | 264 VAC | Remote Sense Standby Output Universal Input | 350 W 450 W | 90 % | 70 °C | -10 °C | 1 | 12 V | 101.6 mm | 7 " | 43.2 mm | 177.8 mm | 4 " | 1.7 " | 62368-1 | 4000 V | Enclosed | 29.17 A | ||
 XP Power | CB TUV UL | ITE (Commercial) Medical | Chassis Mount | 80 VAC | 264 VAC | Remote Sense Standby Output Universal Input | 400 W 500 W | 90 % | 70 °C | -10 °C | 1 | 101.6 mm | 7 " | 43.2 mm | 177.8 mm | 4 " | 1.7 " | 62368-1 | 4000 V | Enclosed | 11.12 A | 36 V |
