PRA.M0 Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 7P GOLD SLDR CUP
| Part | Shell Material | Features | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Ingress Protection | Mounting Type | Color | Shielding | Applications | Connector Type | Contact Finish - Mating | Backshell Material, Plating | Fastening Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Number of Positions | Primary Material | Insert Material | Shell Size - Insert | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

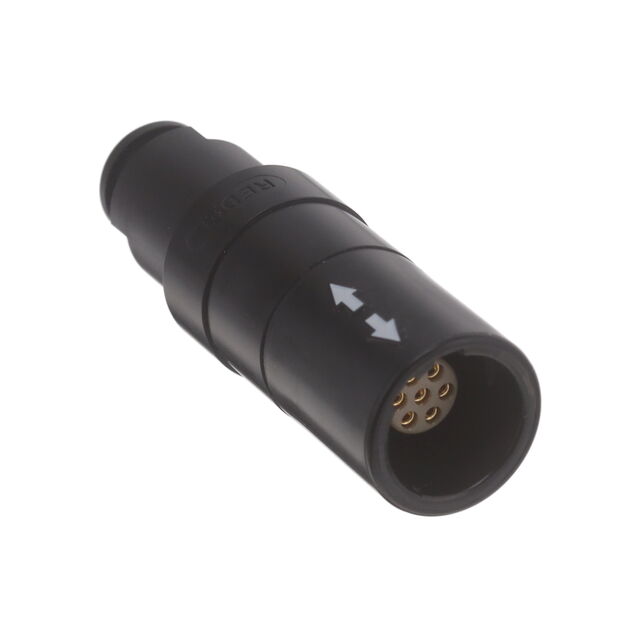

Polyetherimide (PEI) | Backshell | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | IP50 | Free Hanging (In-Line) | Black | Unshielded | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Gold | Polyetherimide (PEI) | Detent Lock Push-Pull | 5 A | -50 °C | 170 °C | A | 7 | Plastic | Polyetheretherketone (PEEK) | ||||||
Polyetherimide (PEI) | Backshell | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | IP50 | Free Hanging (In-Line) | Black | Unshielded | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Gold | Polyetherimide (PEI) | Detent Lock Push-Pull | 7 A | -50 °C | 170 °C | A | Plastic | Polyetheretherketone (PEEK) | M05 | ||||||
LEMO | Polysulfone (PSU) | Backshell | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | IP50 | Free Hanging (In-Line) | Black Blue | Unshielded | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Gold | Polysulfone (PSU) | Detent Lock Push-Pull | 8 A | -50 °C | 150 °C | A | 4 | Plastic | Polyetheretherketone (PEEK) | M04 | ||||

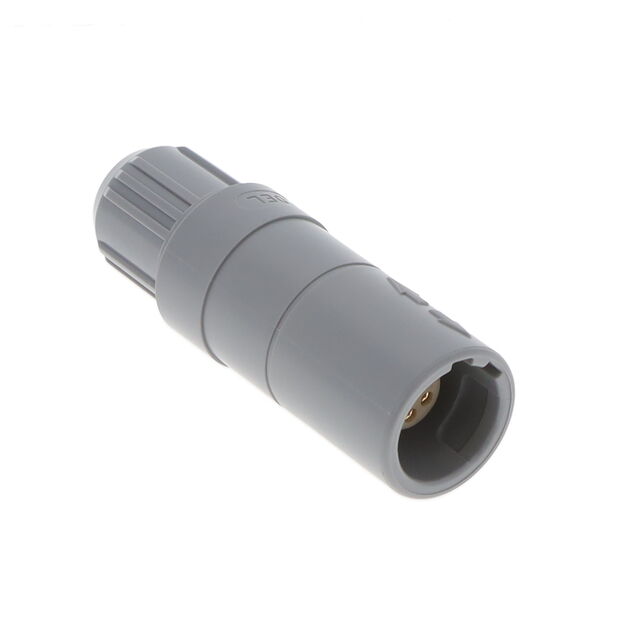

LEMO | Polysulfone (PSU) | Backshell | IP50 | Free Hanging (In-Line) | Gray | Unshielded | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Gold | Polysulfone (PSU) | Detent Lock Push-Pull | 5 A | -50 °C | 150 °C | A | 8 | Plastic | Polyetheretherketone (PEEK) | M08 | 0.157 in | 0.205 in | 4 mm | 5.2 mm | ||||
 LEMO | Polysulfone (PSU) | Backshell | IP50 | Free Hanging (In-Line) | Gray | Unshielded | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Gold | Polysulfone (PSU) | Detent Lock Push-Pull | 6 A | -50 °C | 150 °C | A | 6 | Plastic | Polyetheretherketone (PEEK) | M06 | 0.157 in | 0.205 in | 4 mm | 5.2 mm |
