9176-650 Series
Manufacturer: KYOCERA AVX
Beta
⌘K

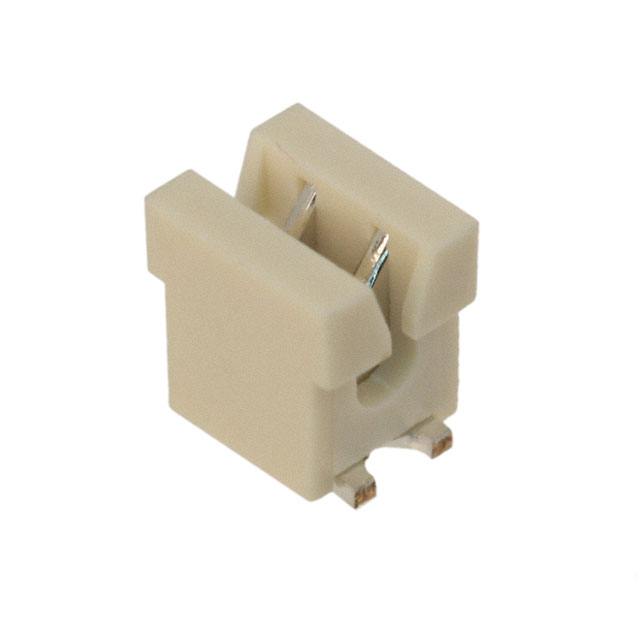

HEADERS & WIRE HOUSINGS 1P 24AWG SMT WIRE STOP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Style | Connector Type | Mounting Type | Termination | Contact Material | Housing Material | Wire Gauge | Features | Number of Positions | Housing Color | Contact Finish | Voltage Rating | Current Rating (Amps) | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 125 °C | -40 C | Board to Cable/Wire | Contact IDC | Surface Mount | Solder | Phosphor Bronze | Glass Filled Nylon Polyamide (PA) | 24 AWG | Cap (Cover) | 1 | White | Tin | |||
 KYOCERA AVX | 125 °C | -40 C | Board to Cable/Wire | Contact IDC | Surface Mount | Solder | Phosphor Bronze | Glass Filled Nylon Polyamide (PA) | 18 AWG | Cap (Cover) | 1 | White | Tin | 600 V | 9 A | 3 cycles |
KYOCERA AVX | 125 °C | -40 C | Board to Cable/Wire | Contact IDC | Surface Mount | Solder | Phosphor Bronze | Glass Filled Nylon Polyamide (PA) | 20 AWG | Cap (Cover) | 1 | White | Tin | 600 V | 8 A | 3 cycles |
