RE17L Series

Catalog

TIME DELAY RELAY, SPDT, 100H, 250VAC

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Circuit	Delay Time [Max]	Delay Time [Min]	Relay Type	Timing Adjustment Method	Mounting Type	Contact Rating @ Voltage	Termination Style	Timing Initiate Method	Function
SCHNEIDER ELECTRIC RE17LAMW	24 VAC	240 VAC	SPDT (1 Form C)	100 Hrs	0.1 Sec	Solid State Relay	Screwdriver Slot	DIN Rail	20 A 250 VAC	Screw Terminal	Input Voltage	On-Delay

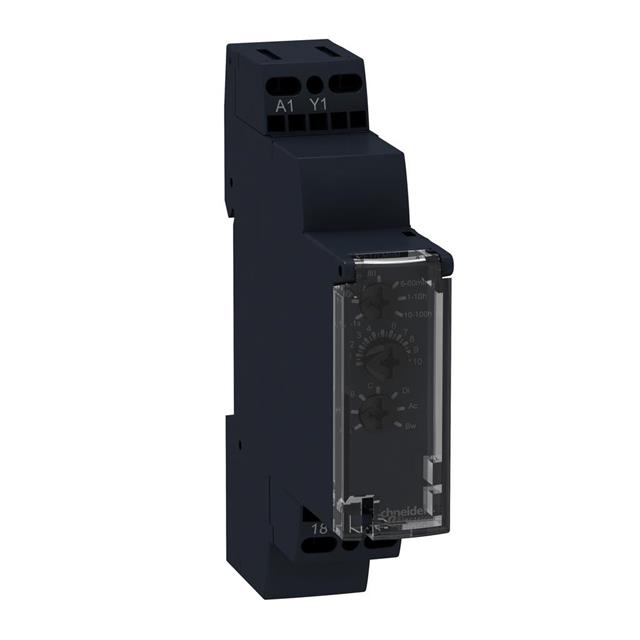

SCHNEIDER ELECTRIC RE17LMBM	24 VAC	240 VAC		100 Hrs	0.1 Sec	Solid State Relay	Screwdriver Slot	DIN Rail	20 A 250 VAC	Screw Terminal	Input Voltage	Programmable (Multi-Function)

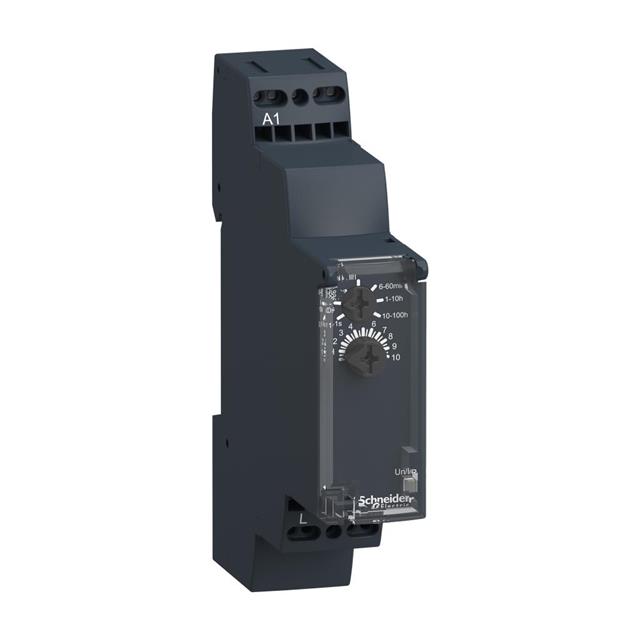

SCHNEIDER ELECTRIC RE17LAMWS	24 VAC	240 VAC	SPDT (1 Form C)	100 Hrs	0.1 Sec	Solid State Relay	Screwdriver Slot	DIN Rail	20 A 250 VAC	Spring Terminal	Input Voltage	On-Delay
SCHNEIDER ELECTRIC RE17LCBM	24 VAC	240 VAC		100 Hrs	0.1 Sec	Solid State Relay	Screwdriver Slot	DIN Rail	20 A 250 VAC	Screw Terminal	Input Voltage	Off-Delay
