HSCDRNN Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 30PSIA 0.08" 2.97V 8DIP

Part	Features	Output Type	Supplier Device Package	Output [Min]	Output [Max]	Package / Case	Package / Case	Port Style	Accuracy	Port Size [x]	Port Size	Port Size [x]	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure	Operating Pressure	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Pressure Type	Output	Maximum Pressure	Maximum Pressure	Operating Pressure [custom]	Operating Pressure [custom]

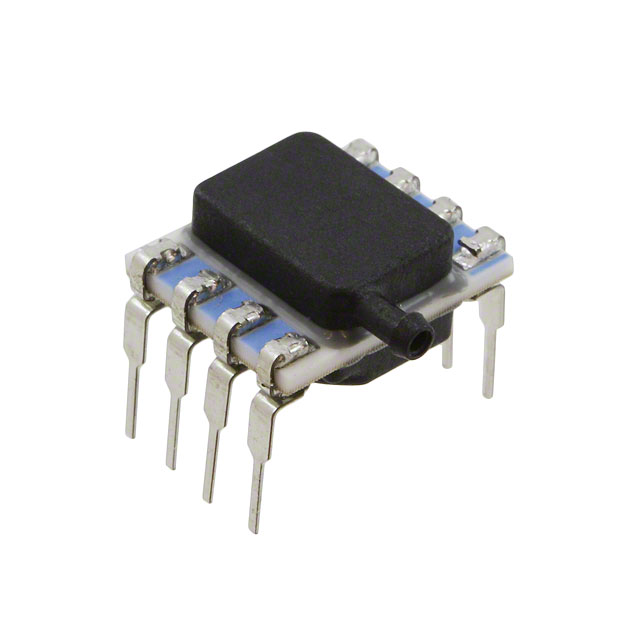

Honeywell Sensing and Productivity Solutions HSCDRNN030PAAA3	Amplified Output Temperature Compensated	Analog Voltage	8-DIP	0.33 V	2.97 V	0.524 " 13.3 mm	8-DIP	Barbed	0.25 %	1.93 mm	Male	0.08 "	60 PSI	413.69 kPa	206.84 kPa	30 PSI	3.6 V	3 V	Board Mount	Through Hole	85 °C	-20 C	PC Pin
Honeywell Sensing and Productivity Solutions HSCDRNN060PGSA3	Amplified Output Temperature Compensated	SPI	8-DIP			0.524 " 13.3 mm	8-DIP	Barbed	0.25 %	1.93 mm	Male	0.08 "	120 PSI	827.37 kPa	413.69 kPa	60 PSI	3.6 V	3 V	Board Mount	Through Hole	85 °C	-20 C	PC Pin	Vented Gauge	12 b
Honeywell Sensing and Productivity Solutions HSCDRNN1.6BASA3	Amplified Output Temperature Compensated	SPI	8-DIP			0.524 " 13.3 mm	8-DIP	Barbed	0.25 %	1.93 mm	Male	0.08 "			160 kPa	23.21 PSI	3.6 V	3 V	Board Mount	Through Hole	85 °C	-20 C	PC Pin		12 b	400 kPa	58.02 PSI
Honeywell Sensing and Productivity Solutions HSCDRNN100PGAA3	Amplified Output Temperature Compensated	Analog Voltage	8-DIP	0.33 V	2.97 V	0.524 " 13.3 mm	8-DIP	Barbed	0.25 %	1.93 mm	Male	0.08 "	250 PSI	1723.69 kPa	689.48 kPa	100 PSI	3.6 V	3 V	Board Mount	Through Hole	85 °C	-20 C	PC Pin	Vented Gauge
Honeywell Sensing and Productivity Solutions HSCDRNN001PG2A3
Honeywell Sensing and Productivity Solutions HSCDRNN100MDSA5	Amplified Output Temperature Compensated	SPI	8-DIP			0.524 " 13.3 mm	8-DIP	Barbed	0.25 %	1.93 mm	Male	0.08 "			10 kPa	1.45 PSI	5.25 V	4.75 V	Board Mount	Through Hole	85 °C	-20 C	PC Pin	Differential	12 b	140 kPa	20.31 PSI
Honeywell Sensing and Productivity Solutions HSCDRNN015PGAA5	Amplified Output Temperature Compensated	Analog Voltage	8-DIP	0.5 V	4.5 V	0.524 " 13.3 mm	8-DIP	Barbed	0.25 %	1.93 mm	Male	0.08 "	30 PSI	206.84 kPa			5.25 V	4.75 V	Board Mount	Through Hole	85 °C	-20 C	PC Pin	Vented Gauge				15 PSI	103.42 kPa
Honeywell Sensing and Productivity Solutions HSCDRNN015PA7A3	Amplified Output Temperature Compensated	I2C	8-DIP			0.524 " 13.3 mm	8-DIP	Barbed	0.25 %	1.93 mm	Male	0.08 "	30 PSI	206.84 kPa			3.6 V	3 V	Board Mount	Through Hole	85 °C	-20 C	PC Pin		12 b			15 PSI	103.42 kPa
Honeywell Sensing and Productivity Solutions HSCDRNN1.6BA2A3	Amplified Output Temperature Compensated	I2C	8-DIP			0.524 " 13.3 mm	8-DIP	Barbed	0.25 %	1.93 mm	Male	0.08 "			160 kPa	23.21 PSI	3.6 V	3 V	Board Mount	Through Hole	85 °C	-20 C	PC Pin		12 b	400 kPa	58.02 PSI
Honeywell Sensing and Productivity Solutions HSCDRNN030PA3A3	Amplified Output Temperature Compensated	I2C	8-DIP			0.524 " 13.3 mm	8-DIP	Barbed	0.25 %	1.93 mm	Male	0.08 "	60 PSI	413.69 kPa	206.84 kPa	30 PSI	3.6 V	3 V	Board Mount	Through Hole	85 °C	-20 C	PC Pin		12 b
