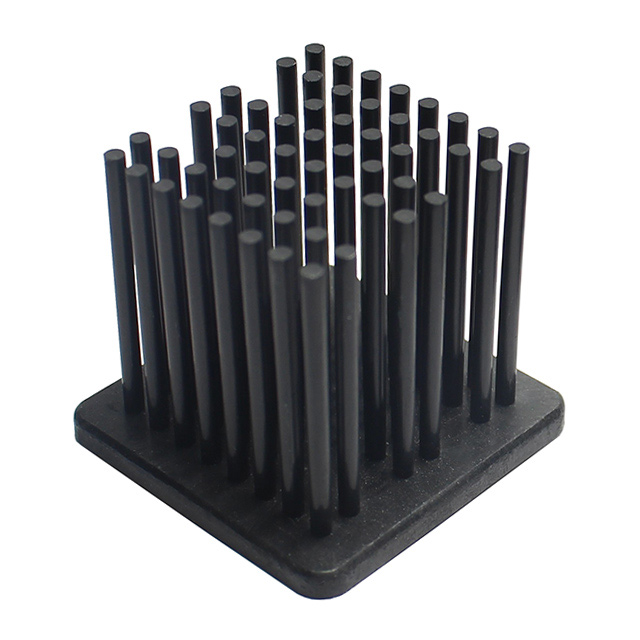

APR31 Series

Manufacturer: CTS Thermal Management Products

Catalog

HEATSINK FORGED BLK ANO TOP MNT

Part	Shelf Life	Shape	Width [x]	Width [x]	Thermal Resistance @ Forced Air Flow	Type	Package Cooled	Thermal Resistance @ Natural	Attachment Method	Material	Material Finish	Length	Length	Fin Height [custom]	Fin Height [custom]	Fin Height	Fin Height	Fin Height [custom]	Fin Height [custom]	Fin Height [z]	Fin Height [z]
CTS Thermal Management Products APR31-31-12CB/A01	24 Months	Pin Fins Square	1.205 in	30.61 mm	3.79 °C/W	Top Mount	ASIC BGA CPU LGA	12.37 °C/W	Thermal Tape Adhesive (Included)	Aluminum Alloy	Black Anodized	1.205 in	30.61 mm	0.457 in	11.6 mm
CTS Thermal Management Products APR31-31-18CB/A01	24 Months	Pin Fins Square	1.205 in	30.61 mm	3.26 °C/W	Top Mount	ASIC BGA CPU LGA	11.47 °C/W	Thermal Tape Adhesive (Included)	Aluminum Alloy	Black Anodized	1.205 in	30.61 mm			0.693 in	17.6 mm
CTS Thermal Management Products APR31-31-21CB/A01	24 Months	Pin Fins Square	1.205 in	30.61 mm	3.03 °C/W	Top Mount	ASIC BGA CPU LGA	11.1 °C/W	Thermal Tape Adhesive (Included)	Aluminum Alloy	Black Anodized	1.205 in	30.61 mm			0.811 in	20.6 mm
CTS Thermal Management Products APR31-31-23CB/A01	24 Months	Pin Fins Square	1.205 in	30.61 mm	2.78 °C/W	Top Mount	ASIC BGA CPU LGA	10.71 °C/W	Thermal Tape Adhesive (Included)	Aluminum Alloy	Black Anodized	1.205 in	30.61 mm					22.61 mm	0.89 in
CTS Thermal Management Products APR31-31-28CB/A01	24 Months	Pin Fins Square	1.205 in	30.61 mm	2.52 °C/W	Top Mount	ASIC BGA CPU LGA	9.87 °C/W	Thermal Tape Adhesive (Included)	Aluminum Alloy	Black Anodized	1.205 in	30.61 mm							27.6 mm	1.087 in
CTS Thermal Management Products APR31-31-33CB/A01	24 Months	Pin Fins Square	1.205 in	30.61 mm	2.33 °C/W	Top Mount	ASIC BGA CPU LGA	9.43 °C/W	Thermal Tape Adhesive (Included)	Aluminum Alloy	Black Anodized	1.205 in	30.61 mm			1.283 in	32.6 mm
CTS Thermal Management Products APR31-31-15CB/A01	24 Months	Pin Fins Square	1.205 in	30.61 mm	3.53 °C/W	Top Mount	ASIC BGA CPU LGA	11.86 °C/W	Thermal Tape Adhesive (Included)	Aluminum Alloy	Black Anodized	1.205 in	30.61 mm	0.575 in			14.6 mm
