1500 VDC 4.5 AMP PHOTOVOLTAIC FUSE
Description
AI

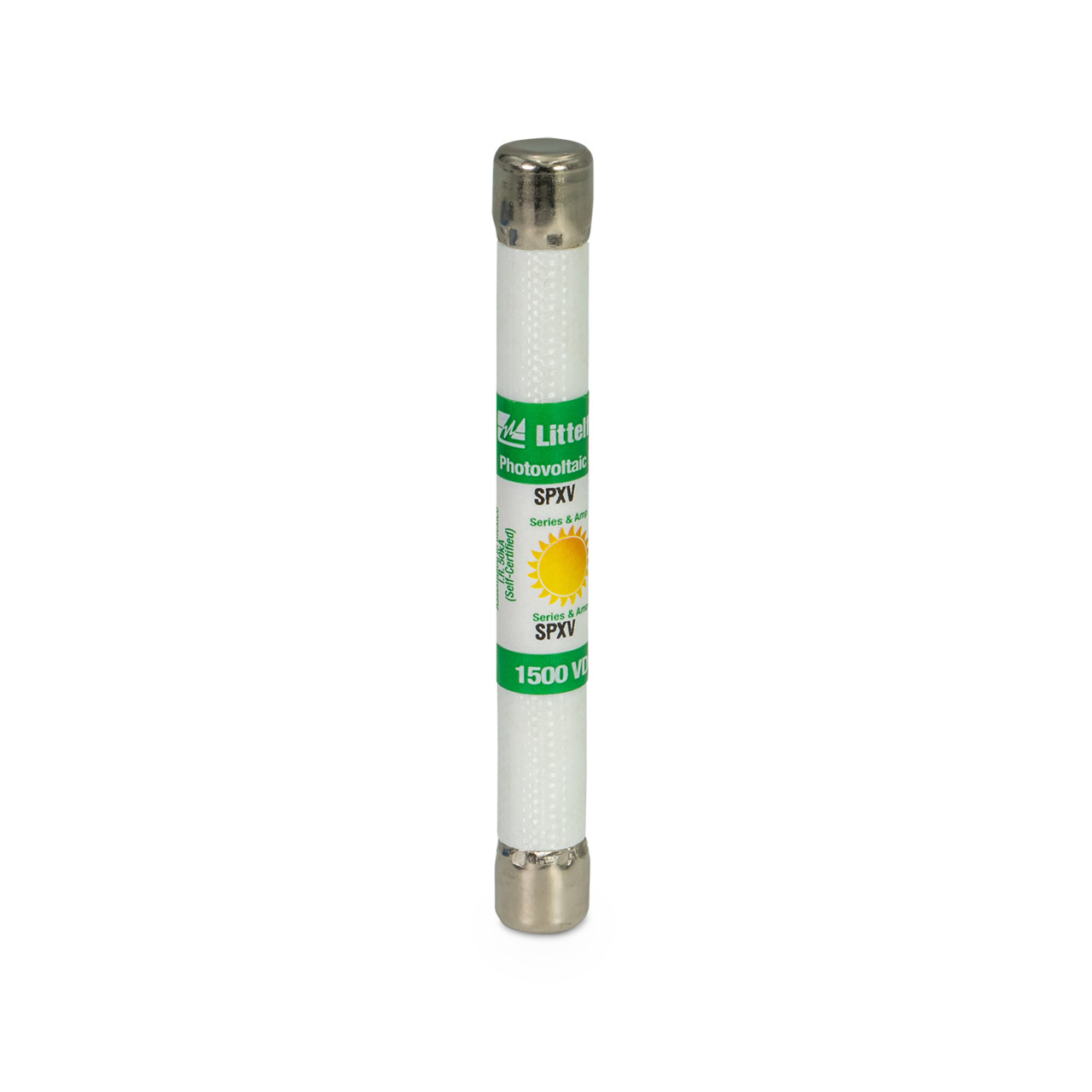

The Littelfuse SPXV solar string fuse is designed specifically for 1–60 A 1500 V dc applications.
Beta
⌘K
1500 VDC 4.5 AMP PHOTOVOLTAIC FUSE
1500 VDC 4.5 AMP PHOTOVOLTAIC FUSE
| Part | Breaking Capacity @ Rated Voltage | Mounting Type | Current Rating (Amps) | Applications | Fuse Type | Package / Case | Approval Agency | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [diameter] | Voltage Rating - DC | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 50 kA | Requires Holder | 4.5 A | Solar (Photovoltaic) | Cartridge | Cartridge Non-Standard | CE gPV UL | 84.65 mm | 10.31 mm | 3.333 in | 0.406 " | 1.5 kV | Fast Blow |
 LITTELFUSE | 50 kA | Requires Holder | 4.5 A | Solar (Photovoltaic) | Cartridge | Cartridge Non-Standard | CE gPV UL | 84.65 mm | 10.31 mm | 3.333 in | 0.406 " | 1.5 kV | Fast Blow |
