HF659 Series

Catalog

CABLE RIBBON 10COND 0.05 GRAY

Part	Conductor Material	Insulation Resistance	First Conductor Mark	Voltage	Ratings	Number of Conductors [custom]	Length	Length	Cable Type	Length [x]	Length [x]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Shielding	Wire Gauge	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Ribbon Width [custom]	Ribbon Width [custom]	Features	Number of Conductors	Length
3M Electronic Specialty HF659/10SF	Copper Tinned	10 GOhm	Blue	150 V	UL Style 22170	10	3.05 m 7.62 m 30.48 m 83.82 m	10 ft 25 ft 100 ' 275 ft	Flat Cable Round Jacket	50 ft	15.24 m	Polyolefin (PO)	36 AWG	7 Strands	Gray	Shielded	28 AWG	0.05 in	1.27 mm	75 ░C	-15 °C	0.45 in	11.43 mm	Splice Free Zippable

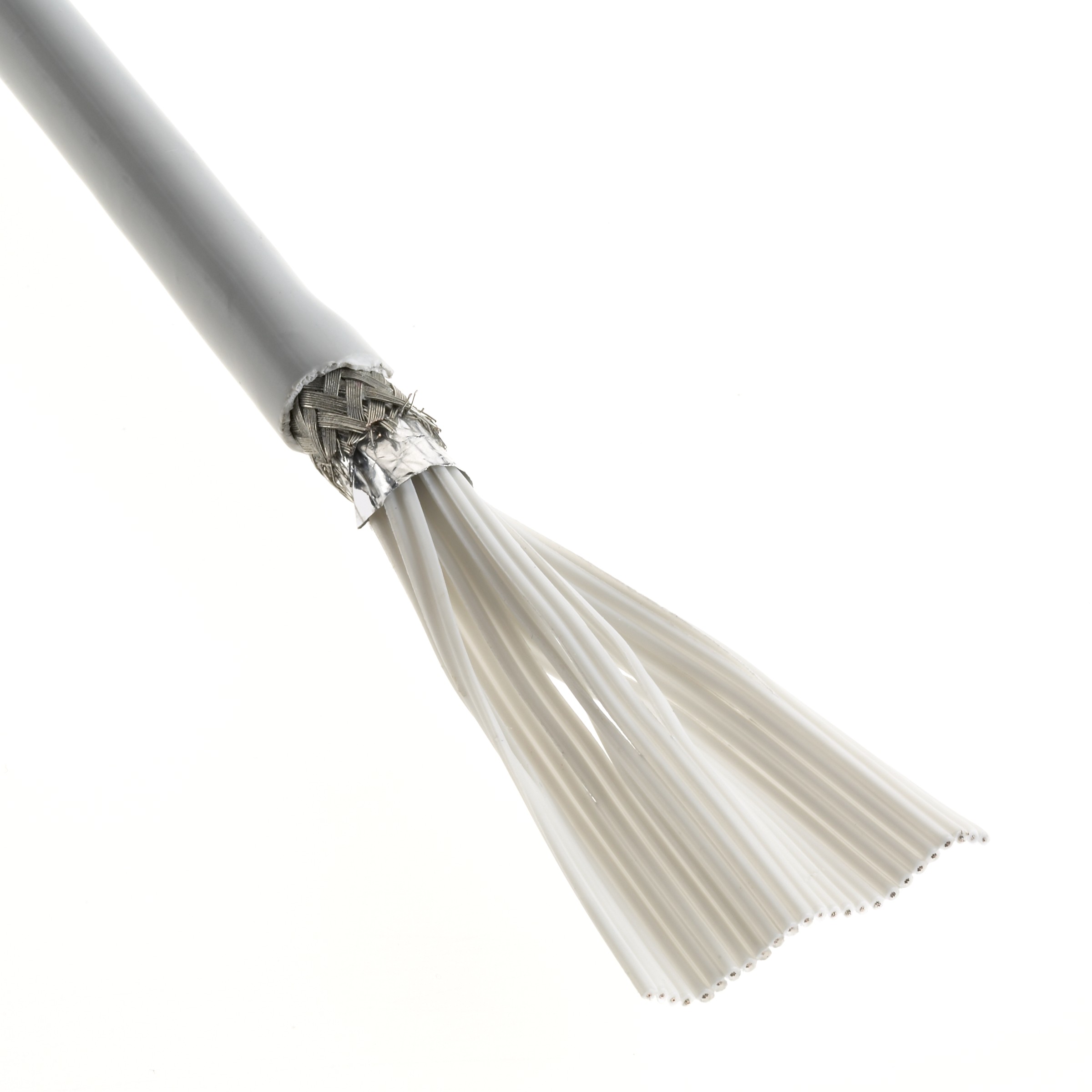

3M Electronic Specialty HF659/50	Copper Tinned	10 GOhm	Blue	150 V	UL Style 22170		83.82 m	275 ft	Flat Cable Round Jacket			Polyolefin (PO)	36 AWG	7 Strands	Gray	Shielded	28 AWG	0.05 in	1.27 mm	75 ░C	-15 °C	2.45 in	62.23 mm	Zippable	50
3M Electronic Specialty HF659/37SF	Copper Tinned	10 GOhm	Blue	150 V	UL Style 22170		3.05 m 7.62 m 30.48 m 83.82 m	10 ft 25 ft 100 ' 275 ft	Flat Cable Round Jacket	50 ft	15.24 m	Polyolefin (PO)	36 AWG	7 Strands	Gray	Shielded	28 AWG	0.05 in	1.27 mm	75 ░C	-15 °C	1.8 in	45.72 mm	Splice Free Zippable	37	Enter Number of Feet in Order Quantity
3M Electronic Specialty HF659/09SF	Copper Tinned	10 GOhm	Blue	150 V	UL Style 22170		3.05 m 7.62 m 30.48 m 83.82 m	10 ft 25 ft 100 ' 275 ft	Flat Cable Round Jacket	50 ft	15.24 m	Polyolefin (PO)	36 AWG	7 Strands	Gray	Shielded	28 AWG	0.05 in	1.27 mm	75 ░C	-15 °C	0.402 in	10.2 mm	Splice Free Zippable	9
3M Electronic Specialty HF659/20SF	Copper Tinned	10 GOhm	Blue	150 V	UL Style 22170		30.48 m 83.82 m	100 ' 275 ft	Flat Cable Round Jacket			Polyolefin (PO)	36 AWG	7 Strands	Gray	Shielded	28 AWG	0.05 in	1.27 mm	75 ░C	-15 °C	0.95 in	24.13 mm	Splice Free Zippable	20
3M Electronic Specialty HF659/10	Copper Tinned	10 GOhm	Blue	150 V	UL Style 22170	10	83.82 m	275 ft	Flat Cable Round Jacket			Polyolefin (PO)	36 AWG	7 Strands	Gray	Shielded	28 AWG	0.05 in	1.27 mm	75 ░C	-15 °C	0.45 in	11.43 mm	Zippable
3M Electronic Specialty HF659/16SF	Copper Tinned	10 GOhm	Blue	150 V	UL Style 22170		3.05 m 7.62 m 30.48 m 83.82 m	10 ft 25 ft 100 ' 275 ft	Flat Cable Round Jacket	50 ft	15.24 m	Polyolefin (PO)	36 AWG	7 Strands	Gray	Shielded	28 AWG	0.05 in	1.27 mm	75 ░C	-15 °C	0.75 in	19.05 mm	Splice Free Zippable	16
3M Electronic Specialty HF659/50SF	Copper Tinned	10 GOhm	Blue	150 V	UL Style 22170		83.82 m	275 ft	Flat Cable Round Jacket			Polyolefin (PO)	36 AWG	7 Strands	Gray	Shielded	28 AWG	0.05 in	1.27 mm	75 ░C	-15 °C	2.45 in	62.23 mm	Splice Free Zippable	50
3M Electronic Specialty HF659/09	Copper Tinned	10 GOhm	Blue	150 V	UL Style 22170		83.82 m	275 ft	Flat Cable Round Jacket			Polyolefin (PO)	36 AWG	7 Strands	Gray	Shielded	28 AWG	0.05 in	1.27 mm	75 ░C	-15 °C	0.402 in	10.2 mm	Zippable	9
3M Electronic Specialty HF659/60	Copper Tinned	10 GOhm	Blue	150 V	UL Style 22170		83.82 m	275 ft	Flat Cable Round Jacket			Polyolefin (PO)	36 AWG	7 Strands	Gray	Shielded	28 AWG	0.05 in	1.27 mm	75 ░C	-15 °C	2.95 in	74.93 mm	Zippable	60
