333-070 Series
Manufacturer: EDAC Inc.
Beta
⌘K

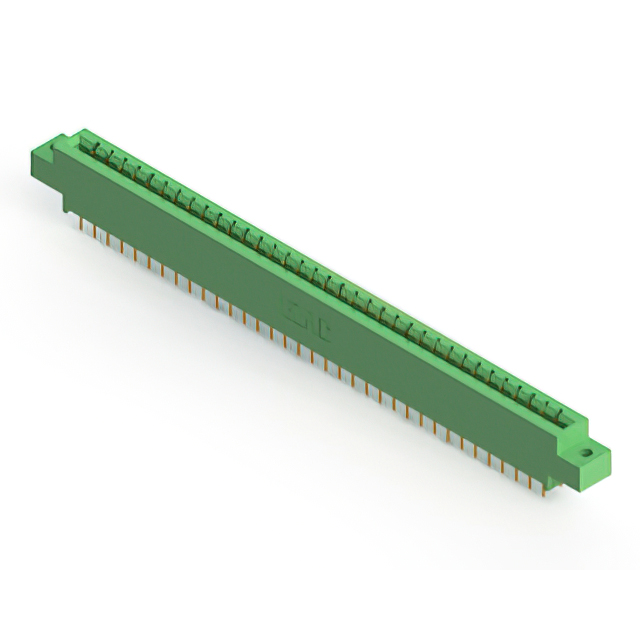

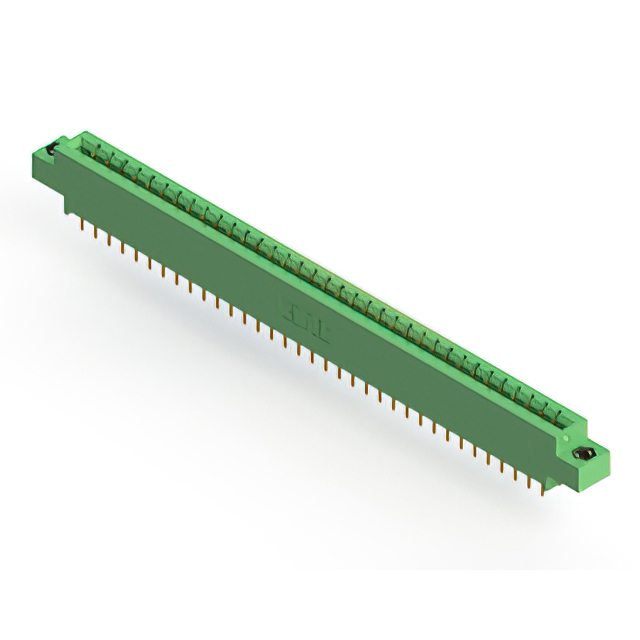

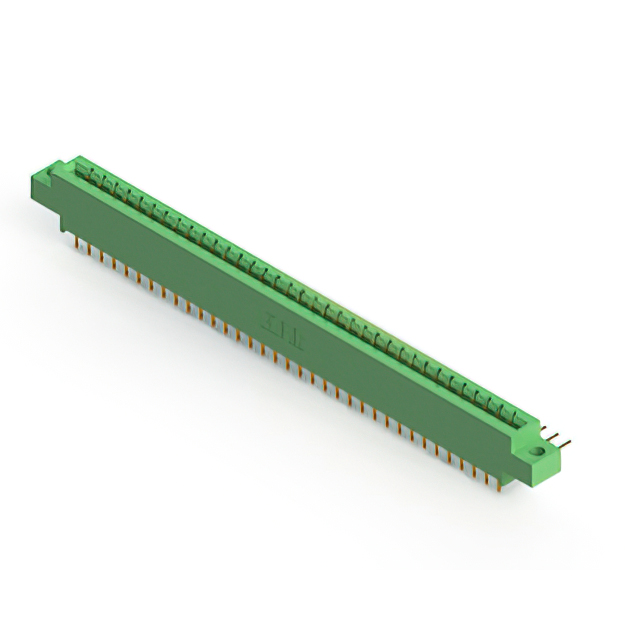

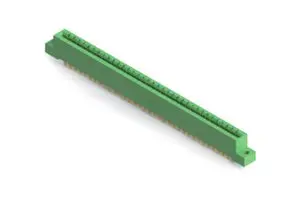

CONN EDGE DUAL FMALE 70POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Termination | Contact Material | Contact Finish | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row | Color | Card Type | Pitch | Pitch | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 70 | -40 C | 105 ░C | Cantilever | Dual | 0.25 Ám | 10 Áin | Right Angle Through Hole | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Copper Alloy | Gold | Female | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 35 | Green | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 70 | -40 C | 105 ░C | Cantilever | Dual | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Copper Alloy | Gold | Female | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 35 | Green | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Card Extender |
 EDAC Inc. | Polyester Thermoplastic | 2 | 70 | -40 C | 105 ░C | Cantilever | Dual | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Copper Alloy | Gold | Female | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 35 | Green | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Card Extender |
 EDAC Inc. | Polyester Thermoplastic | 2 | 70 | -40 C | 105 ░C | Cantilever | Dual | 0.25 Ám | 10 Áin | Right Angle Through Hole | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Copper Alloy | Gold | Female | 0.156 " | 3.96 mm | 35 | Green | Non Specified - Dual Edge | 3.96 mm | 0.156 in | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 70 | -40 C | 105 ░C | Cantilever | Dual | 0.25 Ám | 10 Áin | Through Hole | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Copper Alloy | Gold | Female | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 35 | Green | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 70 | -40 C | 105 ░C | Cantilever | Dual | 0.25 Ám | 10 Áin | Through Hole | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Copper Alloy | Gold | Female | 35 | Green | Non Specified - Dual Edge | 3.96 mm | 0.156 in | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 70 | -40 C | 105 ░C | Cantilever | Dual | 0.25 Ám | 10 Áin | Through Hole | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Copper Alloy | Gold | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 35 | Green | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 70 | -40 C | 105 ░C | Cantilever | Dual | 0.25 Ám | 10 Áin | Through Hole | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Copper Alloy | Gold | Female | 0.128 " | 3.25 mm | 35 | Green | Non Specified - Dual Edge | 3.96 mm | 0.156 in | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 70 | -40 C | 105 ░C | Cantilever | Dual | 0.25 Ám | 10 Áin | Right Angle Through Hole | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Copper Alloy | Gold | Female | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 35 | Green | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 70 | -40 C | 105 ░C | Cantilever | Dual | 0.25 Ám | 10 Áin | Through Hole | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Copper Alloy | Gold | Female | 4-40 Threaded Insert Top Mount Opening | 35 | Green | Non Specified - Dual Edge | 3.96 mm | 0.156 in |
