R8-32 Series
Manufacturer: APM Hexseal
Beta
⌘K
MACHINE SCREW PAN PHILLIPS 8-32
| Part | Thread Size | Length - Below Head | Length - Below Head | Length - Below Head | Type | Length - Overall [x] | Length - Overall [x] | Drive Type | Head Diameter | Head Diameter [diameter] | Material | Screw Head Type | Features | Head Height | Head Height | Length - Below Head [x] | Length - Below Head [x] | Length - Below Head [x] | Length - Overall | Length - Overall | Length - Below Head | Length - Below Head [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

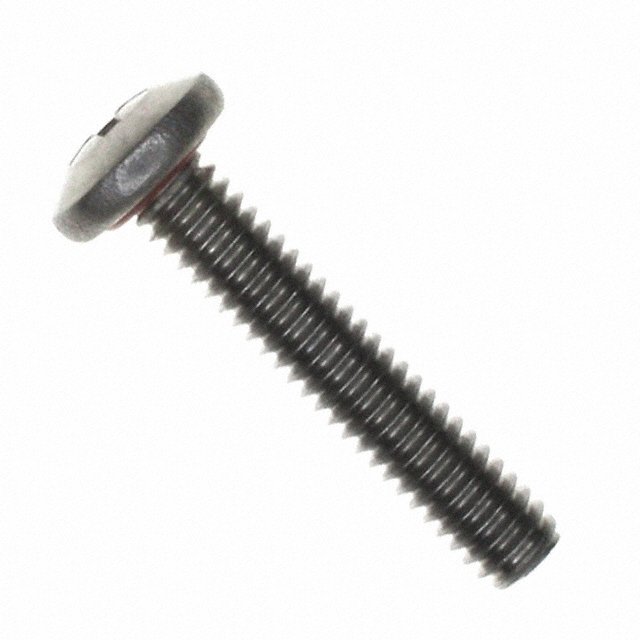

 APM Hexseal | #8-32 | 0.875 " | 0.875 " | 22.23 mm | Machine Screw | 25.15 mm | 0.99 in | Phillips | 8.81 mm | 0.347 in | Stainless Steel | Pan Head | Self Sealing | 0.115 " | 2.92 mm | |||||||
 APM Hexseal | #8-32 | 0.5 in | 0.5 in | 12.7 mm | Machine Screw | 15.62 mm | 0.615 in | Phillips | 8.81 mm | 0.347 in | Stainless Steel | Pan Head | Self Sealing | 0.115 " | 2.92 mm | |||||||
 APM Hexseal | #8-32 | Machine Screw | Phillips | 8.81 mm | 0.347 in | Stainless Steel | Pan Head | Self Sealing | 0.115 " | 2.92 mm | 0.75 in | 19.05 mm | 0.75 in | 21.97 mm | 0.865 in | |||||||
 APM Hexseal | #8-32 | 0.313 in | 0.3125 in | 7.95 mm | Machine Screw | Phillips | 8.81 mm | 0.347 in | Stainless Steel | Pan Head | Self Sealing | 0.115 " | 2.92 mm | 10.87 mm | 0.428 " | |||||||

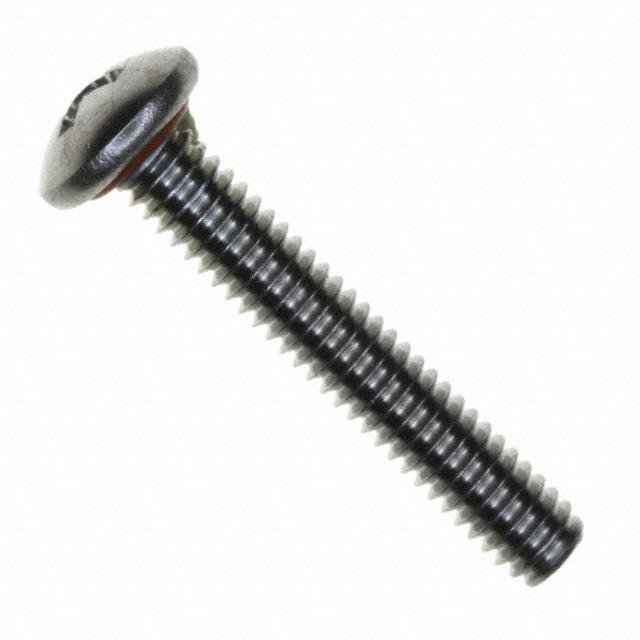

 APM Hexseal | #8-32 | 25.4 mm | Machine Screw | 28.32 mm | 1.115 in | Phillips | 8.81 mm | 0.347 in | Stainless Steel | Pan Head | Self Sealing | 0.115 " | 2.92 mm | 1 in | ||||||||

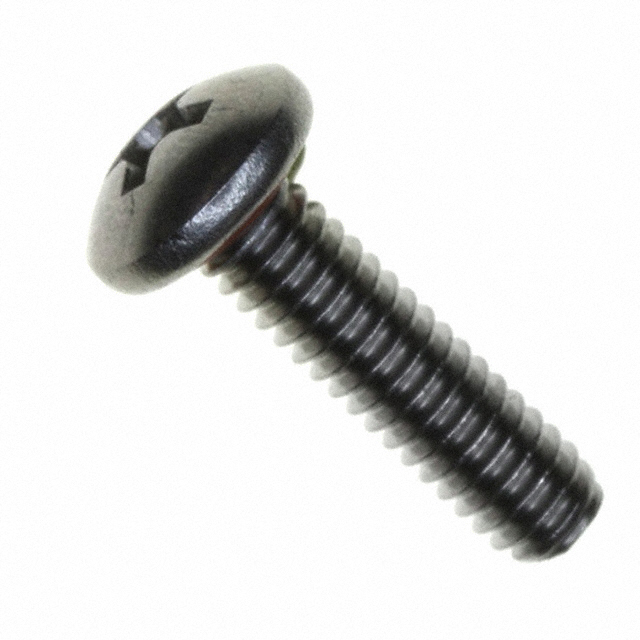

 APM Hexseal | #8-32 | 0.625 in | 15.88 mm | 0.625 in | Machine Screw | 18.8 mm | 0.74 in | Phillips | 8.81 mm | 0.347 in | Stainless Steel | Pan Head | Self Sealing | 0.115 " | 2.92 mm | |||||||

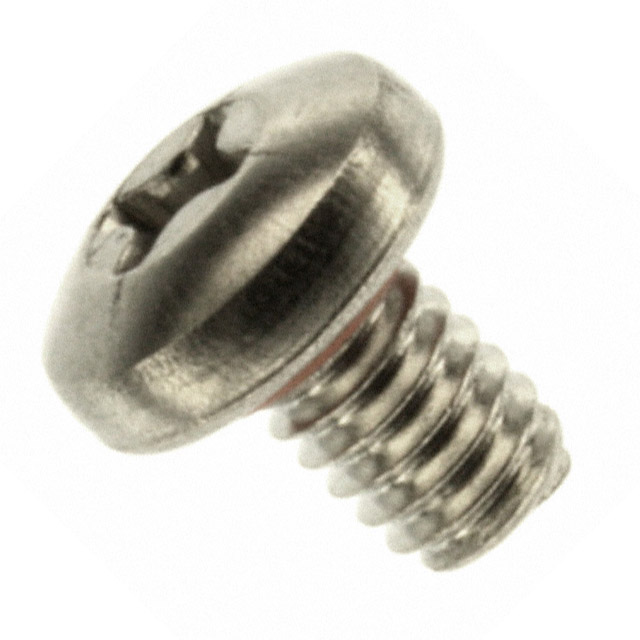

 APM Hexseal | #8-32 | Machine Screw | 9.27 mm | 0.365 in | Phillips | 8.81 mm | 0.347 in | Stainless Steel | Pan Head | Self Sealing | 0.115 " | 2.92 mm | 0.25 in | 6.35 mm | 1/4 | |||||||

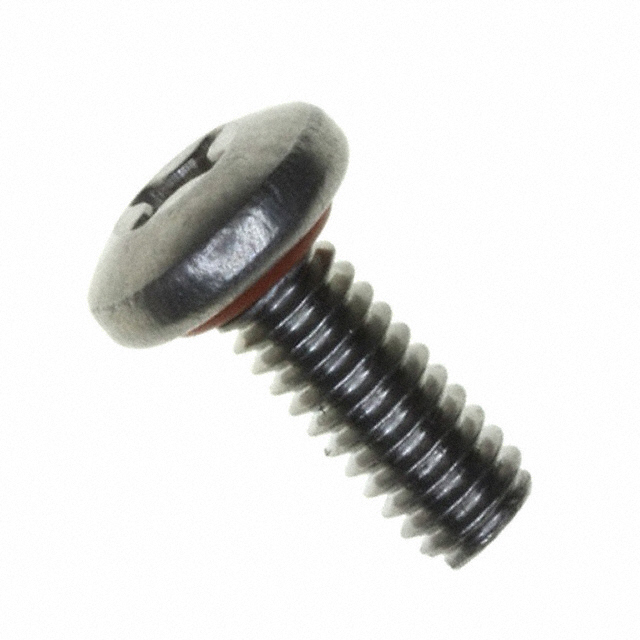

 APM Hexseal | #8-32 | 0.4375 " | Machine Screw | 14.05 mm | 0.553 in | Phillips | 8.81 mm | 0.347 in | Stainless Steel | Pan Head | Self Sealing | 0.115 " | 2.92 mm | 0.438 " | ||||||||

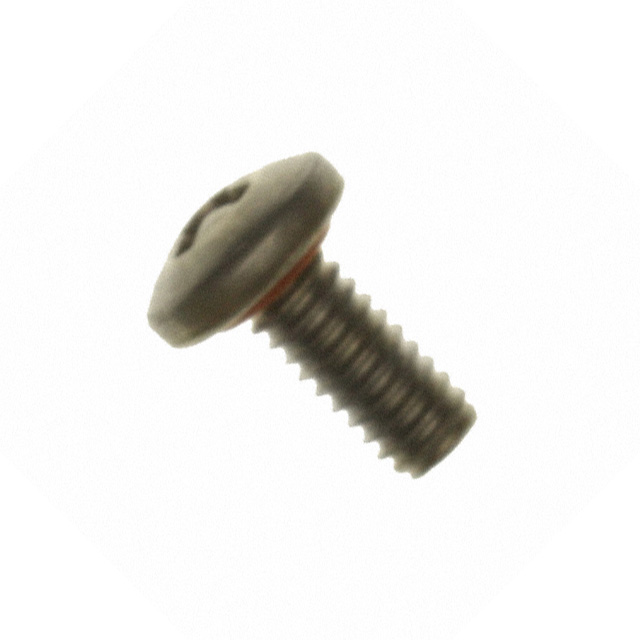

 APM Hexseal | #8-32 | 0.375 in | 0.375 in | 9.53 mm | Machine Screw | 12.45 mm | 0.49 " | Phillips | 8.81 mm | 0.347 in | Stainless Steel | Pan Head | Self Sealing | 0.115 " | 2.92 mm | |||||||
 APM Hexseal | #8-32 | 0.563 in | 0.5625 in | 14.3 mm | Machine Screw | Phillips | 8.81 mm | 0.347 in | Stainless Steel | Pan Head | Self Sealing | 0.115 " | 2.92 mm | 17.22 mm | 0.678 in |
