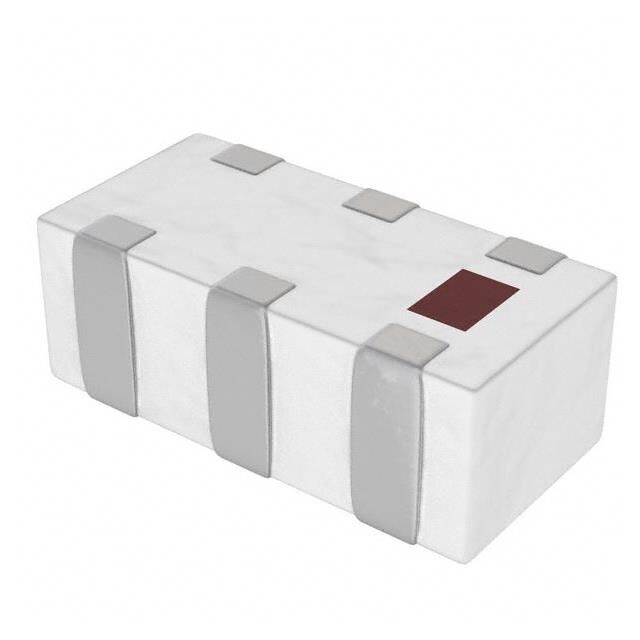

TCW4 Series
Manufacturer: Mini-Circuits
Beta
⌘K
RF XFMR / SURF MT / ROHS
| Part | Frequency Range [Max] | Frequency Range [Min] | Package / Case | Package / Case | Insertion Loss (Max) [Max] | Return Loss (Min) [Min] | Phase Difference | Impedance - Unbalanced/Balanced [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|
 Mini-Circuits | 5.8 GHz | 5 GHz | 6 PC Pad | 0603 (1608 Metric) | 1.7 dB | 9.5 dB | 13 ° | 1:4 | Surface Mount |
 Mini-Circuits | 2600 MHz | 2.3 GHz | 6 PC Pad | 0603 (1608 Metric) | 1.7 dB | 9.5 dB | 13 ° | 1:4 | Surface Mount |
